Harmonic Balancer - Crankshaft Pulley: Service and Repair

REPLACEMENT

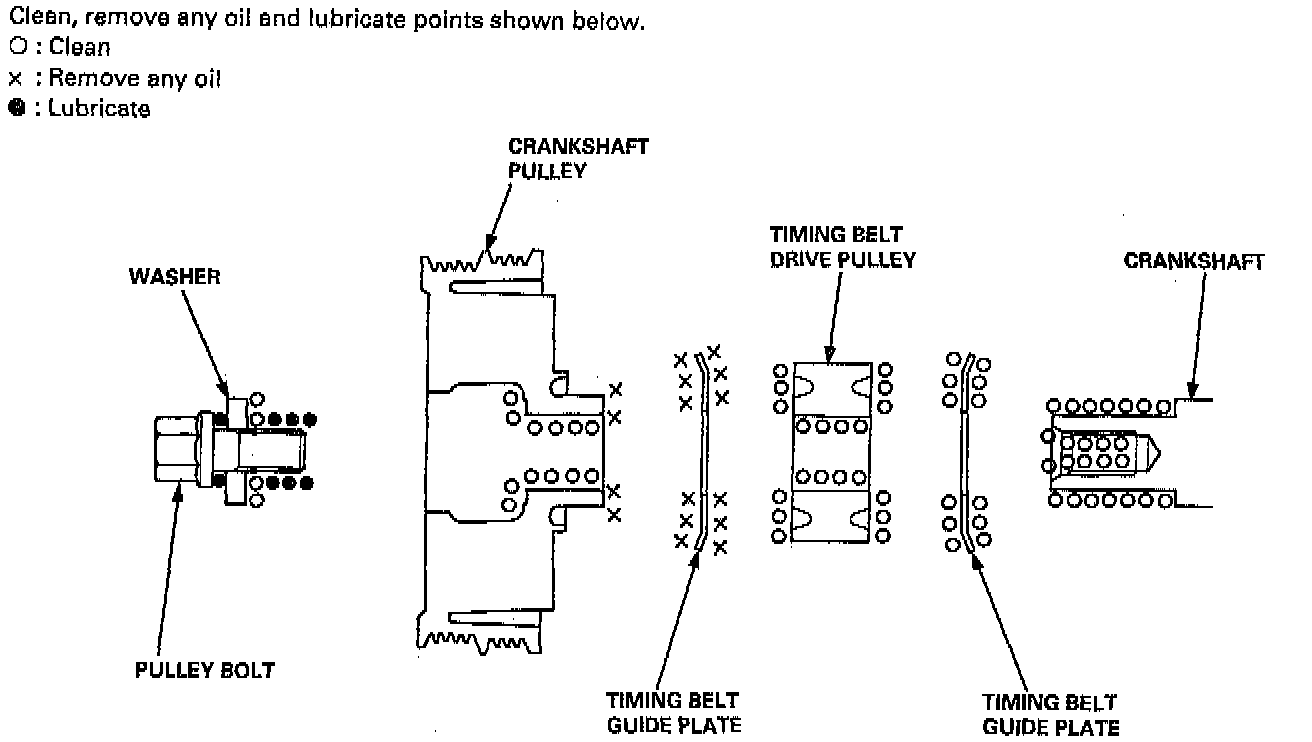

When installing and tightening the pulley, follow the procedure.

Crankshaft pulley bolt size and torque value:
16 x 1.5 mm
245 Nm (181 Ft. lbs.)





NOTE:
- Do not use an impact wrench when installing.

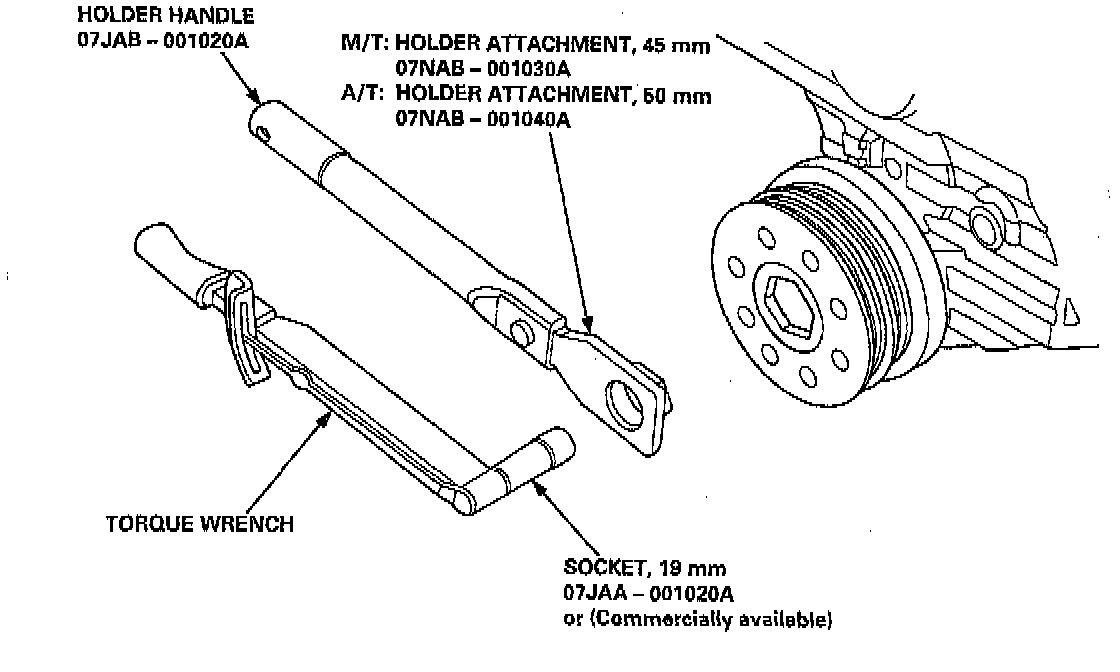

- Make sure the handle thumb screw aligns with the hole in the attachment.
