Engine Compartment Fan Motor Test (A/T)

Engine Compartment Fan Motor Test (A/T):

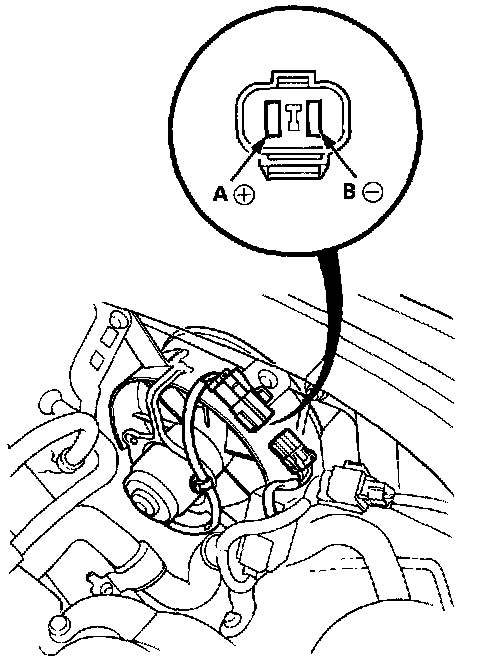

1. Disconnect the 2P connector from the engine compartment fan motor.
2. Test the motor by connecting battery power to the A terminal, and ground to the B terminal.
3. If the motor fails to run or does not run smoothly, replace it.
