NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

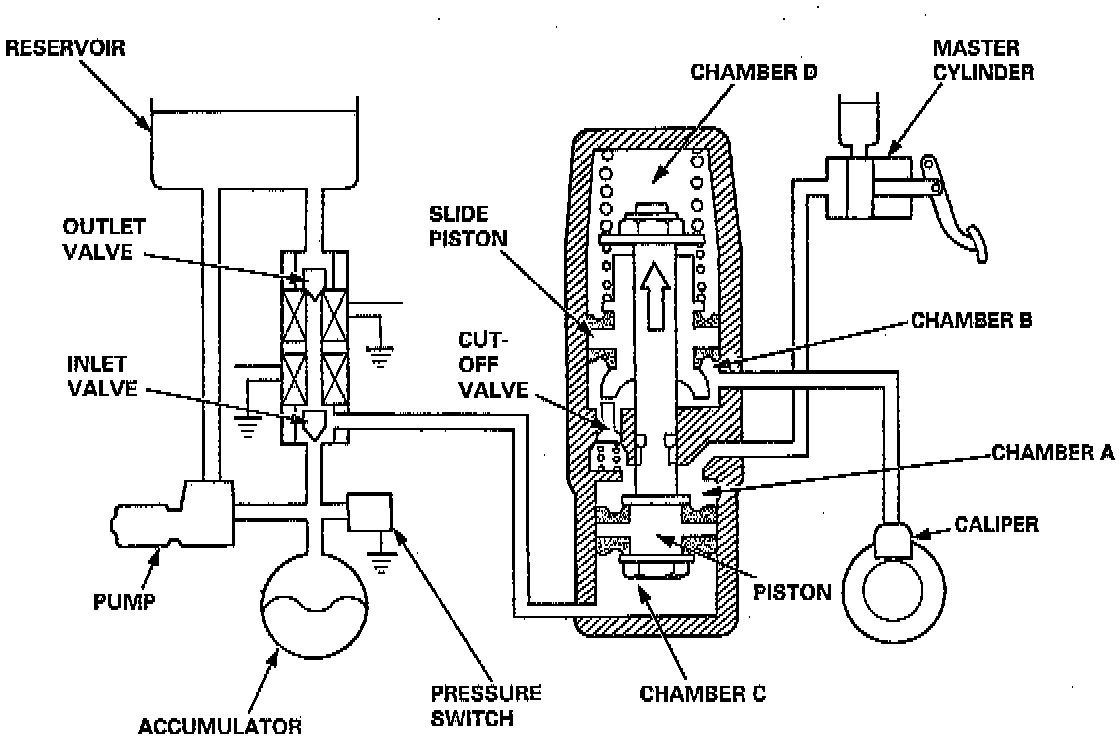

Fluid Flow During Base Braking:
Fluid Flow During ABS Assisted Braking:
