NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Clutch, A/T
Clutch, A/T

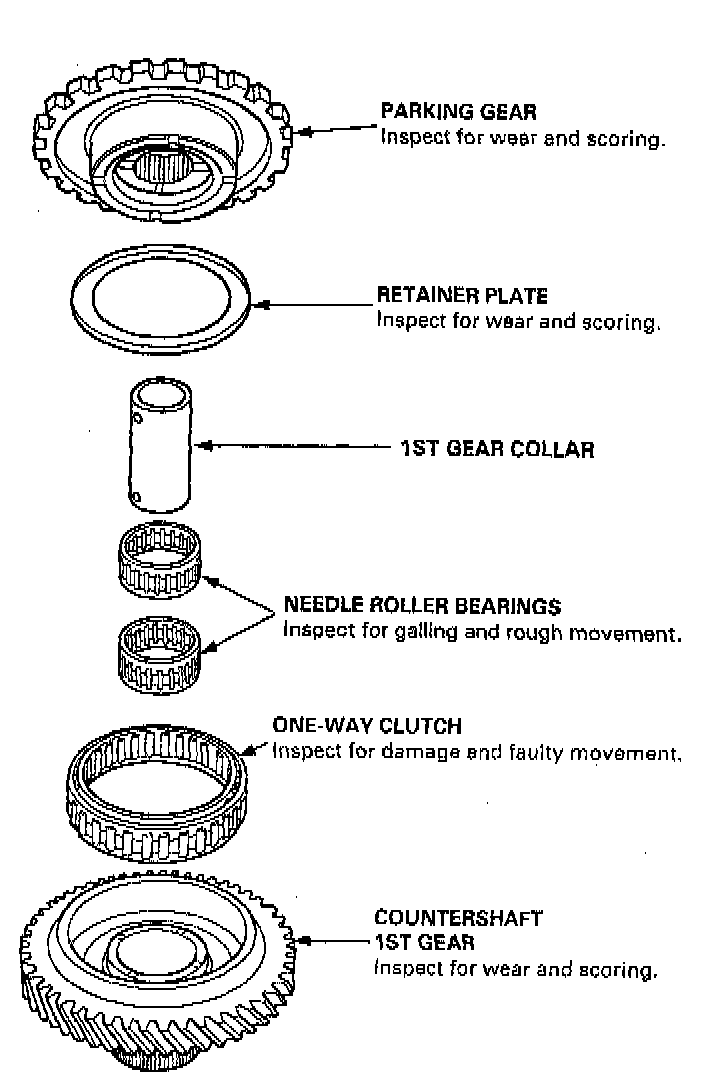

One-way Clutch/Parking Gear:

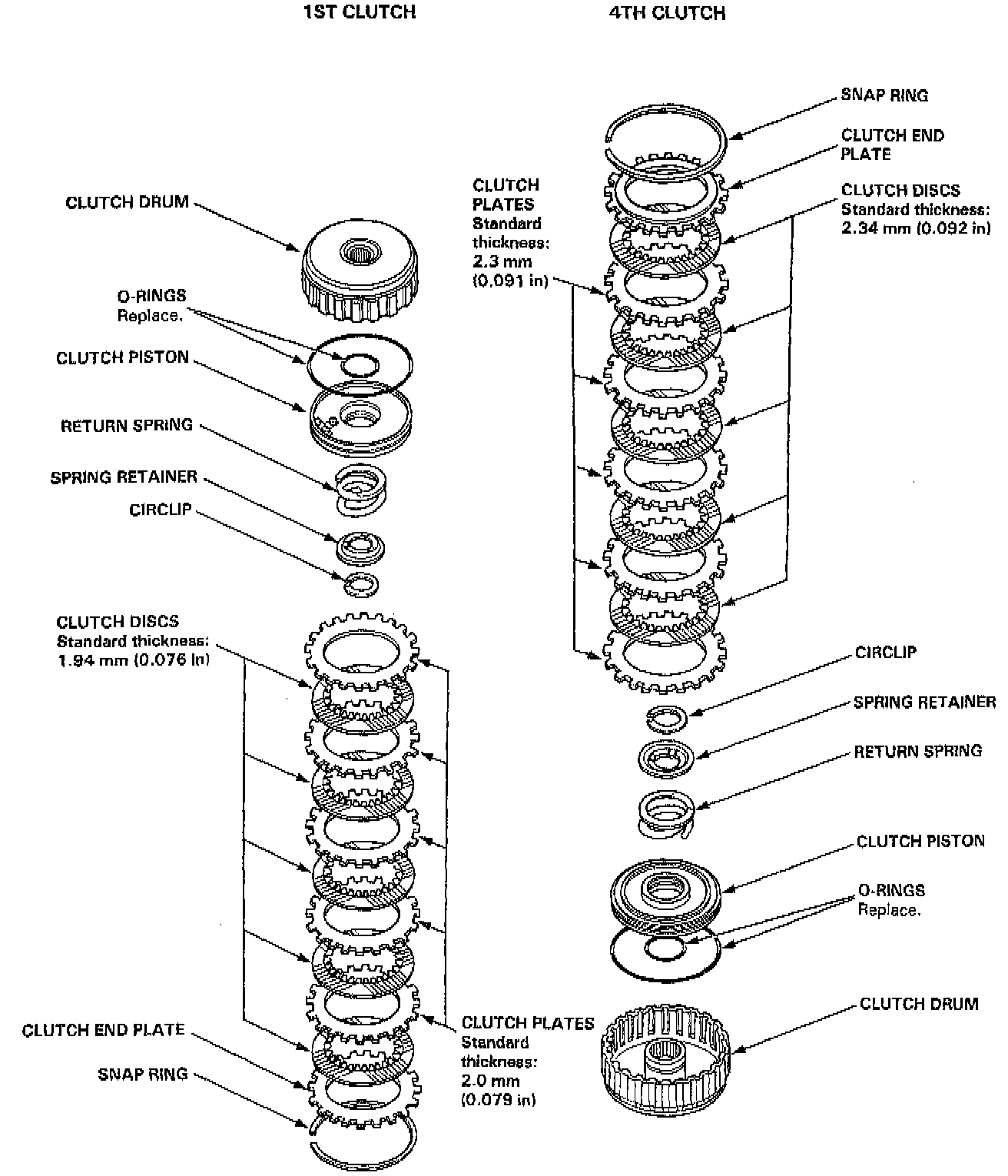

1st/4th Clutch Assembly:

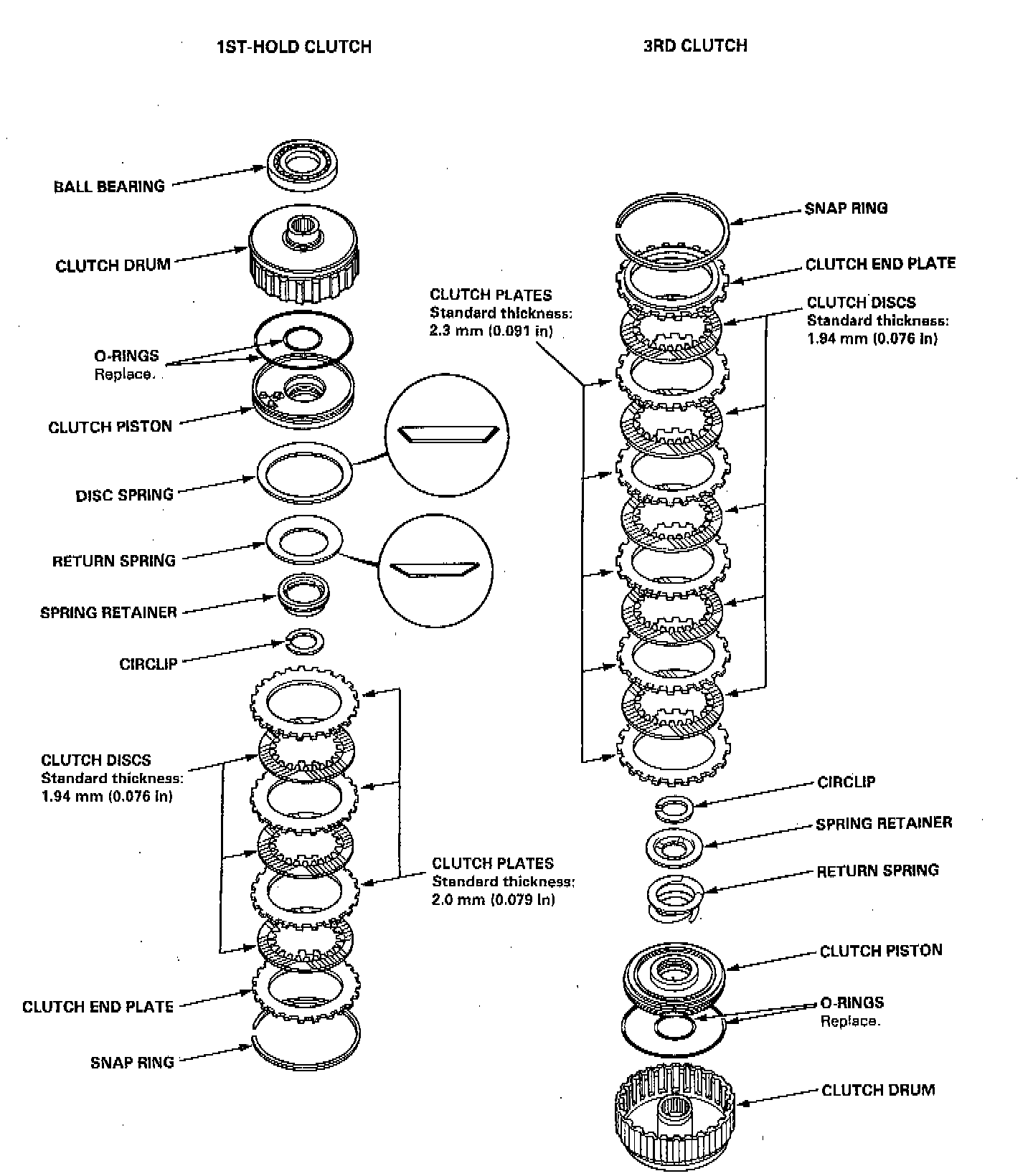

1st-Hold/3rd Clutch Assembly:

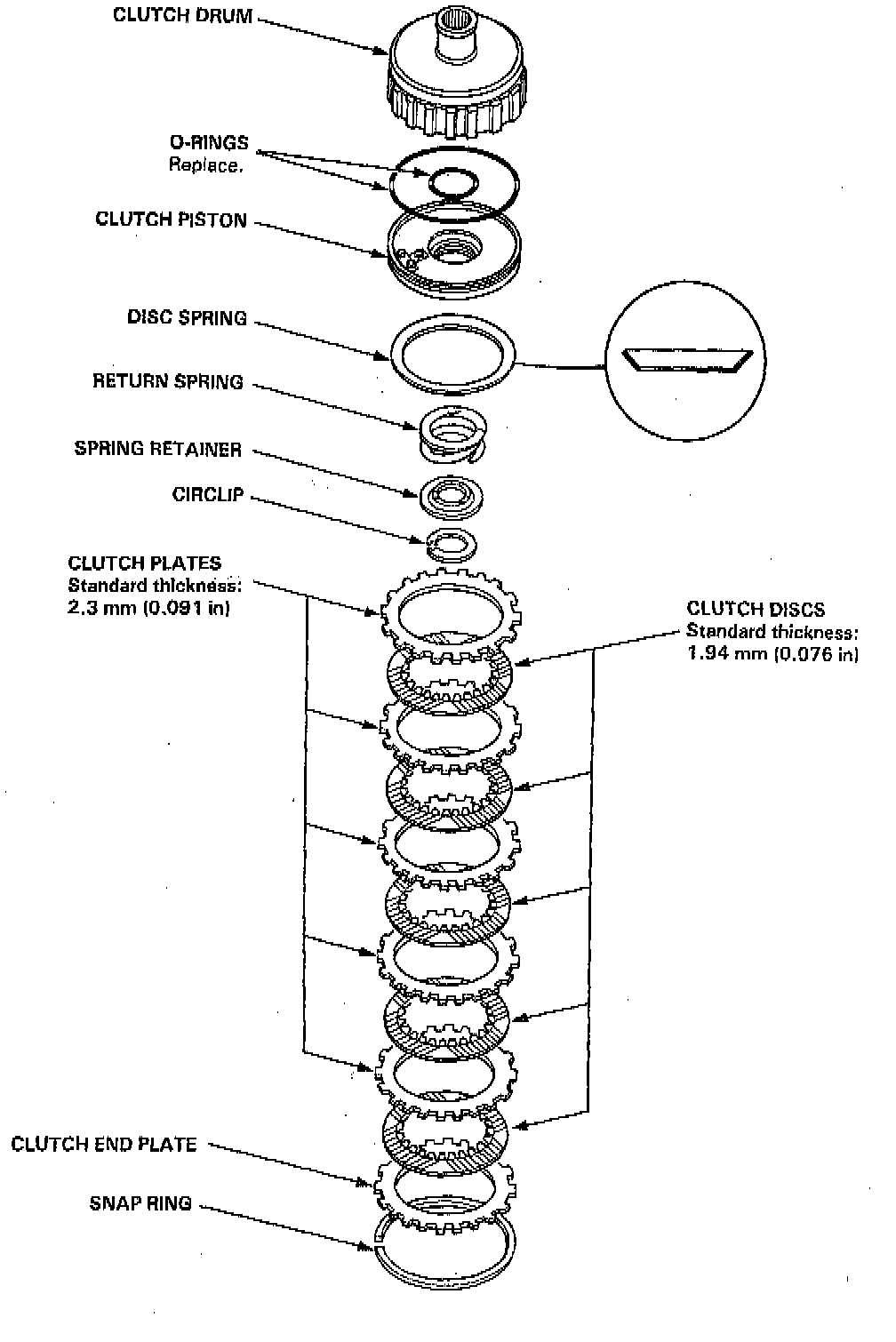

2nd Clutch Assembly:
