Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Entry Light Timer System

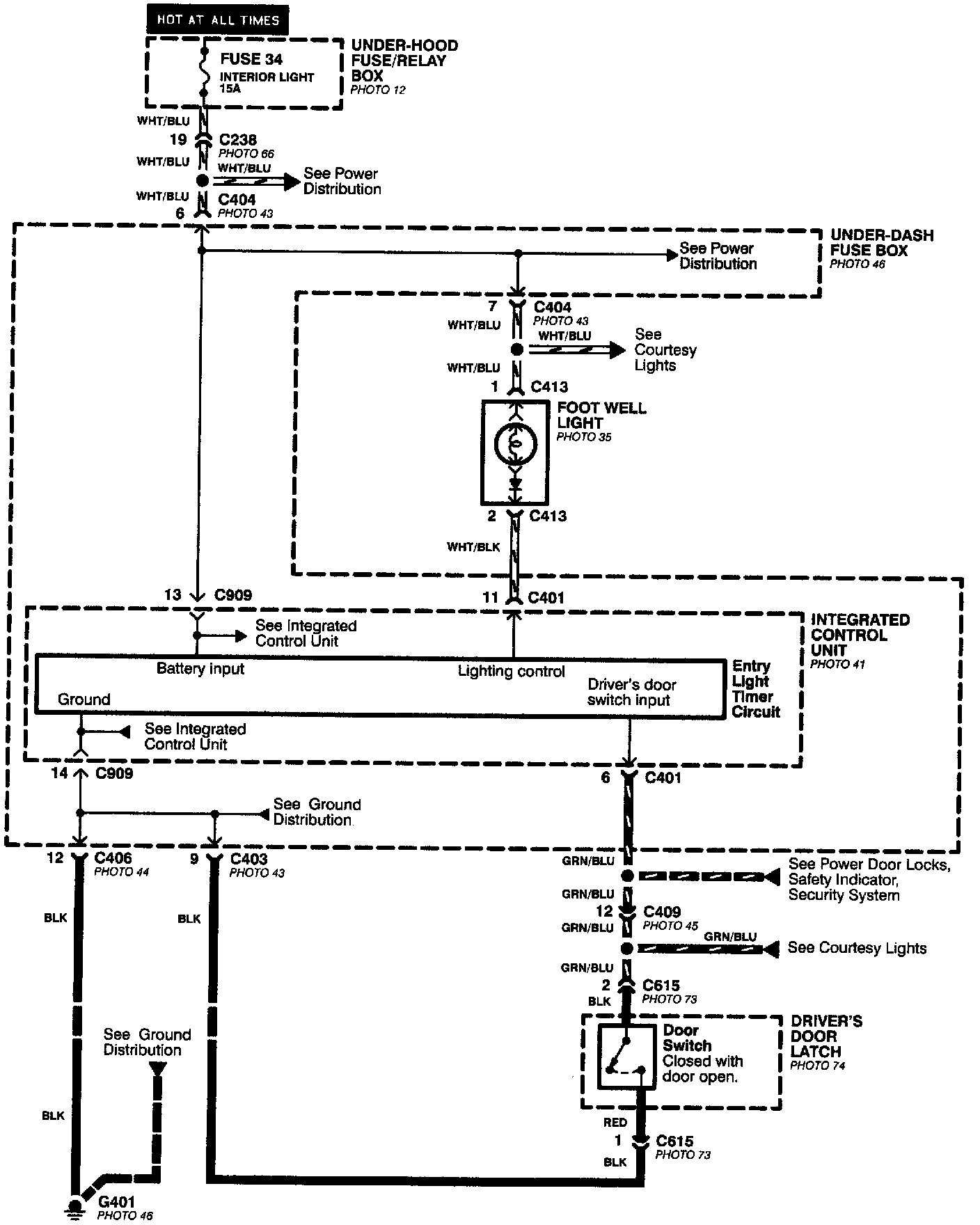

Entry Light Timer System

Entry Light Timer System:
