Acura
>>
1999
>>
NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
>>
With Removable Roof
With Removable Roof

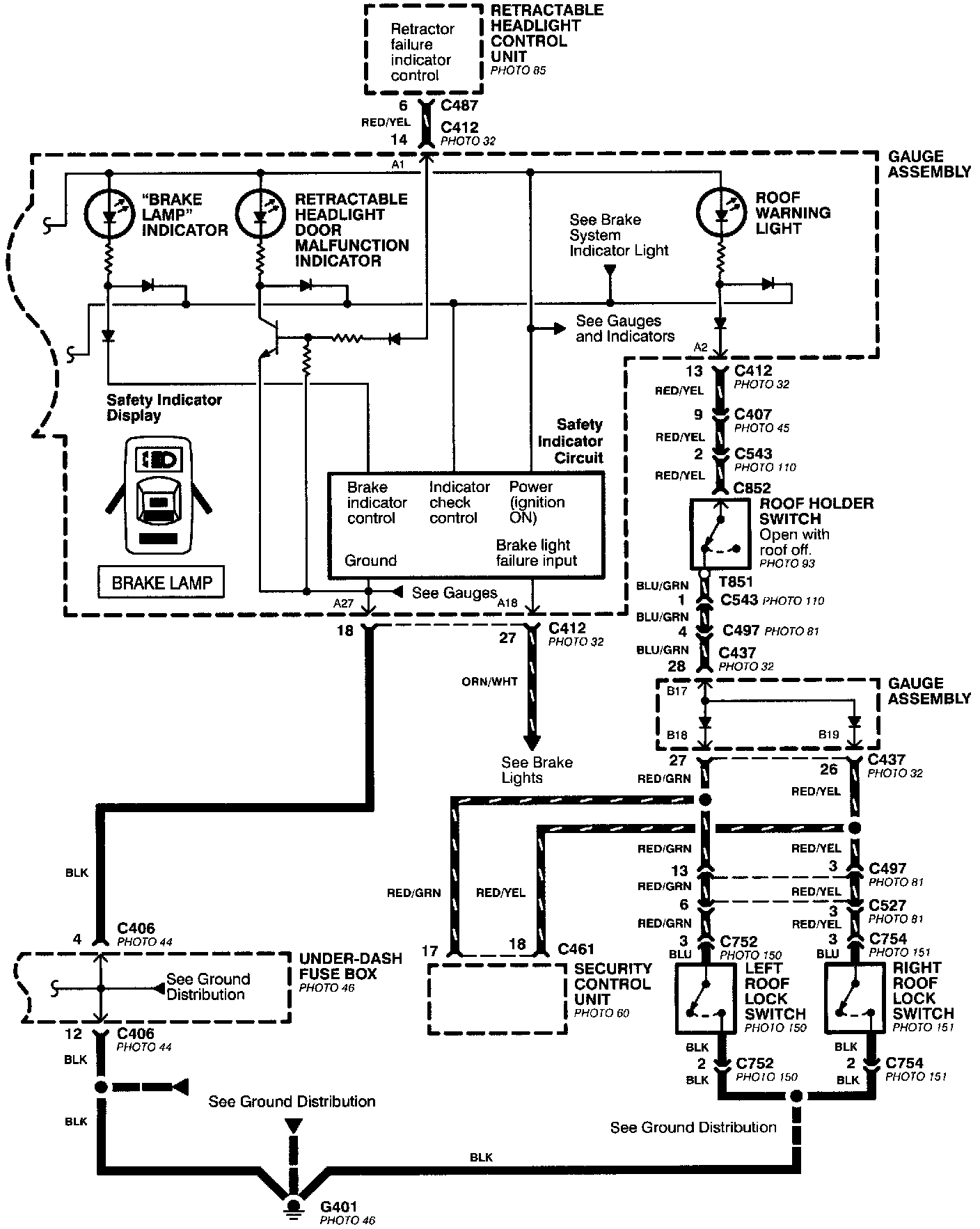

Safety Indicator - With Removable Roof (Part 1 Of 2):

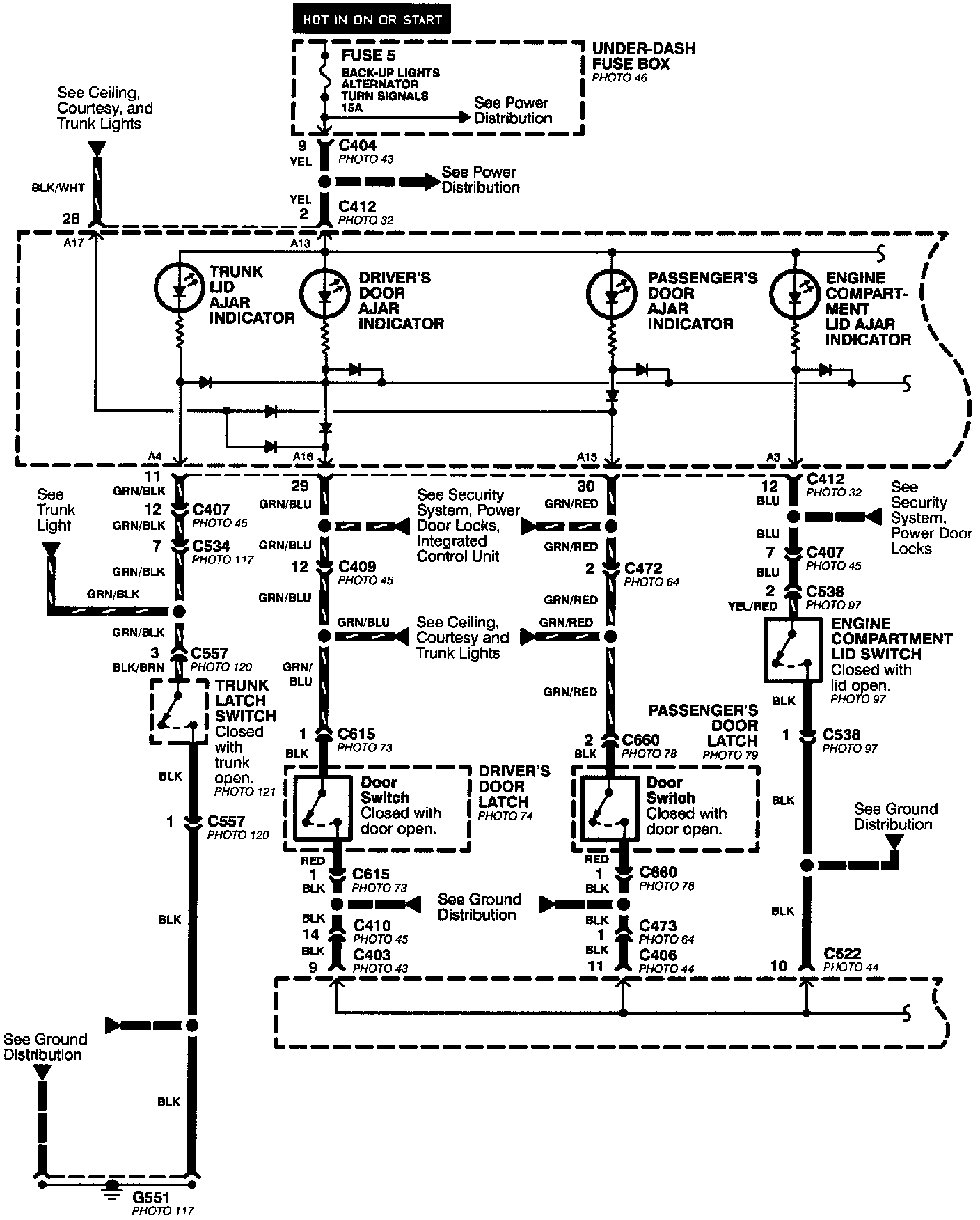

Safety Indicator - With Removable Roof (Part 2 Of 2):
