Anti-Lock Brake System (ABS)

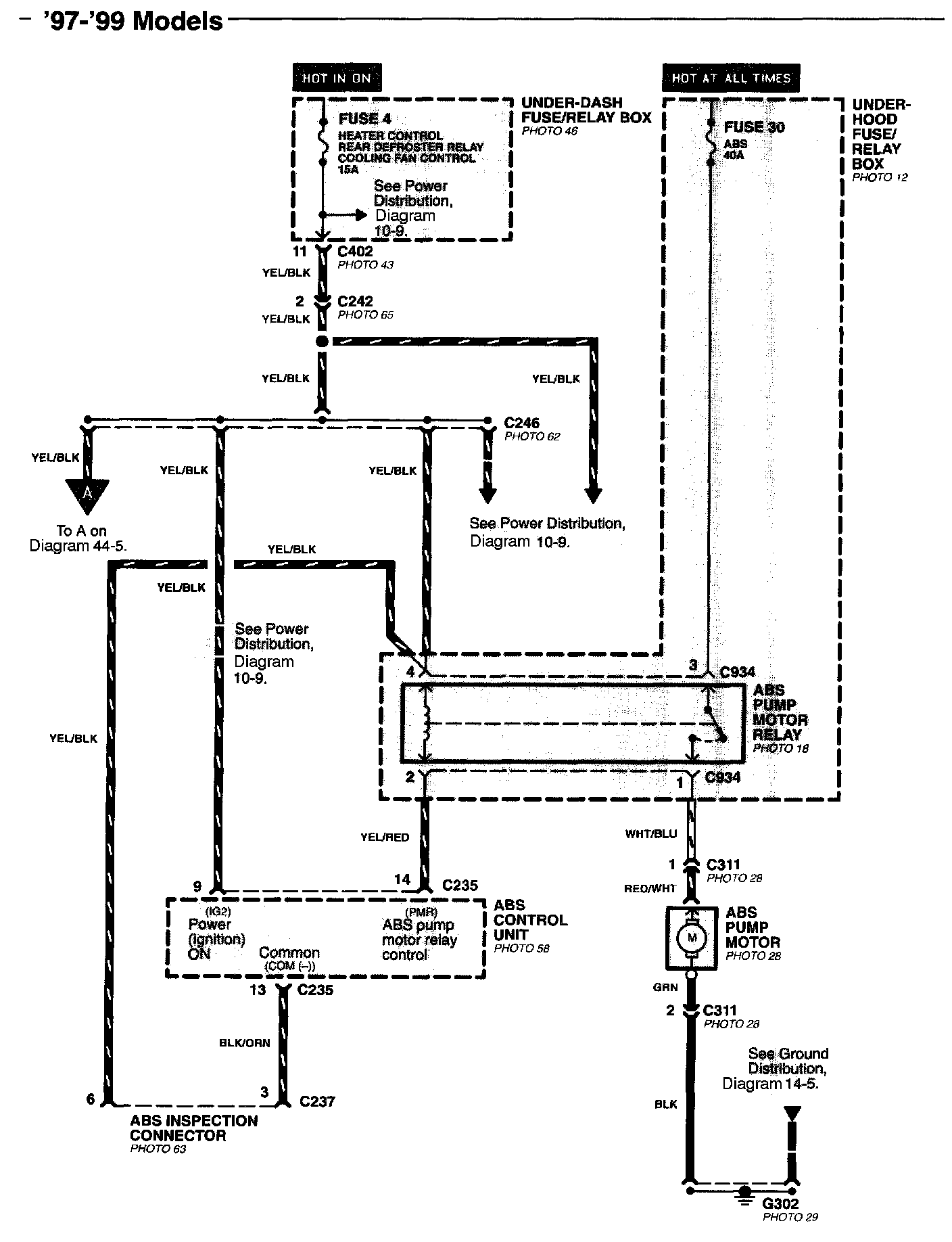

Diagram 44-0 ('97-'99 Models):

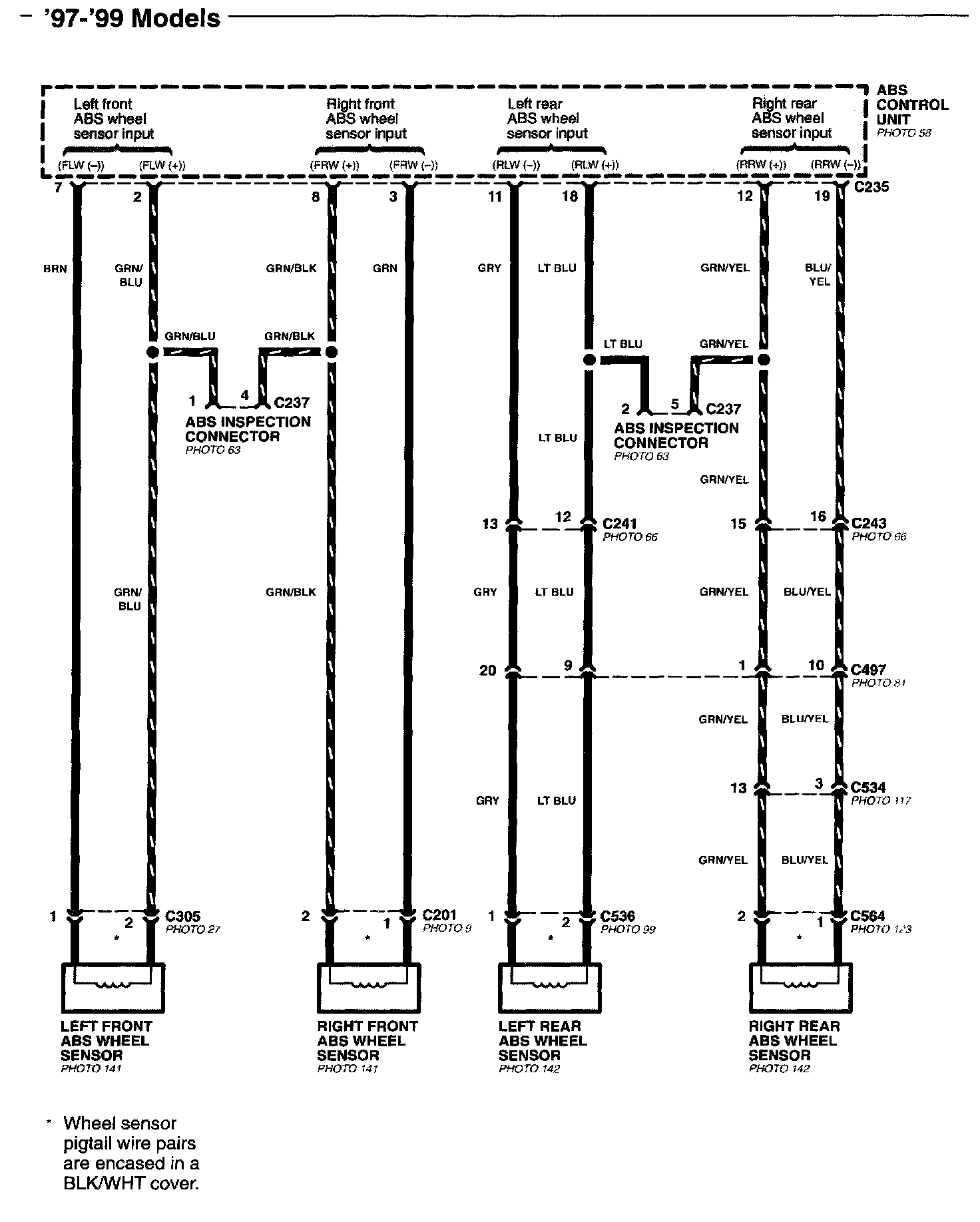

Diagram 44-1 ('97-'99 Models):

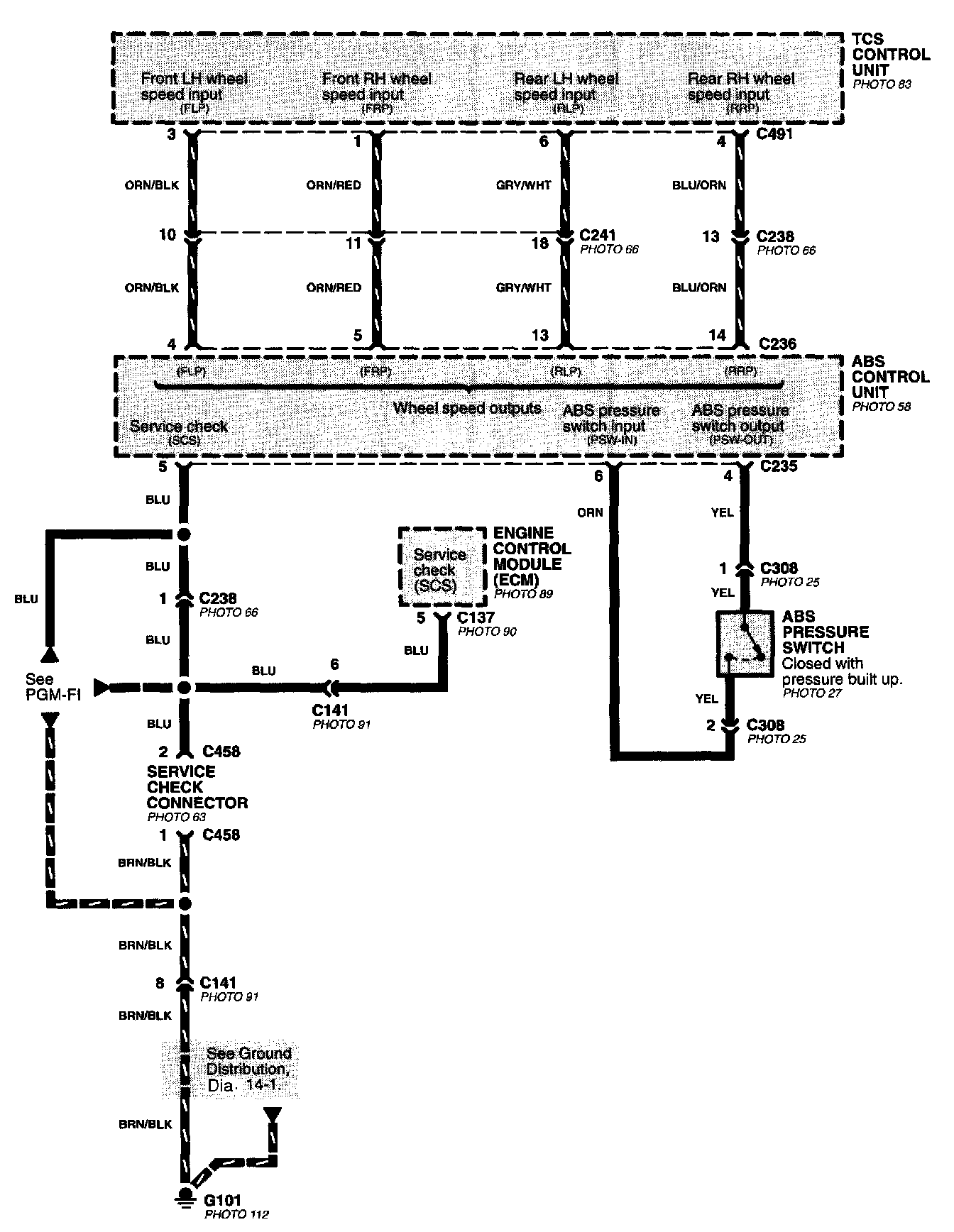

Diagram 44-2 ('97-'99 Models):

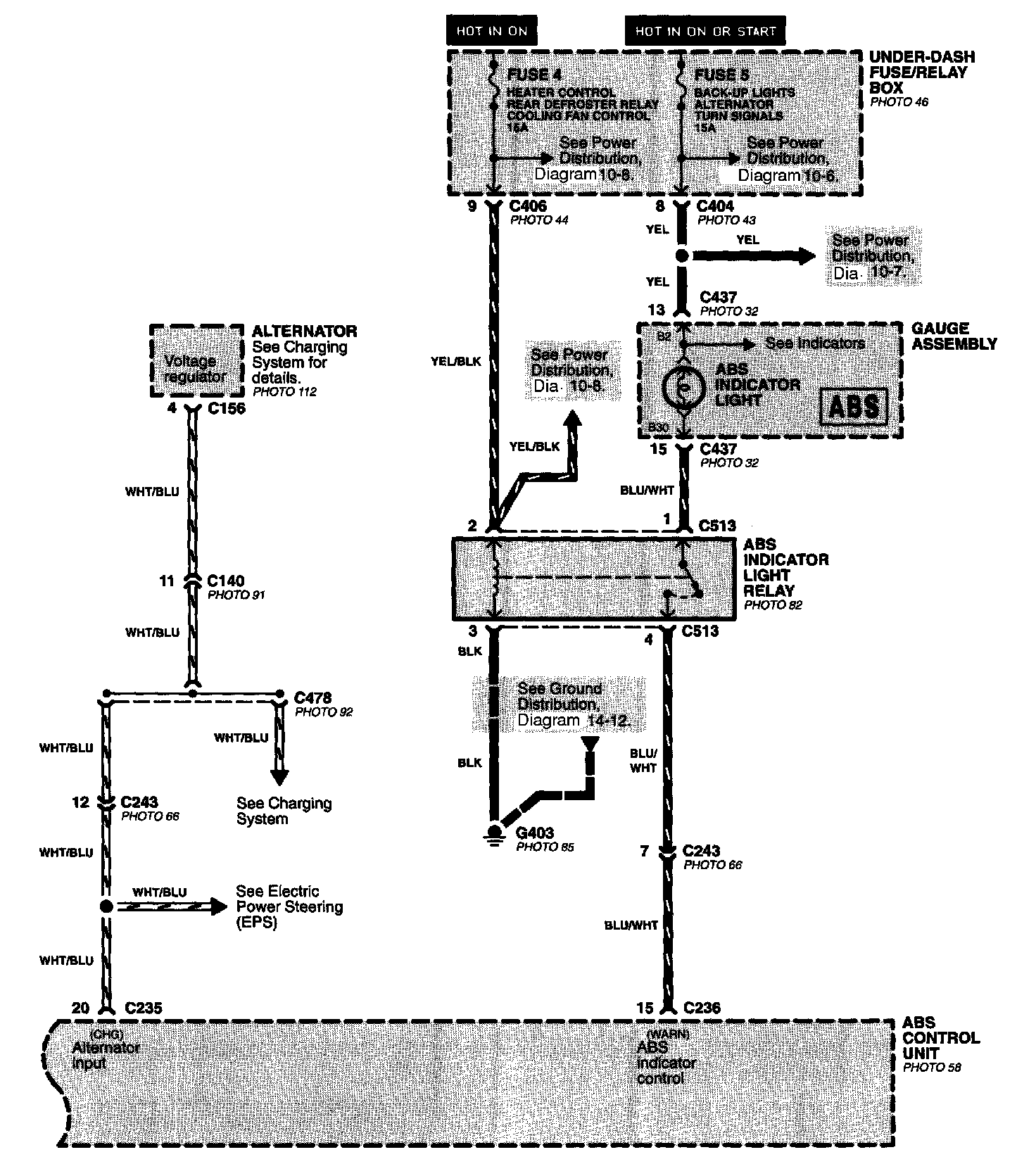

Diagram 44-3 ('97-'99 Models):

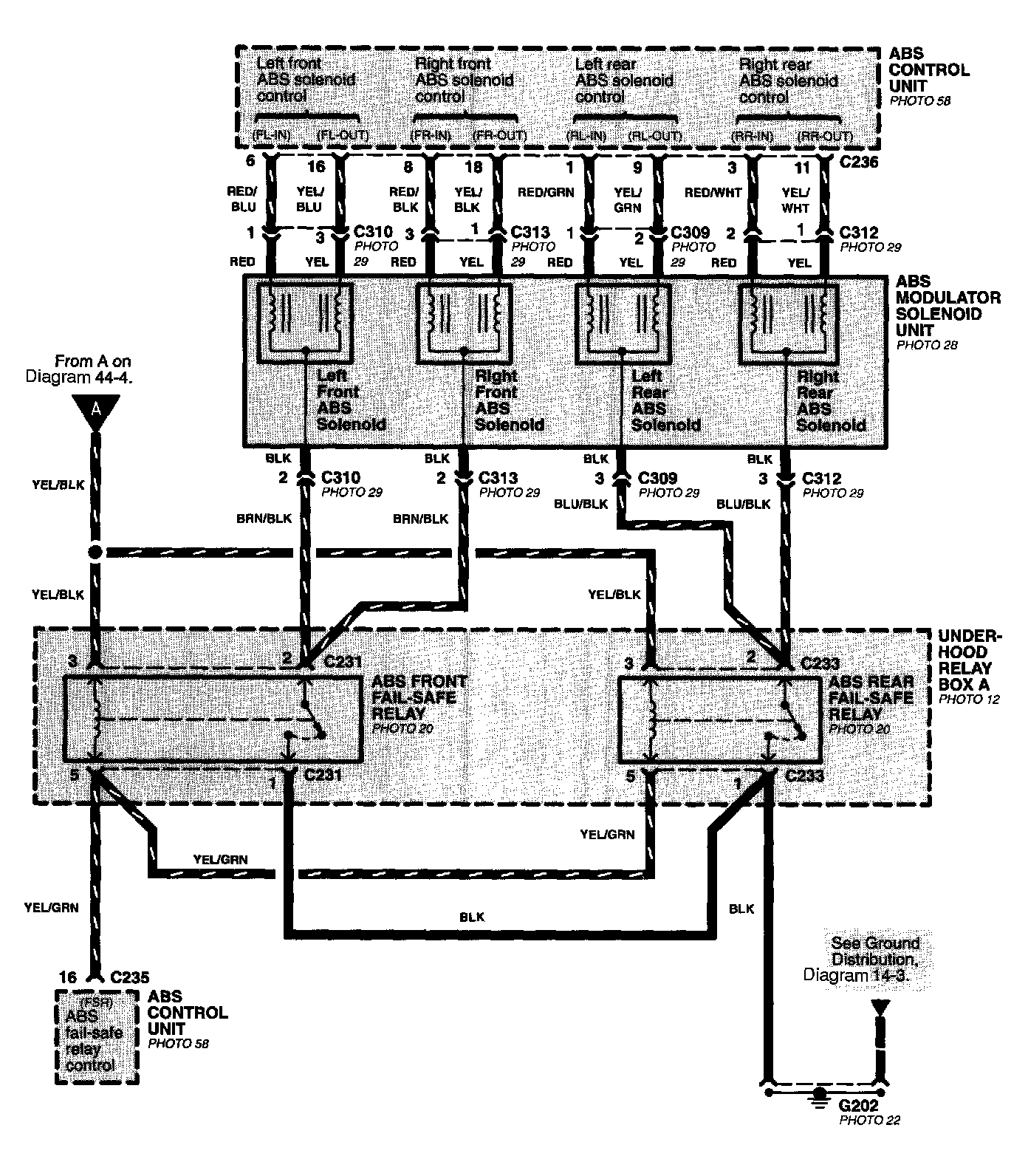

Diagram 44-4 ('97-'99 Models):

Diagram 44-5 ('97-'99 Models):

Diagram 44-6 ('97-'99 Models):

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By Connector Number
