Rear

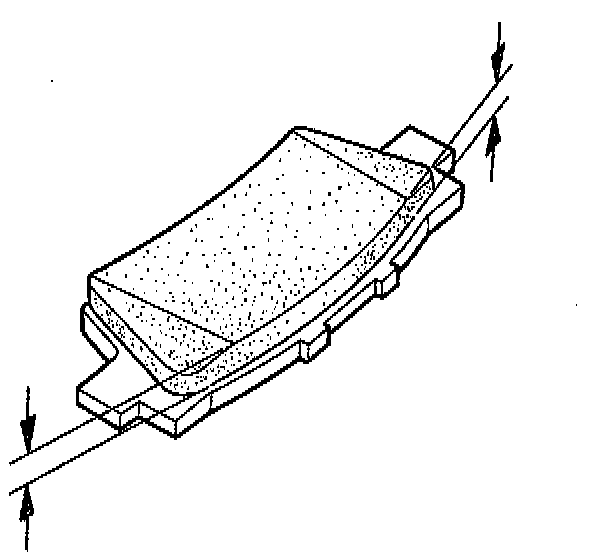

- Using vernier calipers, measure the thickness of each brake pad lining.

Brake Pad Thickness:
Standard: 9.5 mm (0.37 inch) max.
Service Limit: 1.6 mm (0.06 inch)

NOTE: Measurement does not include pad backing thickness.

- Clean the caliper thoroughly; remove any rust, and check for grooves and cracks.
