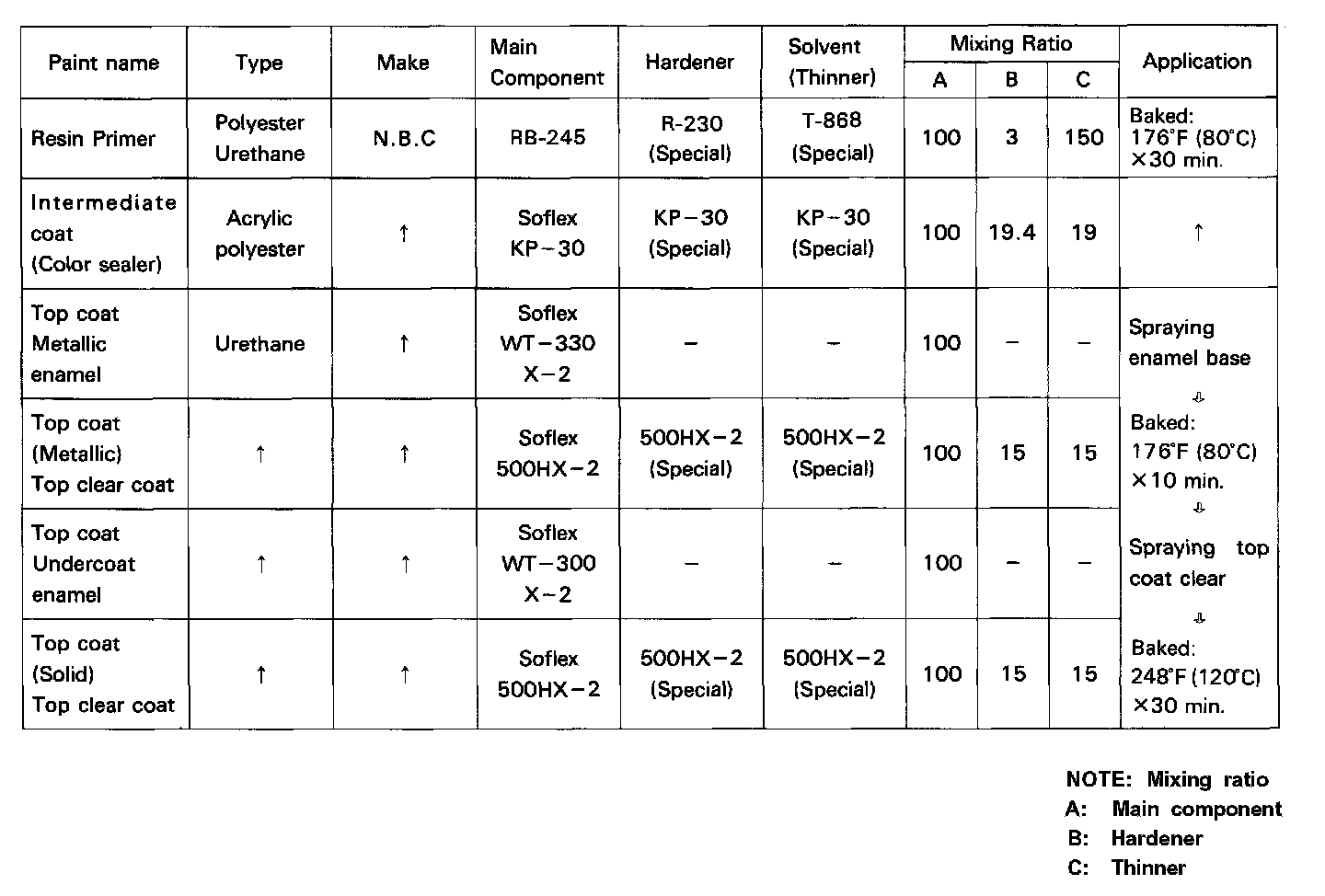

Mass Production Coating Table

Mass Production Coating Table (Reference)







For top coats to be applied to solid and metallic enamel base, use the same paints specified for the aluminum body (water soluble enamel) having the following properties:
- Ability to harden at high temperature 248 degrees F (120 degrees C)
- To be flexible enough at low temperature -77 degrees F (-25 degrees C) and free of harmful effects on resin base
- Resistance to abrasion or wear
