Power Mirror Motor: Service and Repair

1. Remove the mirror and actuator assembly from the housing.

Door Mirror Actuator Replacement:

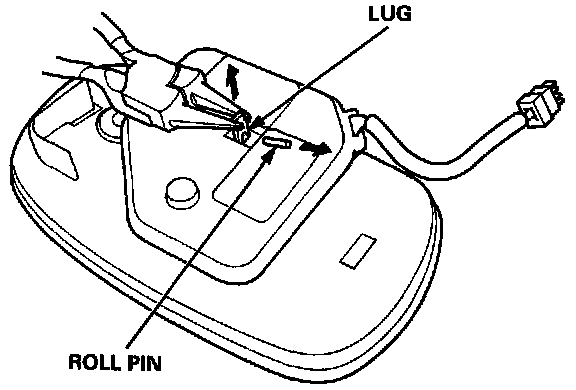

2. Place the mirror on a flat, padded surface. Pull up on the spring-loaded lug, and remove the roll pin.

Door Mirror Actuator Replacement:

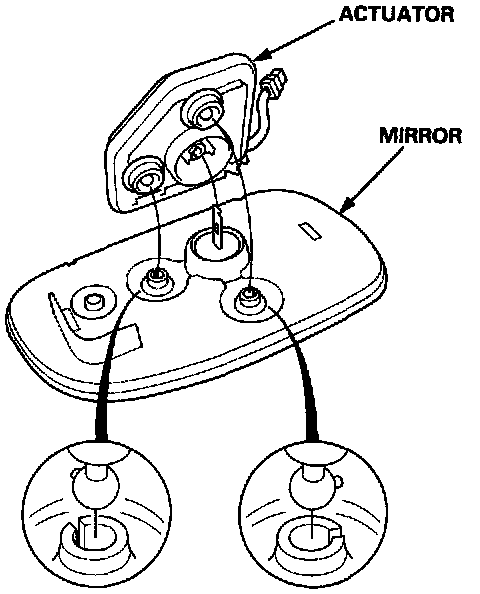

3. Pull the actuator away from the mirror. If the actuator shafts do not come off with the actuator, pry them out of their sockets.
4. Discard the actuator and shafts.
5. Set the new actuator on the back of the mirror with the lug protruding through the middle. Pull up on the lug, and install the roll pin removed in step 3.

Door Mirror Actuator Replacement:

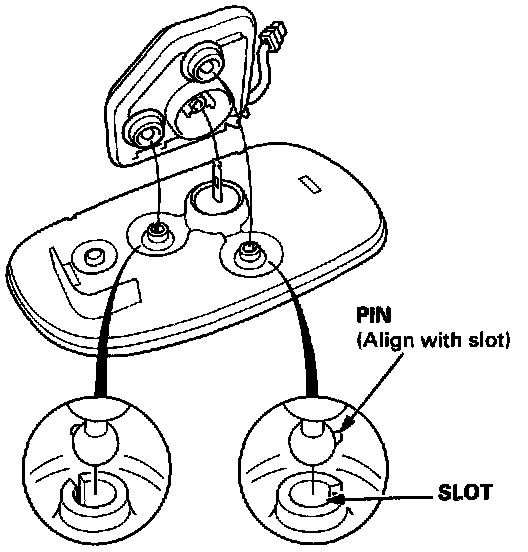

6. Press the actuator shafts into the sockets on the mirror.
7. Install the mirror and actuator assembly in the housing.
8. Test the mirror's operation.
