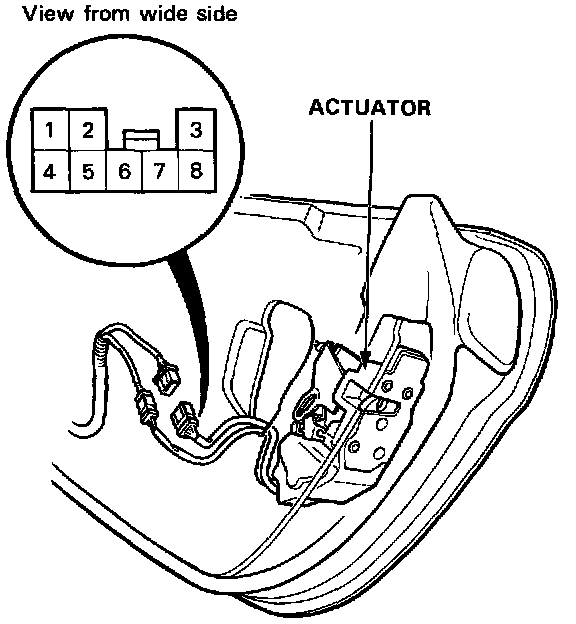

Passenger's Door Actuator Test

1. Remove the door panel.

Passenger's Door Actuator Test:

2. Disconnect the 8P connector from the actuator.
3. Test actuator operation:
LOCK: With battery power connected to the No. 7 terminal, connect ground to the No. B terminal momentarily.
UNLOCK: With battery power connected to the No. 8 terminal, connect ground to the No. 7 terminal momentarily.


CAUTION: To prevent damage to the motor, connect power and ground only momentarily.


4. If the actuator fails to operate properly, replace it.

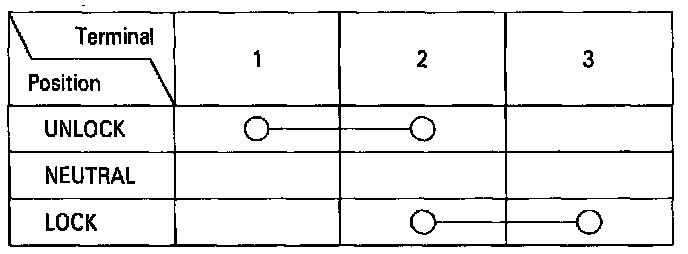

Key Cylinder Switch:

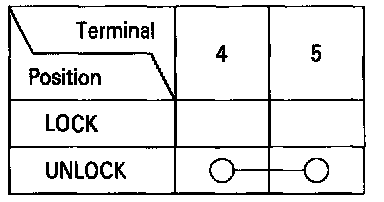

Door Lock Knob Switch:

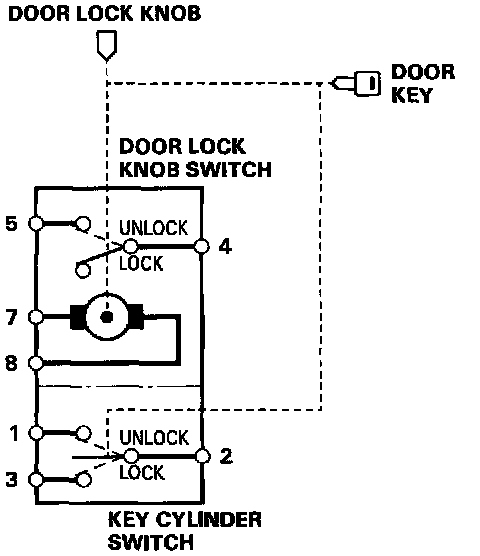

Connecting Terminals:

5. Check for continuity between the terminals in each switch position according to the table.
