Arm Rest: Service and Repair

Center Armrest

Replacement

CAUTION: When removing the center armrest inner panel, wrap the flat tip screwdriver with protective tape or a shop towel to prevent damage.






NOTE: Take care not to scratch the center armrest, dashboard and rear center trim panel.

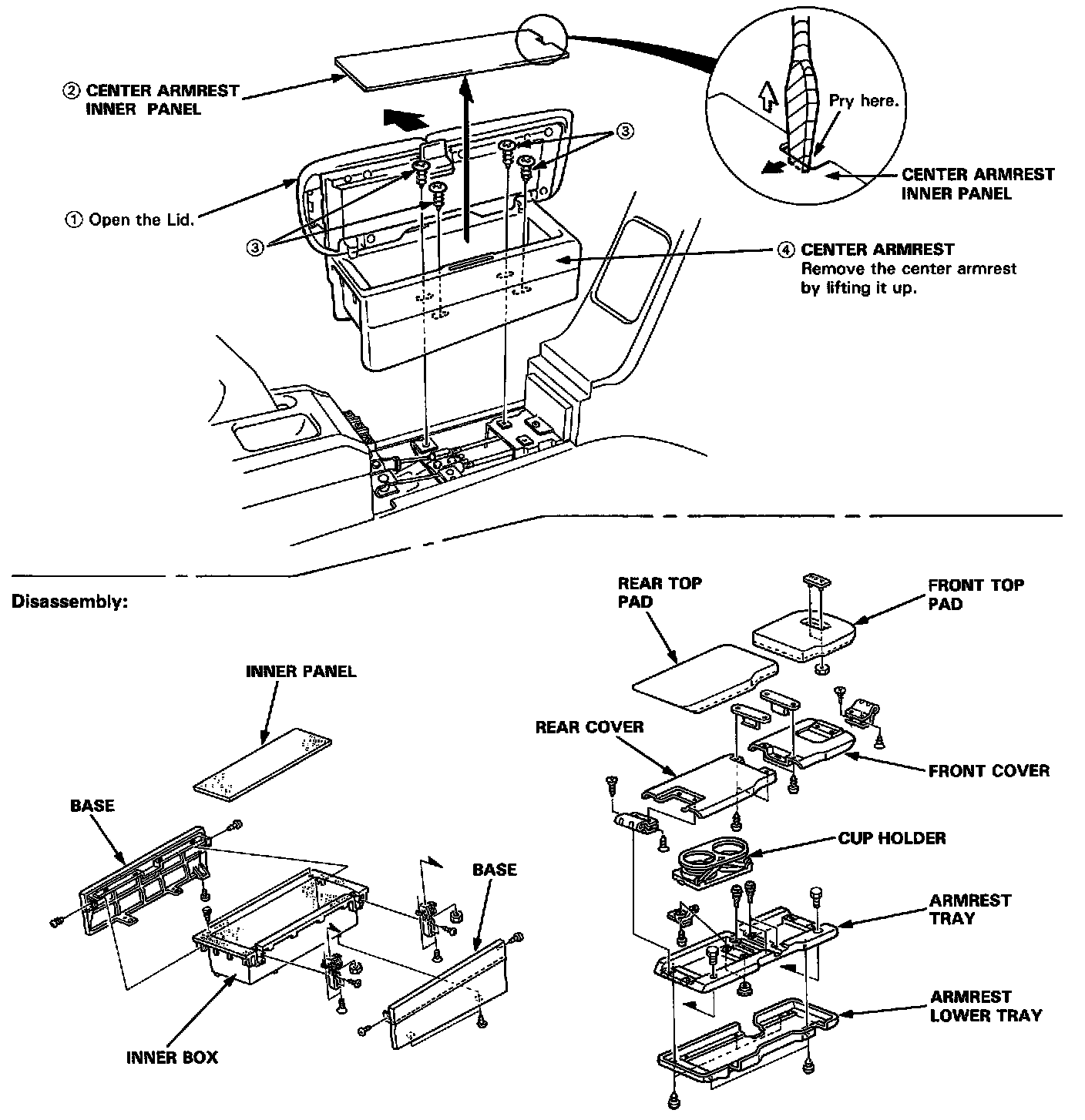

Disassemble in numbered sequence.

Installation is the reverse of the removal procedure.
