Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Front Subframe >> Service and Repair

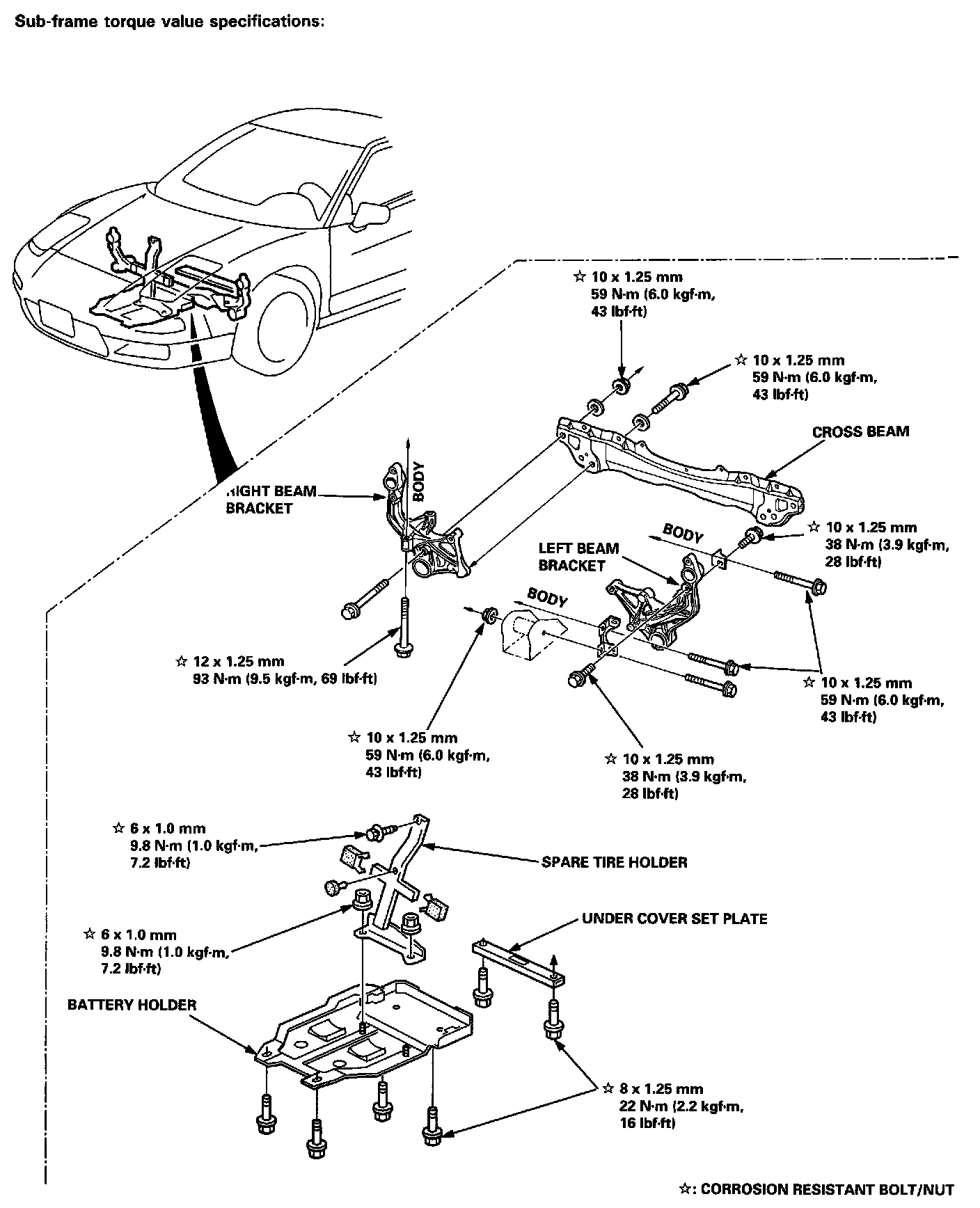

Front Subframe: Service and Repair

Front Sub-frame/Battery, Spare Tire Holder:
