Body Emblem: Service and Repair
Emblems
Installation

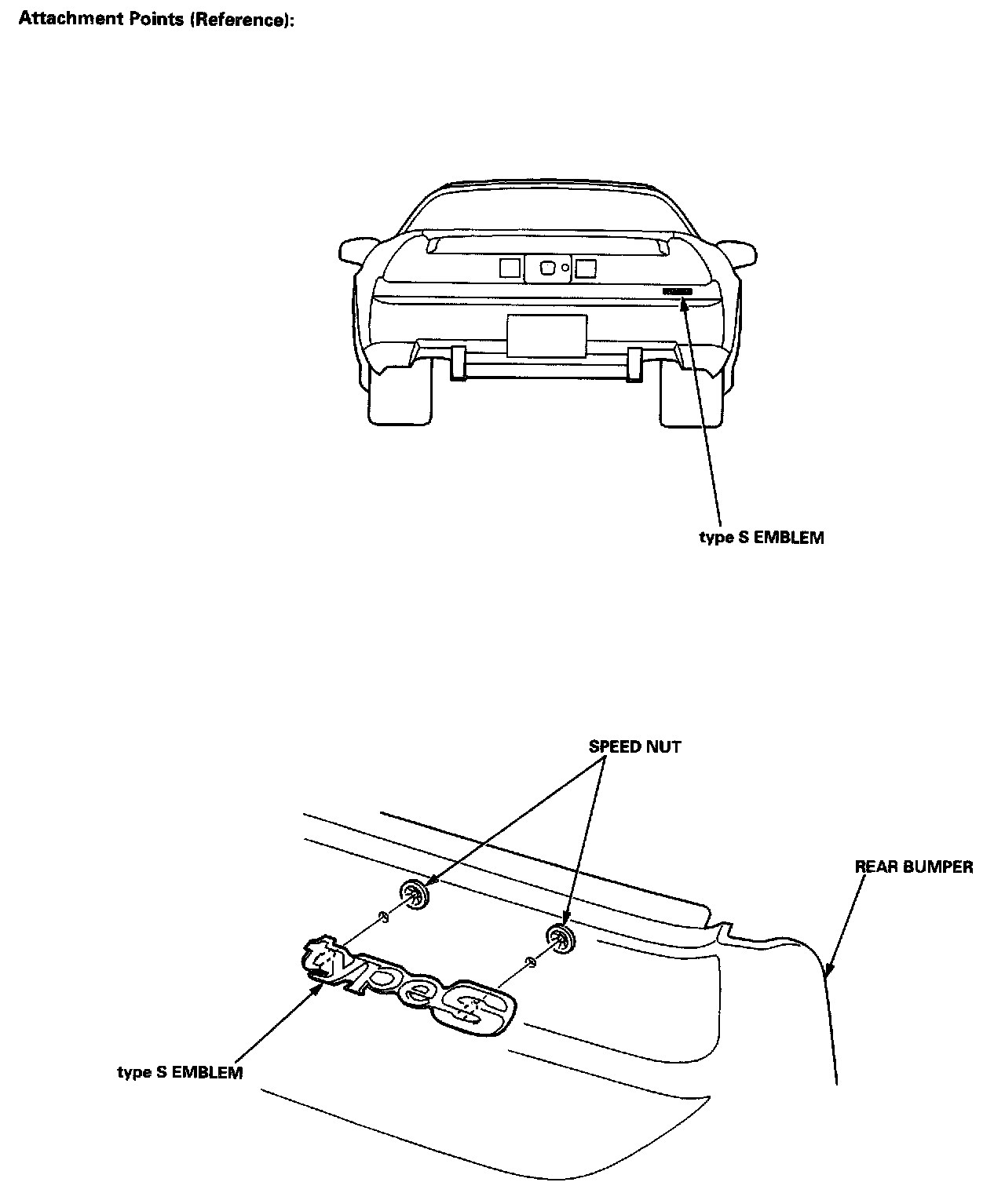

Install the emblem. Push the speed nuts on all the way so there is no space between the emblem and the rear
bumper
.
