Trunk / Liftgate Latch: Service and Repair

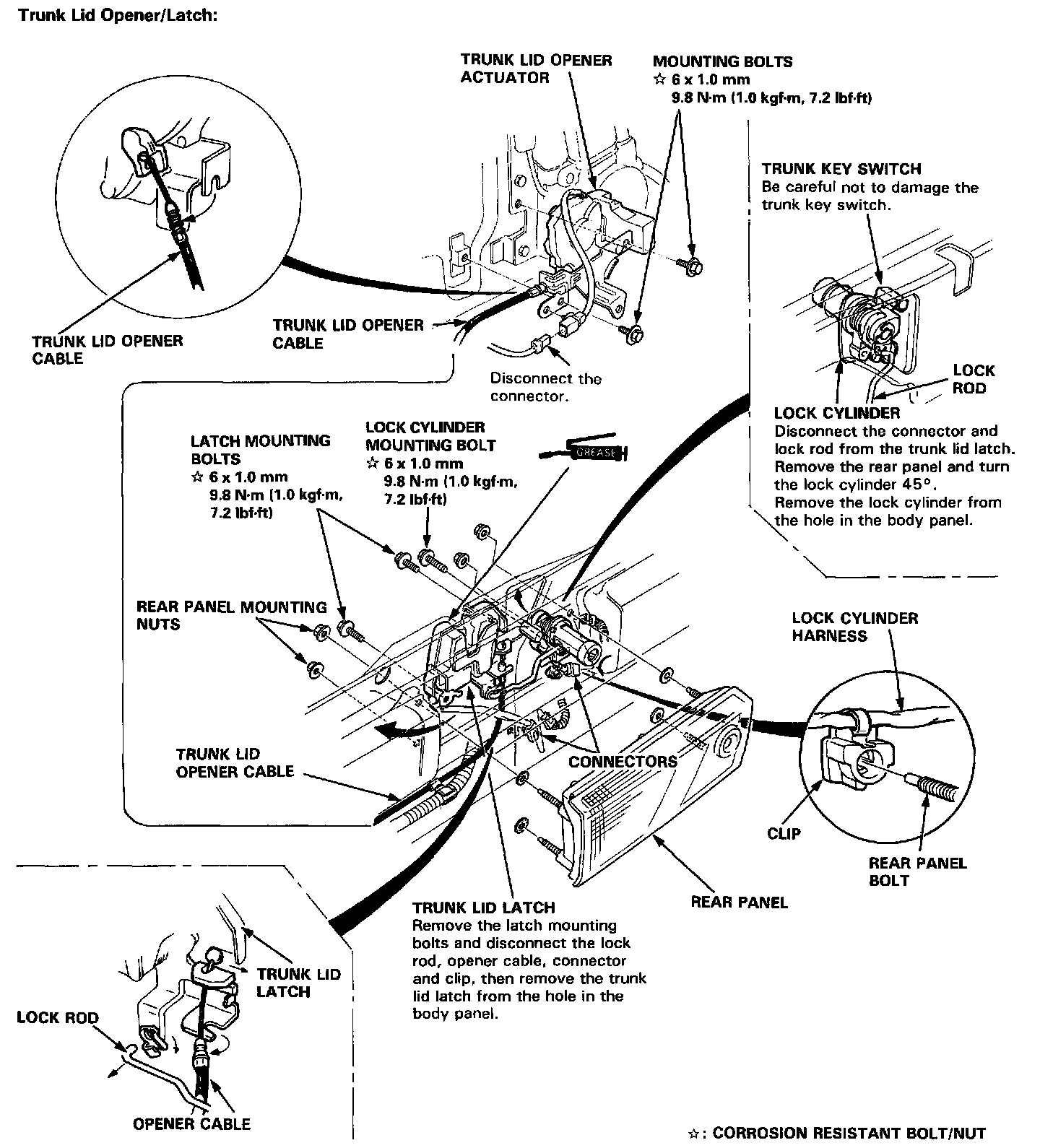

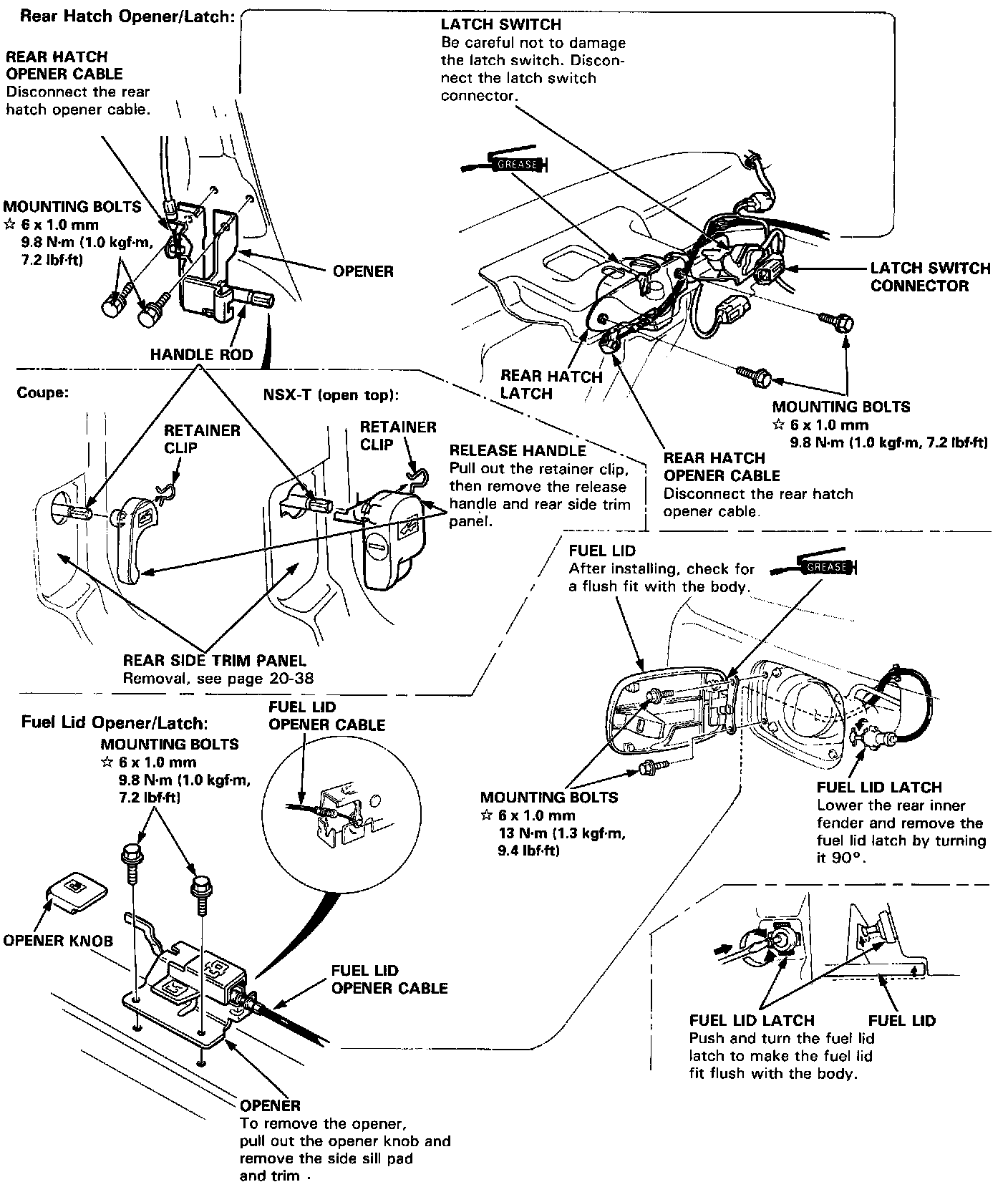

Opener/Latch






NOTE: Take care not to bend the cables.






NOTE: Take care not to bend the cable and rod.
