Radio/Stereo: Service and Repair

SRS components are located in this area. Review the SRS component locations, precautions, and procedures before in SRS performing repairs or service.

1. Remove the clock (see Clock removal).

Stereo Sound System-Unit Removal:

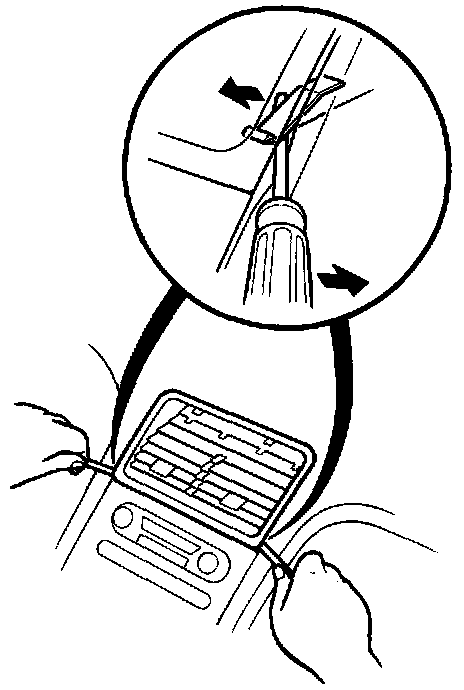

2. Remove the two screws behind the clock, then remove the center air vent.

Stereo Sound System-Unit Removal:

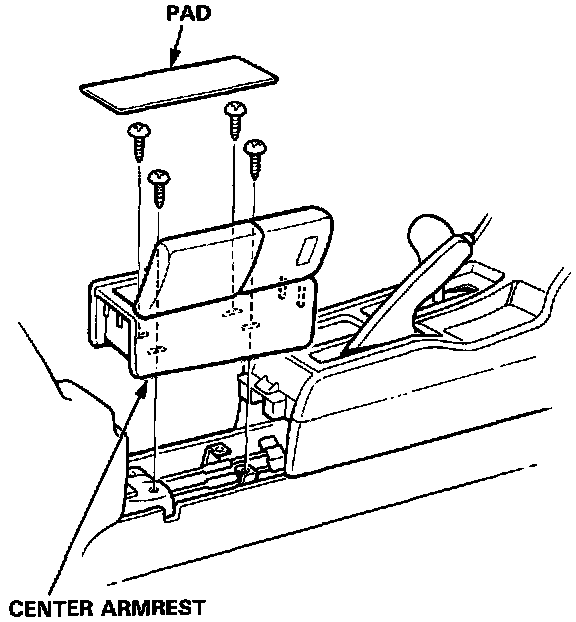

3. Remove the four screws, then remove the center armrest.

Stereo Sound System-Unit Removal:

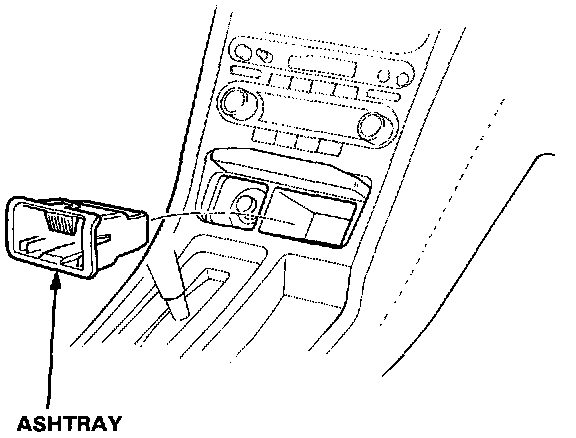

4. Take out the ashtray.

Stereo Sound System-Unit Removal:

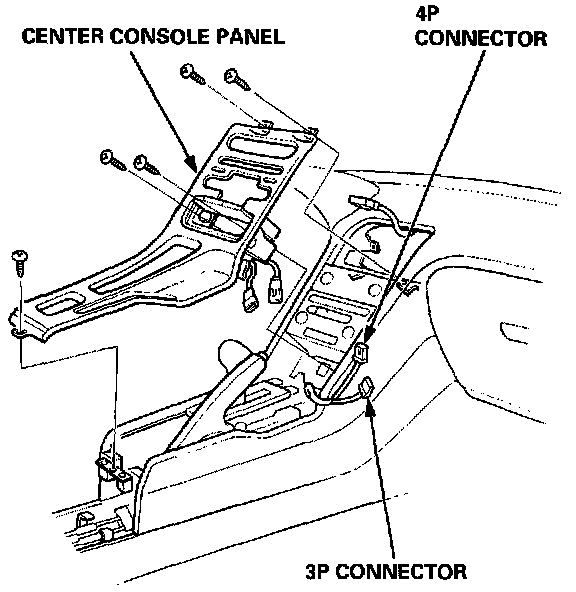

5. Remove the five screws and center console panel, then disconnect the 3P connector and 4P connector from the floor wire harness.

Stereo Sound System-Unit Removal:

6. Remove the four screws, then disconnect the 14P and 3OP connectors from the floor wire harness and take out the climate control unit.

Stereo Sound System-Unit Removal:

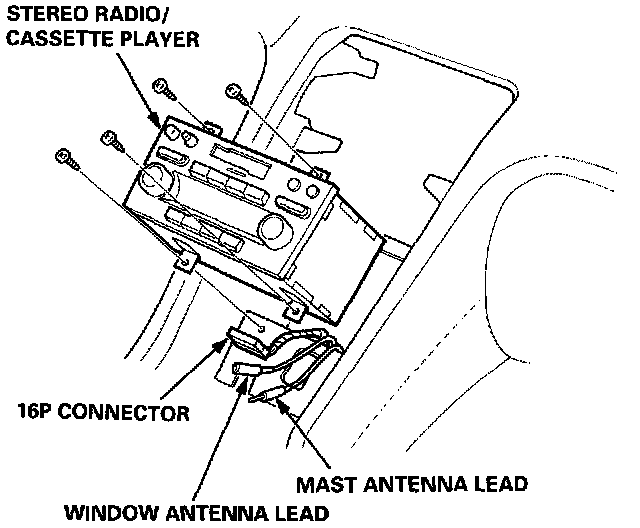

7. Remove the four screws, then disconnect the 16P connector, mast antenna lead, and window antenna lead and take out the stereo radio/cassette player.
