Amplifier: Testing and Inspection

1. Remove the power amplifier relay from under-hood relay box B.

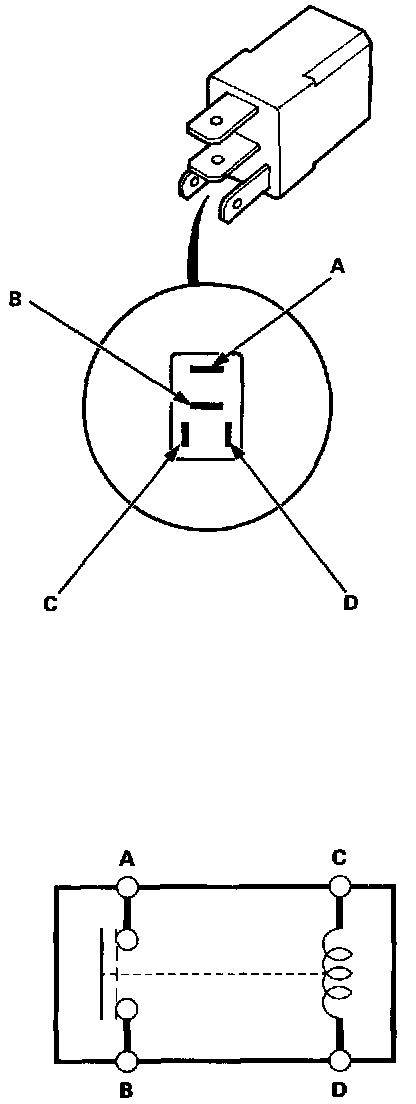

Power Amplifier Relay Test:

2. Check continuity at the relay terminals.
- There should be continuity between the C and D terminals.
- There should be continuity between the A and B terminals when power and ground are connected to the C and D terminals.
- There should be no continuity between the A and B terminals when power is disconnected.
