Lock Cylinder Switch: Testing and Inspection

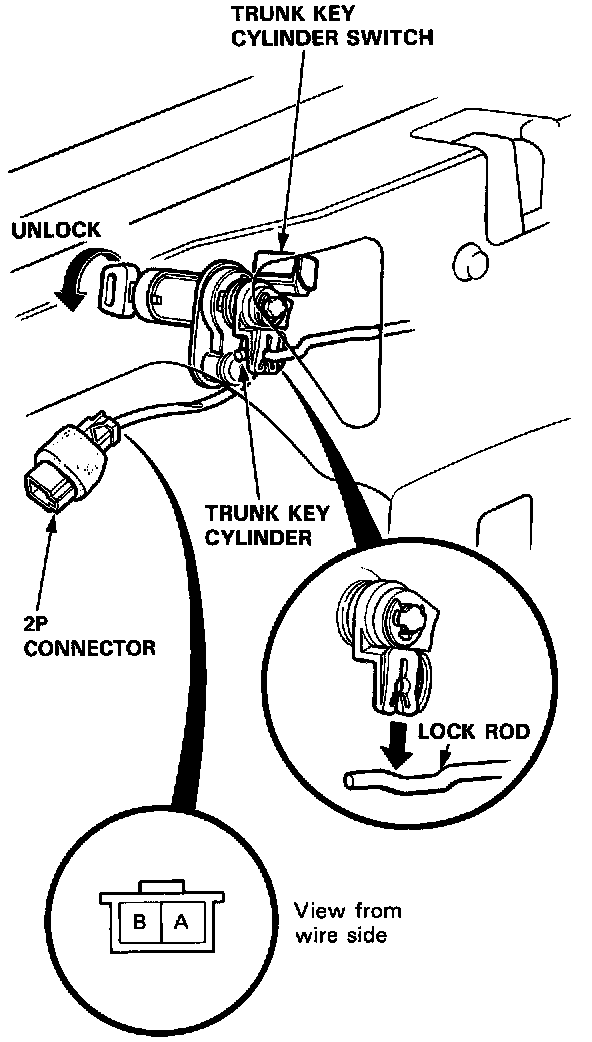

1. Open the trunk lid, and remove the trunk rear panel.
2. Disconnect the 2P connector from the trunk key cylinder switch.

Trunk Key Cylinder Switch Test:

3. Check continuity at the switch connector terminals.
- There should be continuity between the terminals when the trunk lock is turned to UNLOCK with the key.
- There should be no continuity when the lock is released.
