NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0135
P0135
[P0135]

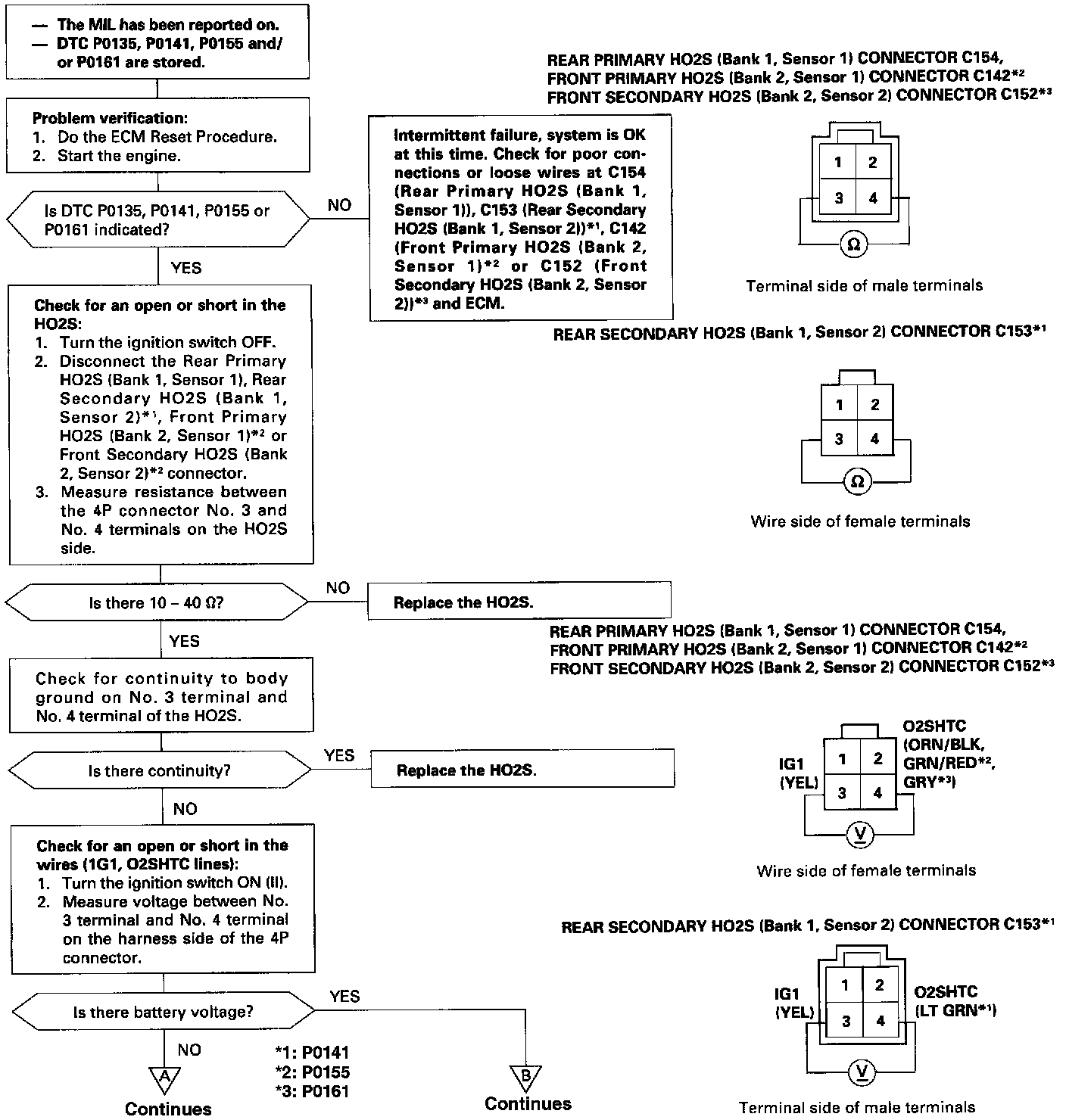

The scan tool indicates Diagnostic Trouble Code (DTC) P0135: A problem in the Rear Primary Heated Oxygen Sensor (HO2S) (Bank 1, Sensor 1) Heater circuit.
