DTC 2-1

NOTE: The Traction Control System (TCS) control unit performs the self-diagnosis for the steering angle sensor when the average speed of the front two wheels exceeds 10 mph (16 km/h). The TCS indicator light comes on if a yaw rate is generated, the corresponding steering angle signal is not input when the steering wheel is turned, and there is no input from the STOP (brake switch signal) and PARK (parking brake switch signal).

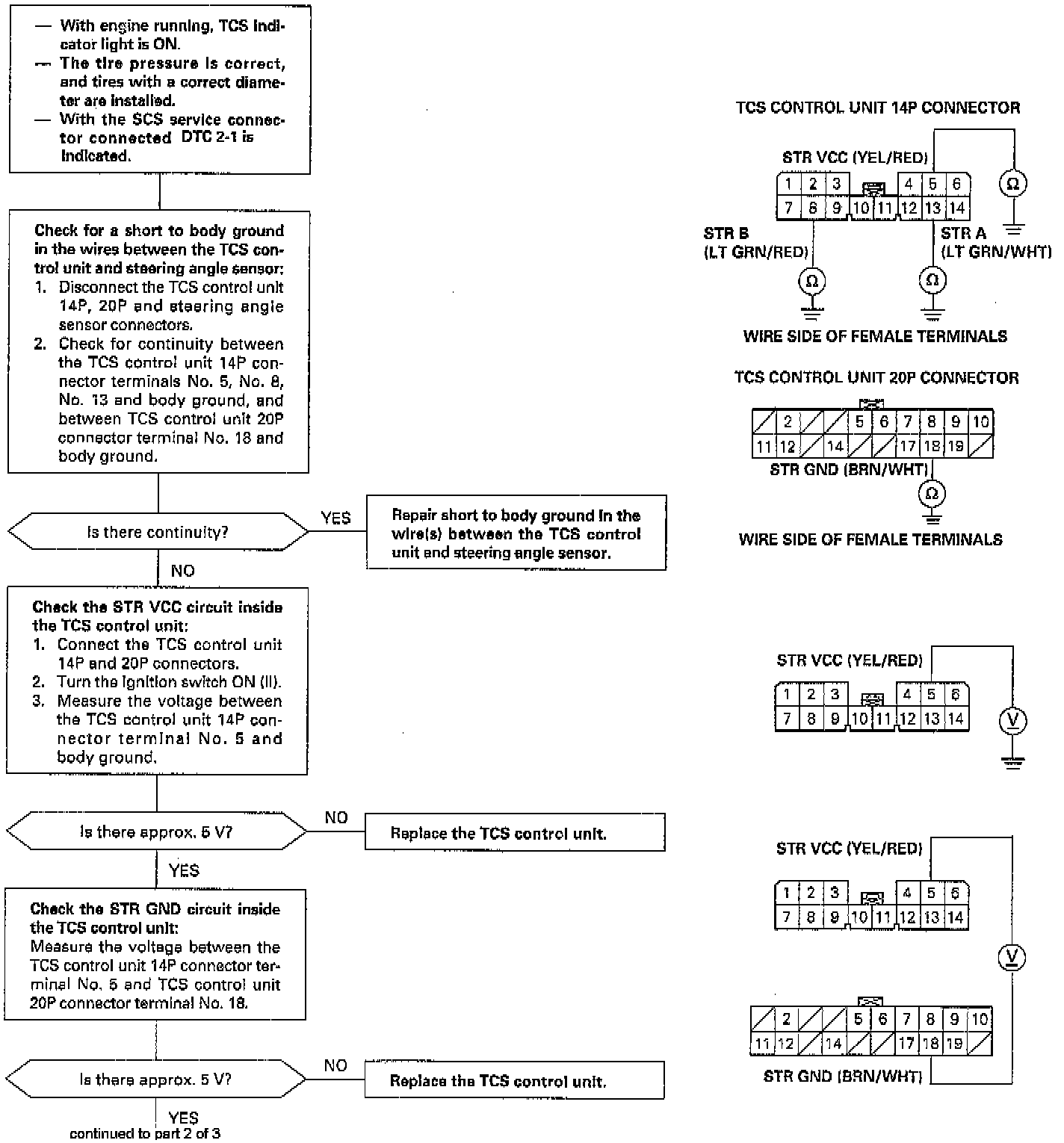

Part: 1 Of 3

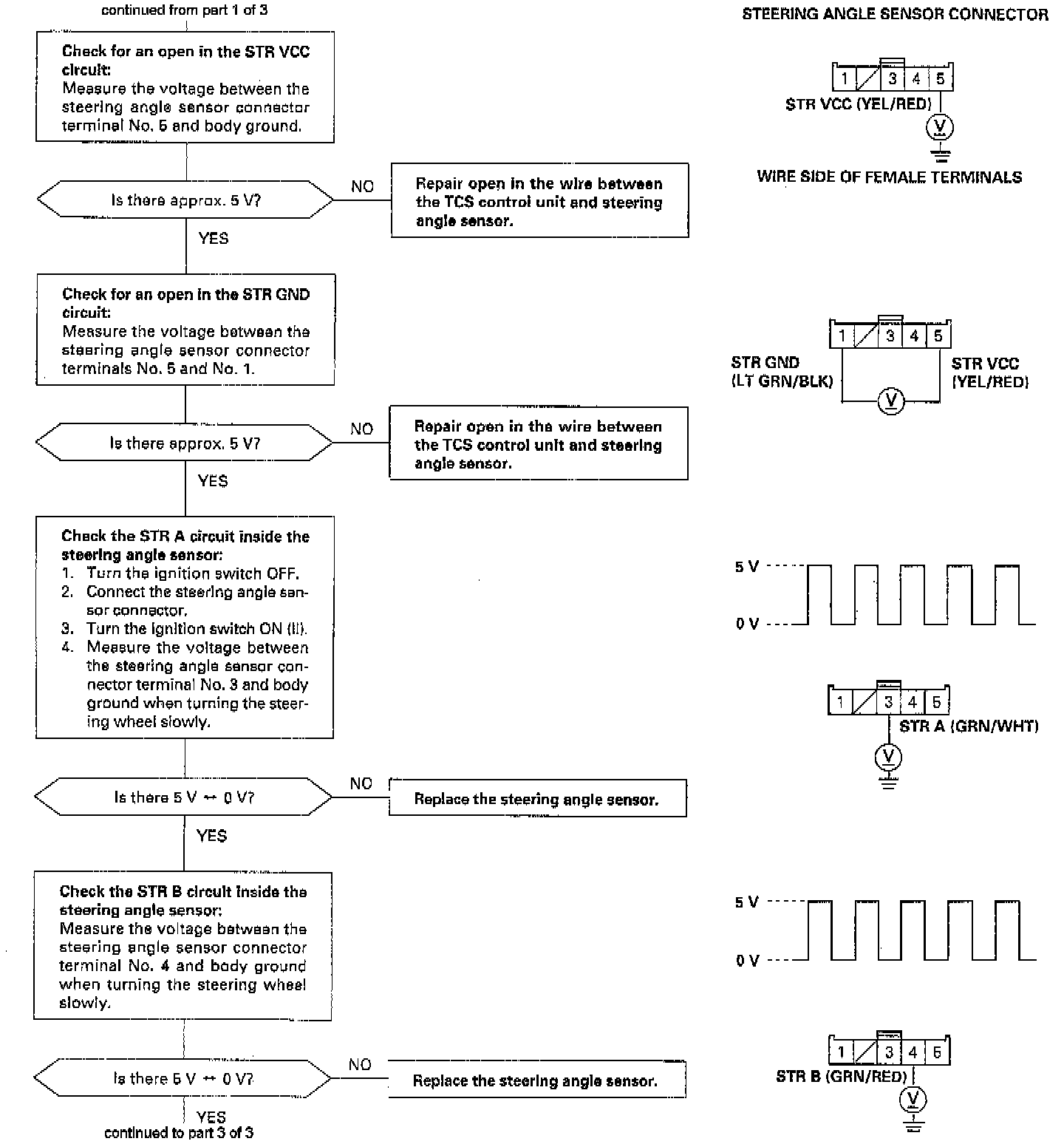

Part: 2 Of 3

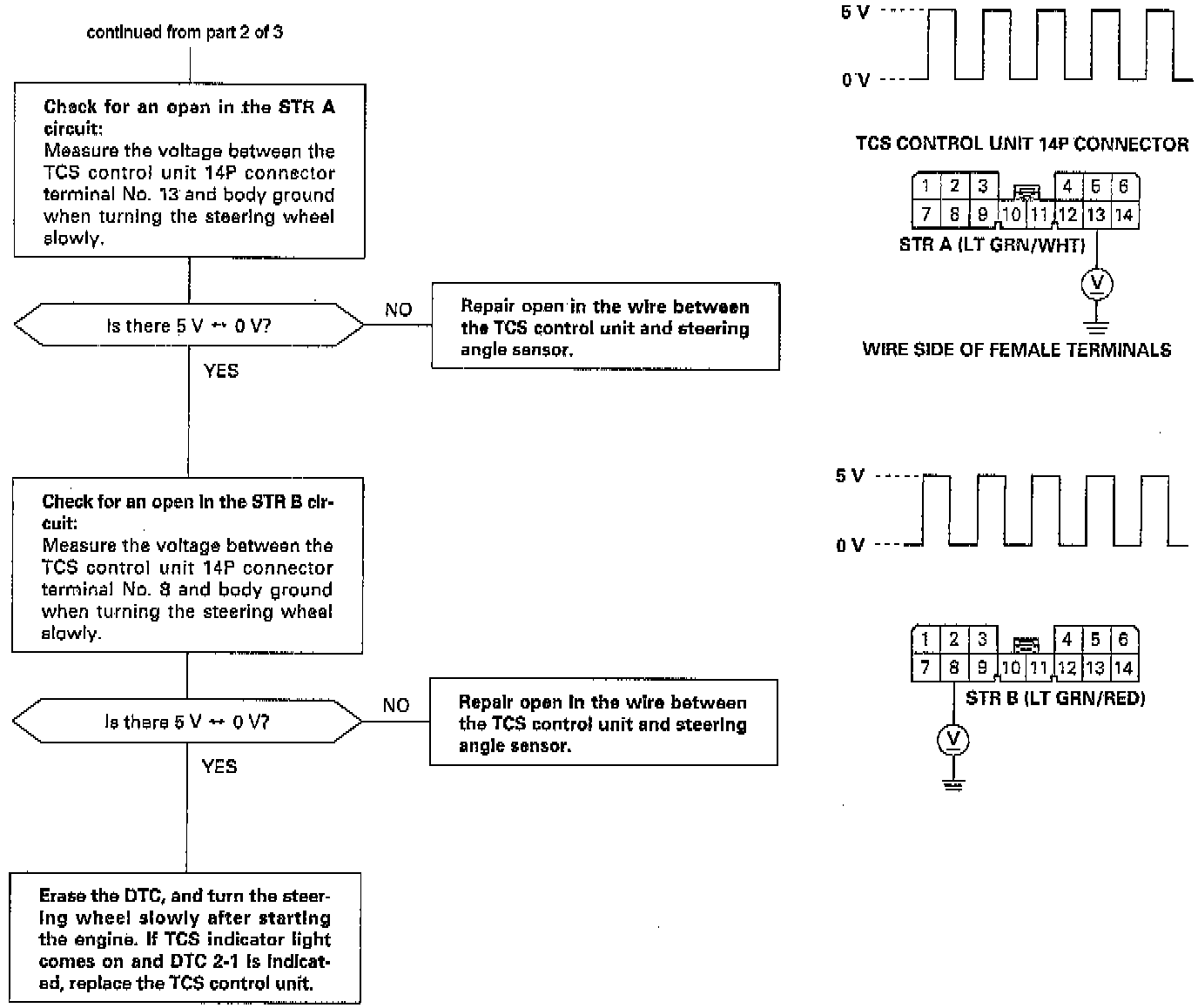

Part: 3 Of 3
