DTC 1

NOTE: The ABS indicator light does not blink when the following failures occur:
- The contact points of the relay remain closed (the motor continuously even after the ignition switch is turned OFF).
- Pump Motor Relay (PMR) circuit wire is shorted or the ABS control unit is internally shorted (the motor stops when the ignition switch is turned OFF).

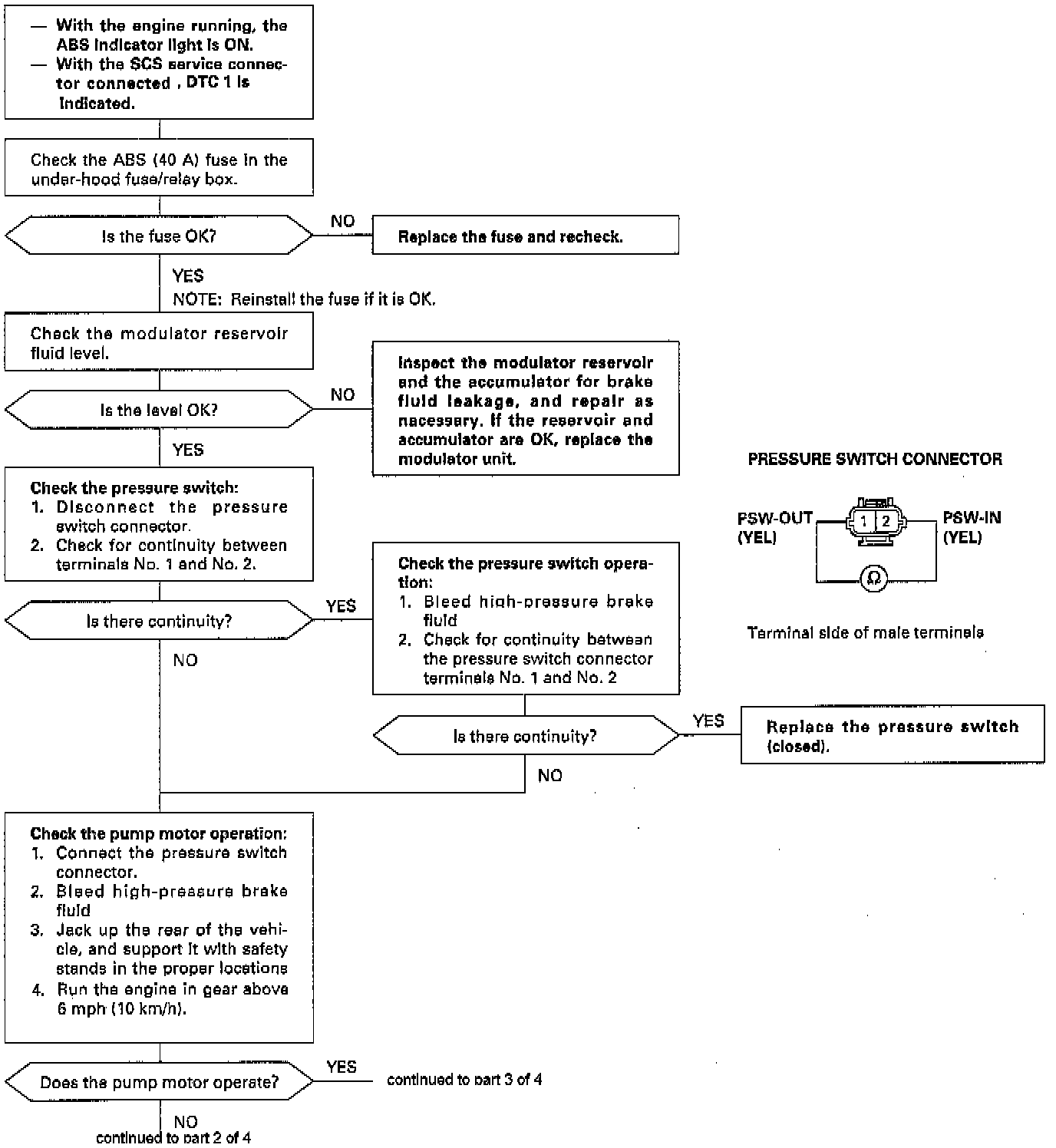

Part 1 of 4

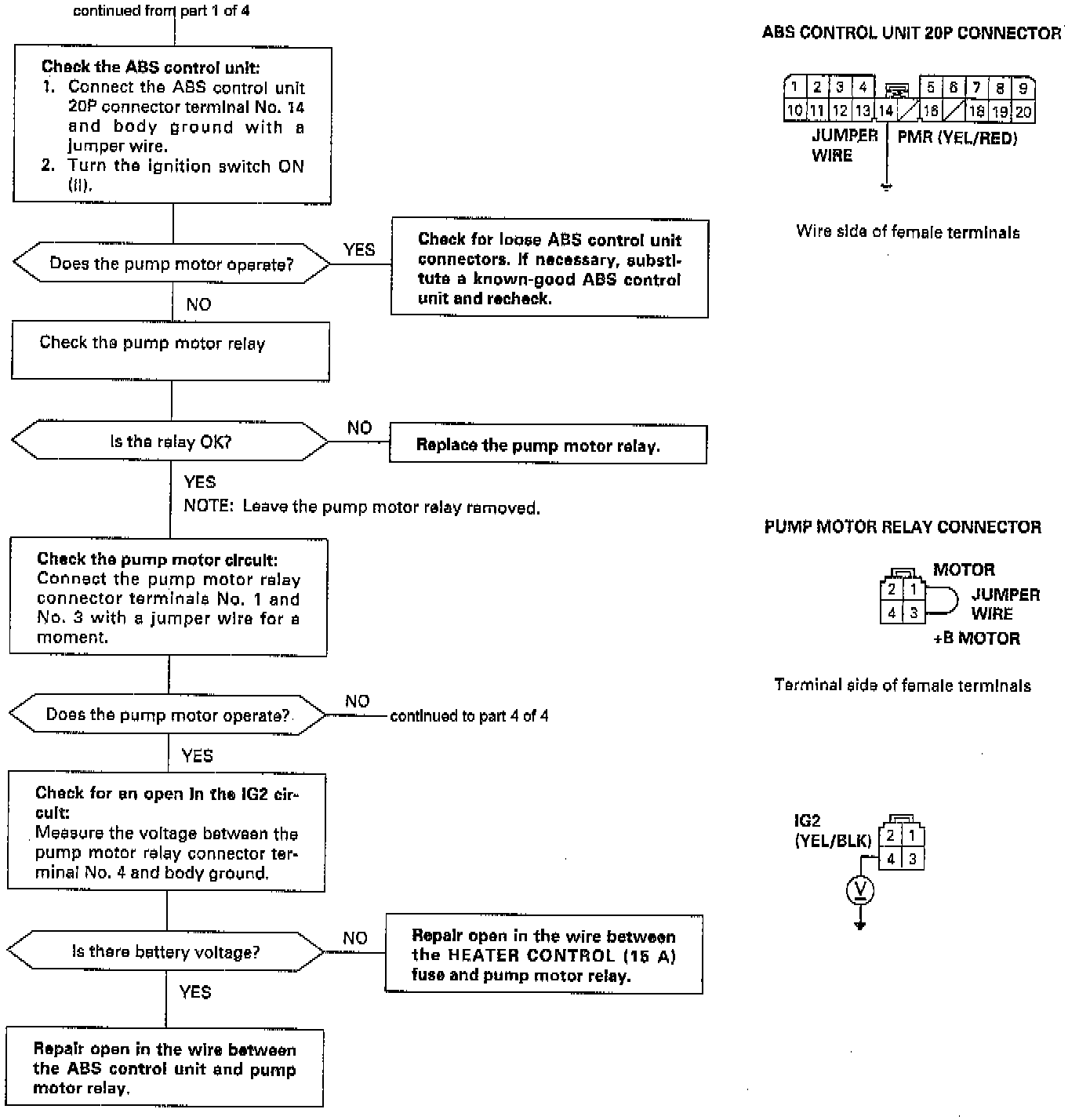

Part 2 of 4

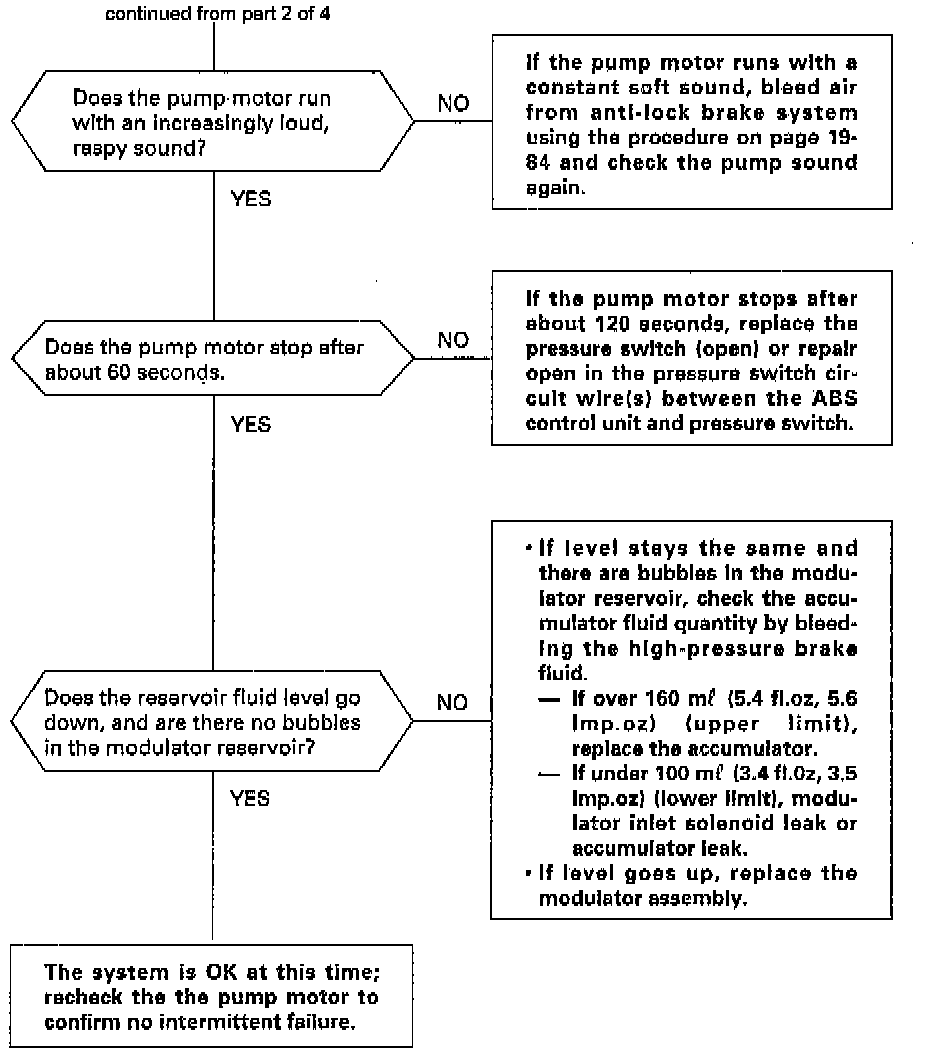

Part 3 of 4

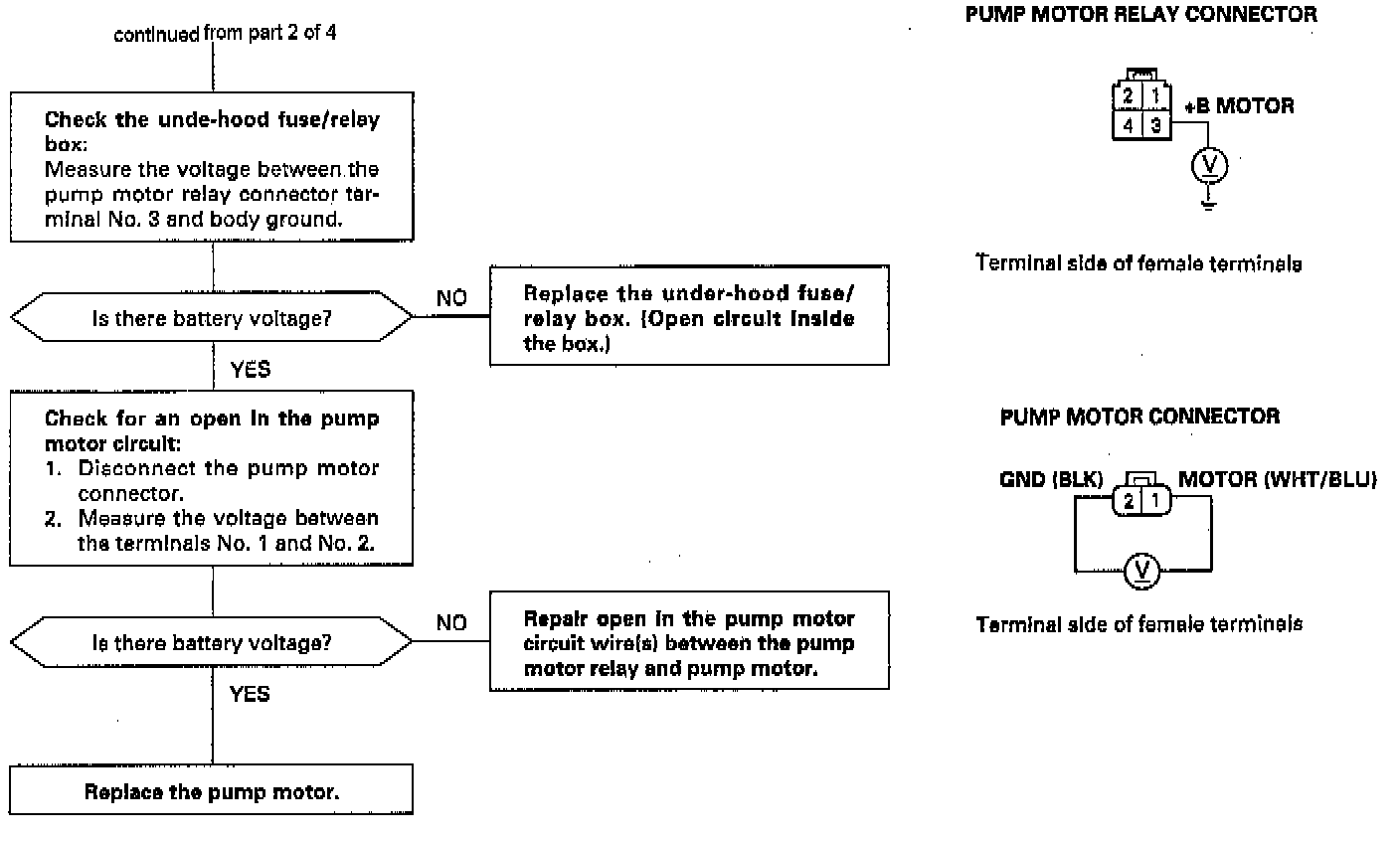

Part 4 of 4
