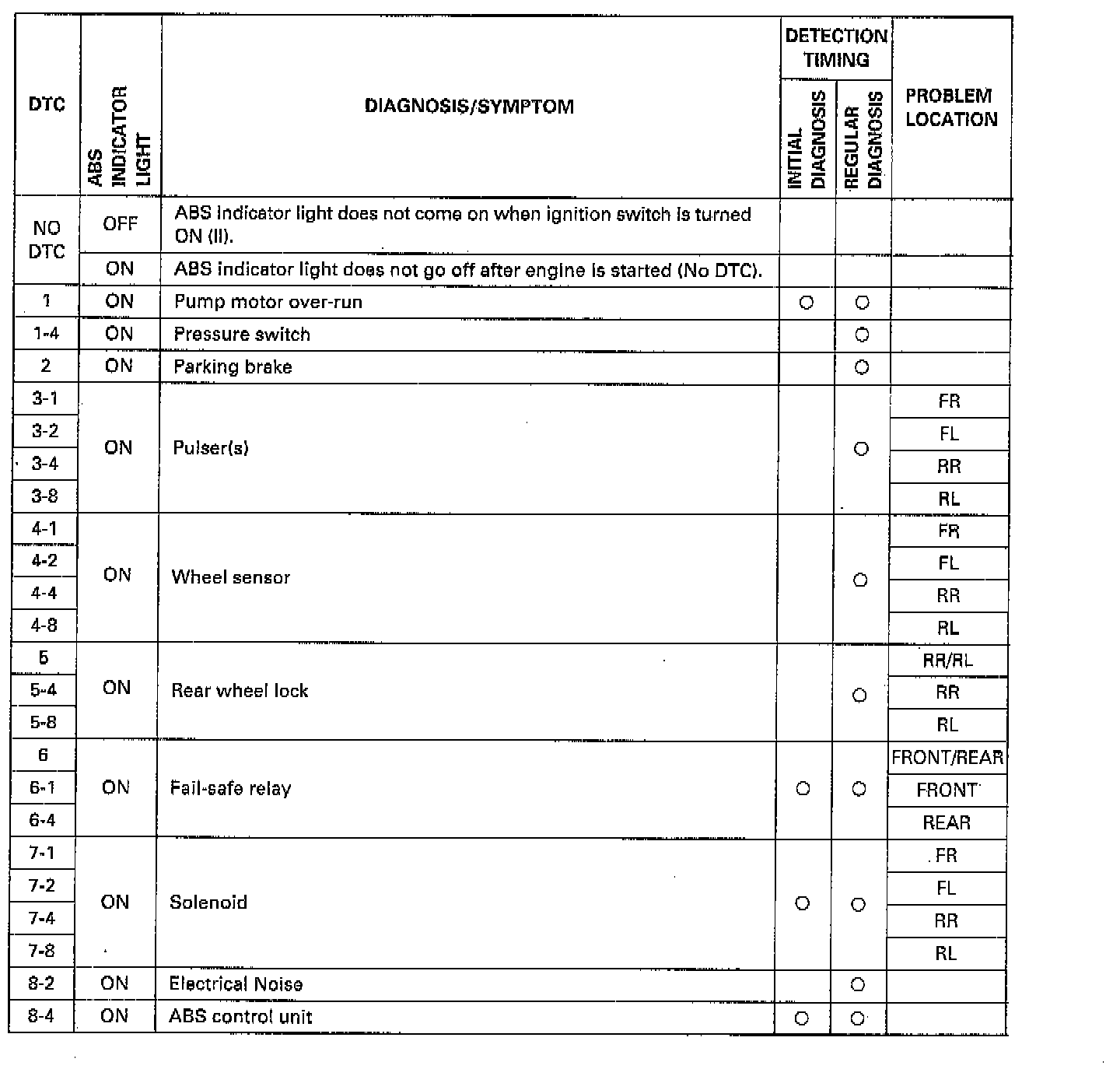

DTC List - Antilock Brake System

- When the control unit detects a problem and the ABS indicator light comes on, the control unit memorizes the Diagnostic Trouble Code (DTC).
- The control unit has three memory registers. When a problem occurs, the control unit stores the DTC in the first memory register.
- The most recent DTC is indicated first, and the oldest DTC is indicated last. When multiple DTCs are displayed, perform troubleshooting for the DTC that appears first.
- The DTCs are erased from the control unit when the ABS control unit +B2 power supply or connector is disconnected.
- The control unit's memory can be erased by disconnecting the ABS 2, 3 fuse for more than three seconds.
