Windshield Washer Motor: Testing and Inspection

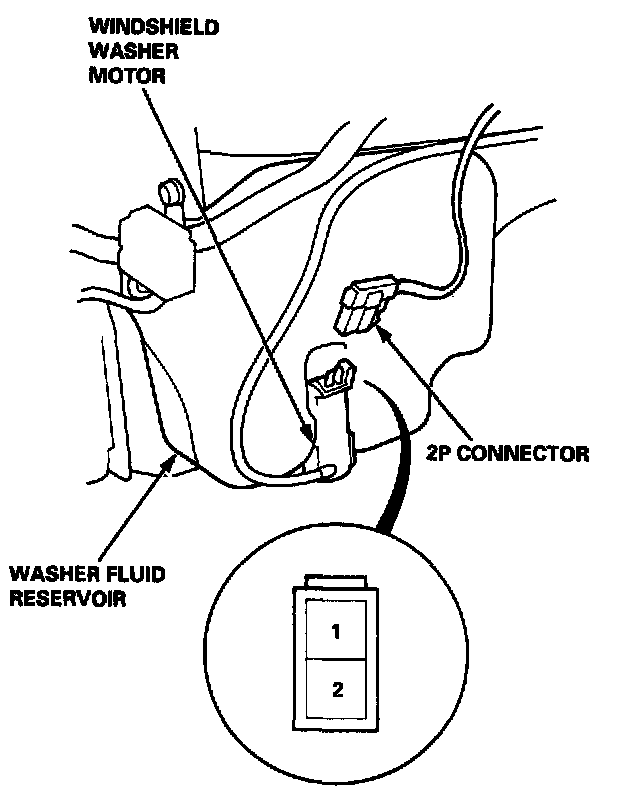

1. Remove the front bumper.




2. Disconnect the 2P connector from the washer.

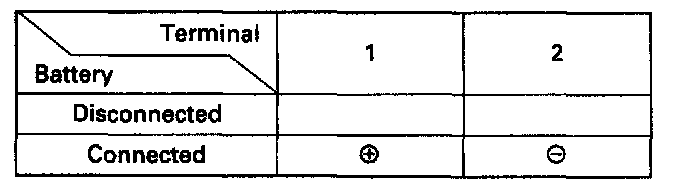

3. Test the washer motor by connecting battery power and ground according to the table.
^ If the motor fails to run smoothly, replace it.
^ If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged pump outlet in the motor.
