Driver's Window Motor Test

Motor Test:
1. Remove the driver's door panel.

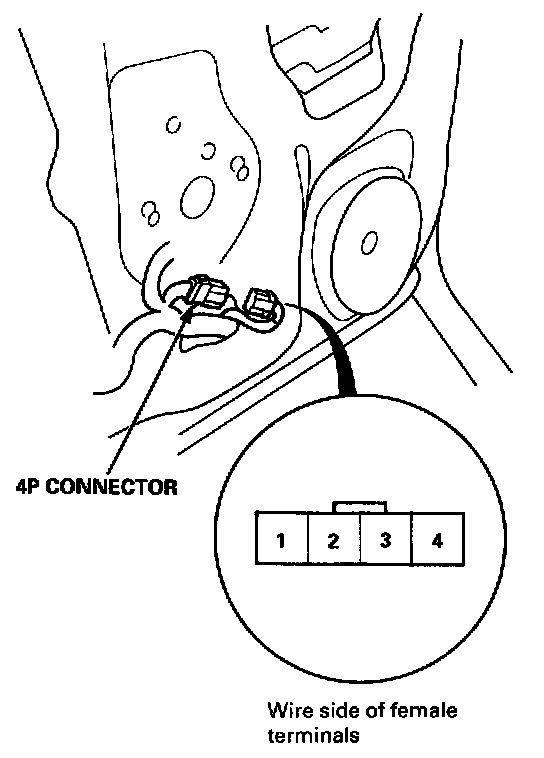

2. Disconnect the 4P connector from the motor.

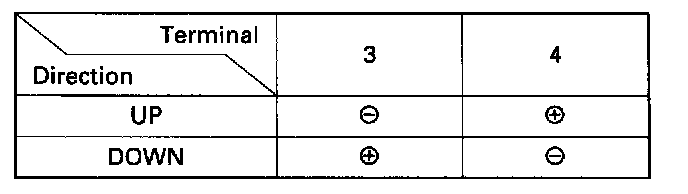

3. Test the motor in each direction by connecting battery power and ground according to the table.

CAUTION: When the motor stops running, disconnect one lead immediately.

4. If the motor does not run or fails to run smoothly, replace it.
