Removal and Installation

REMOVAL

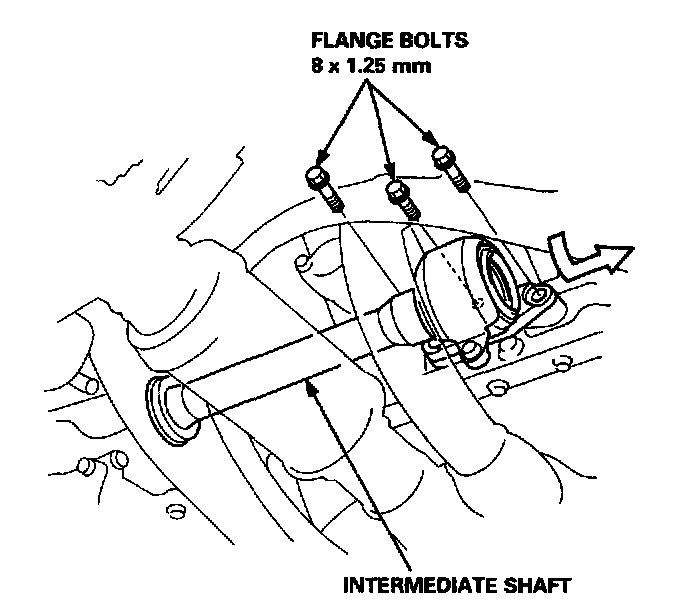

1. Drain the transmission fluid.
2. Remove the right driveshaft.
3. Remove the three flange bolts.





4. Remove the intermediate shaft from the differential.

CAUTION: Hold the intermediate shaft horizontal until it is clear of the differential to prevent damage to the differential oil seal.

INSTALLATION

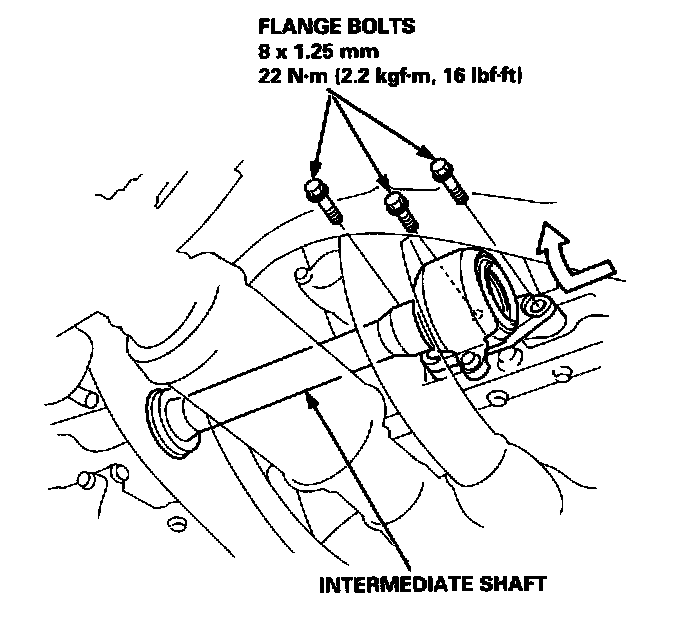

1. Insert the intermediate shaft assembly into the differential.

CAUTION: Hold the intermediate shaft horizontal to prevent damage to the differential oil seal.





2. Install the three flange bolts, then tighten them.
