Exploded Views

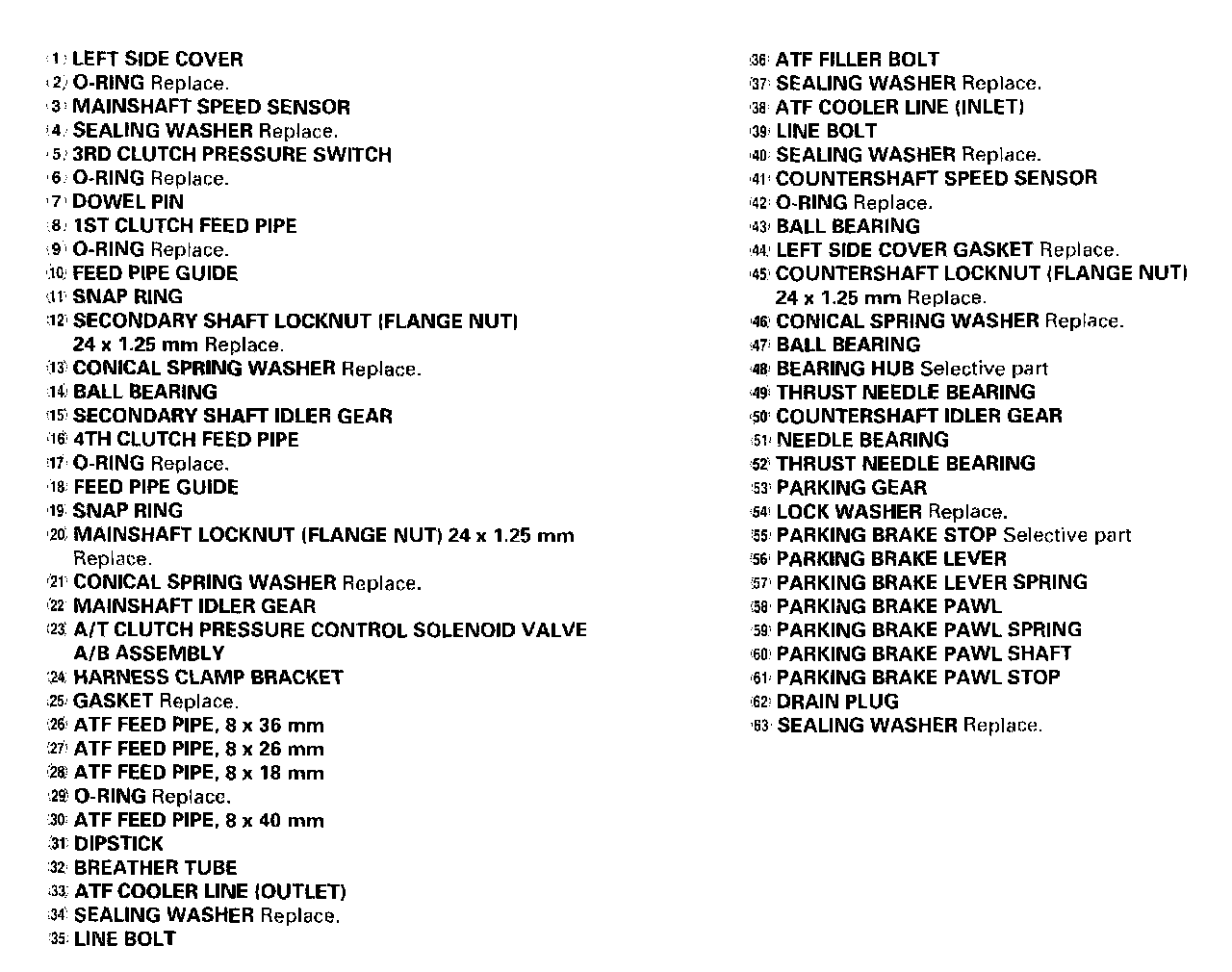

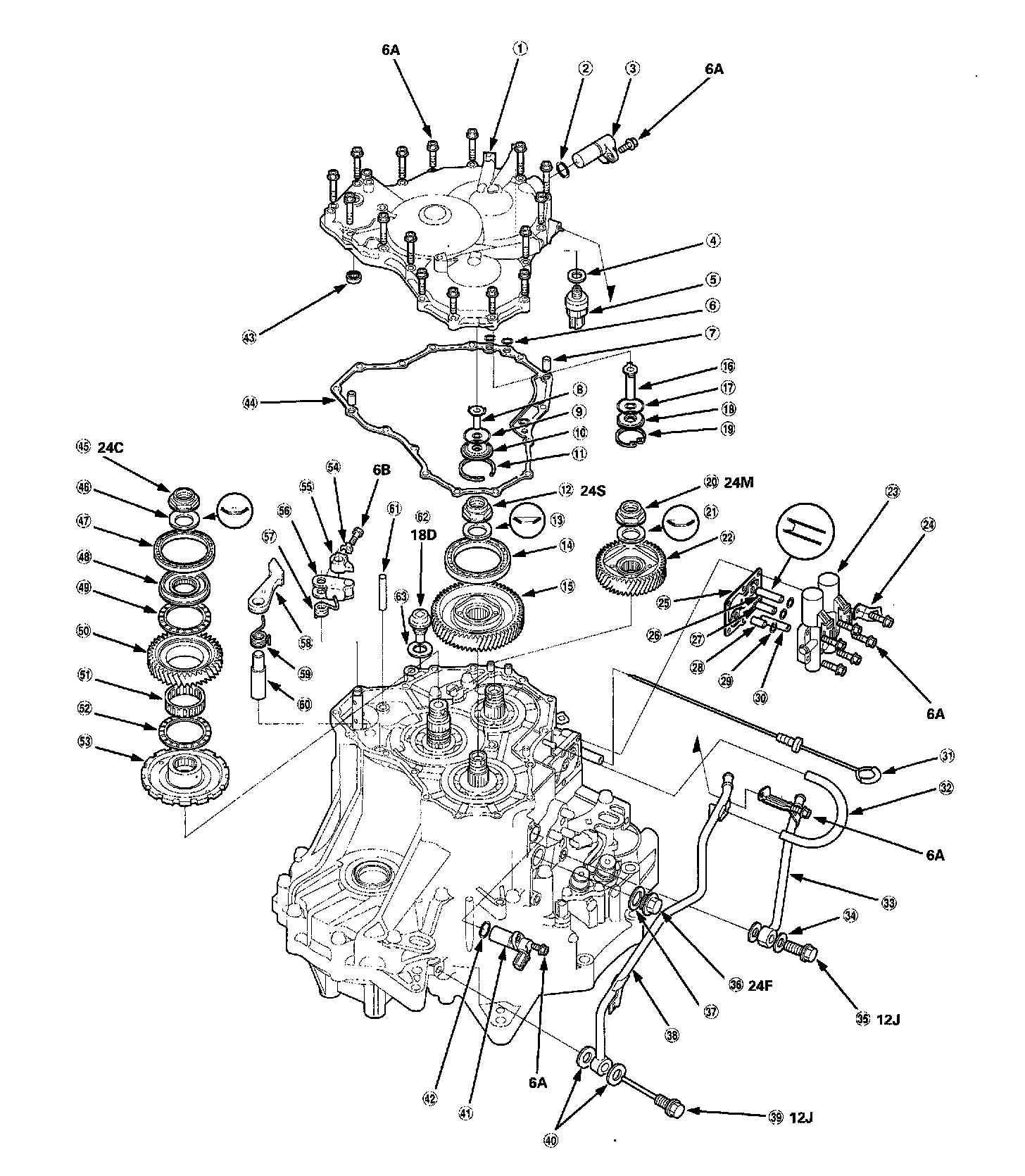

End Cover

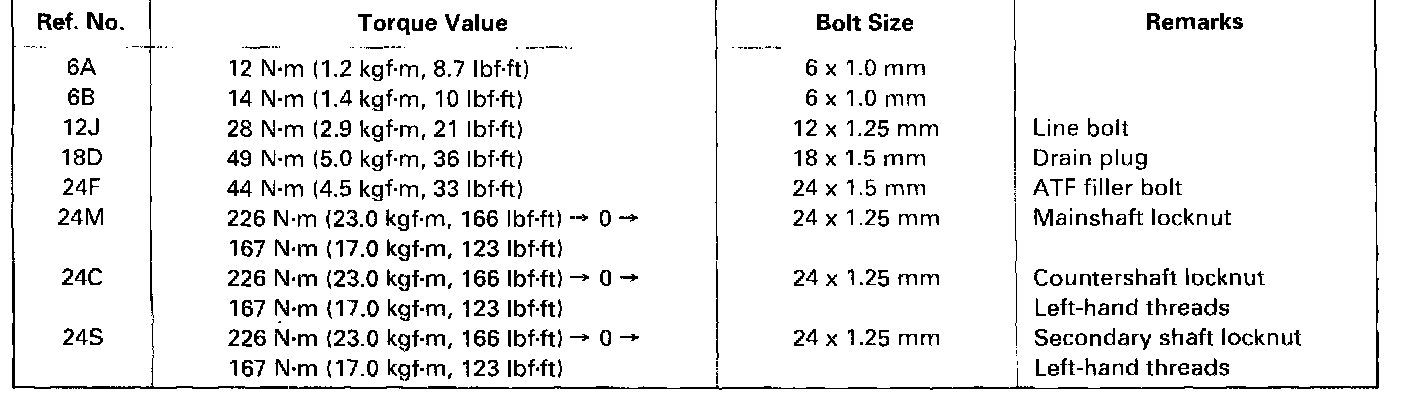

Torque Specifications

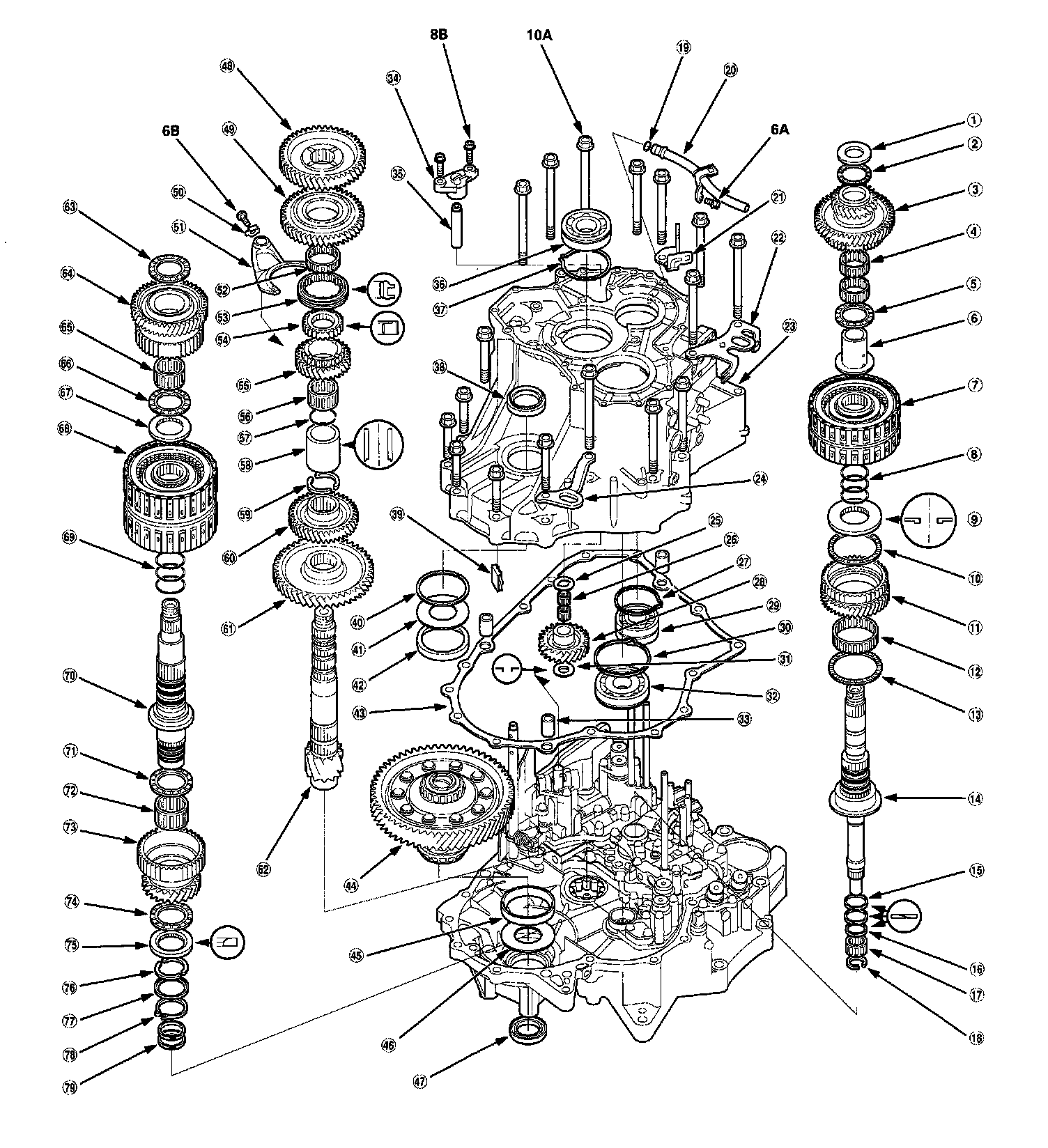

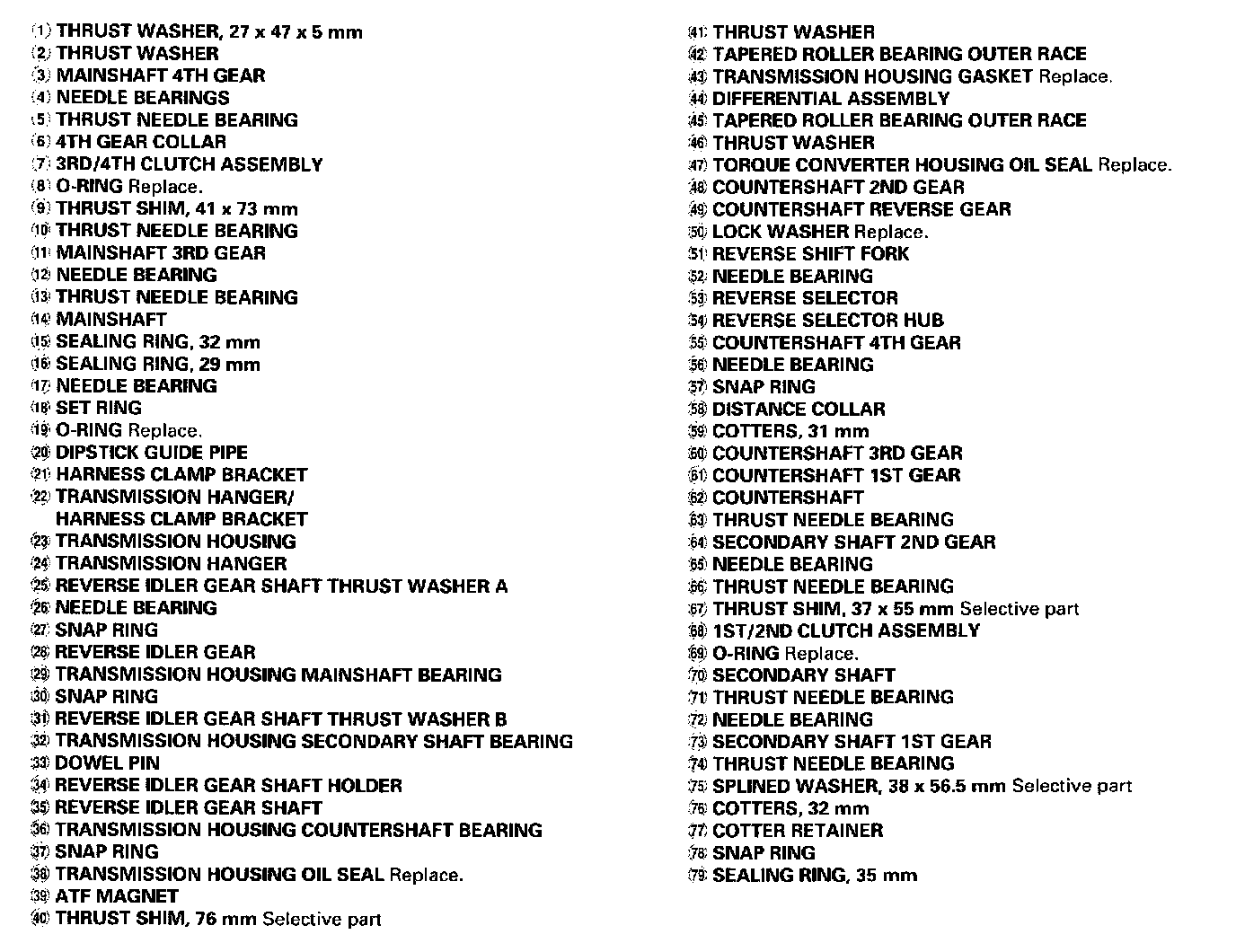

Transmission Housing

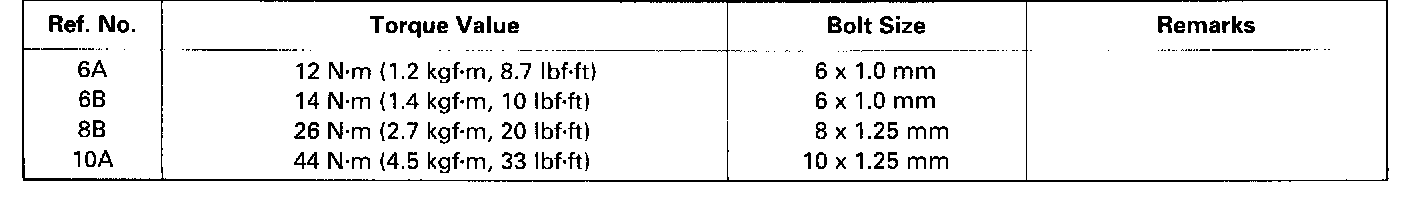

Torque Specifications

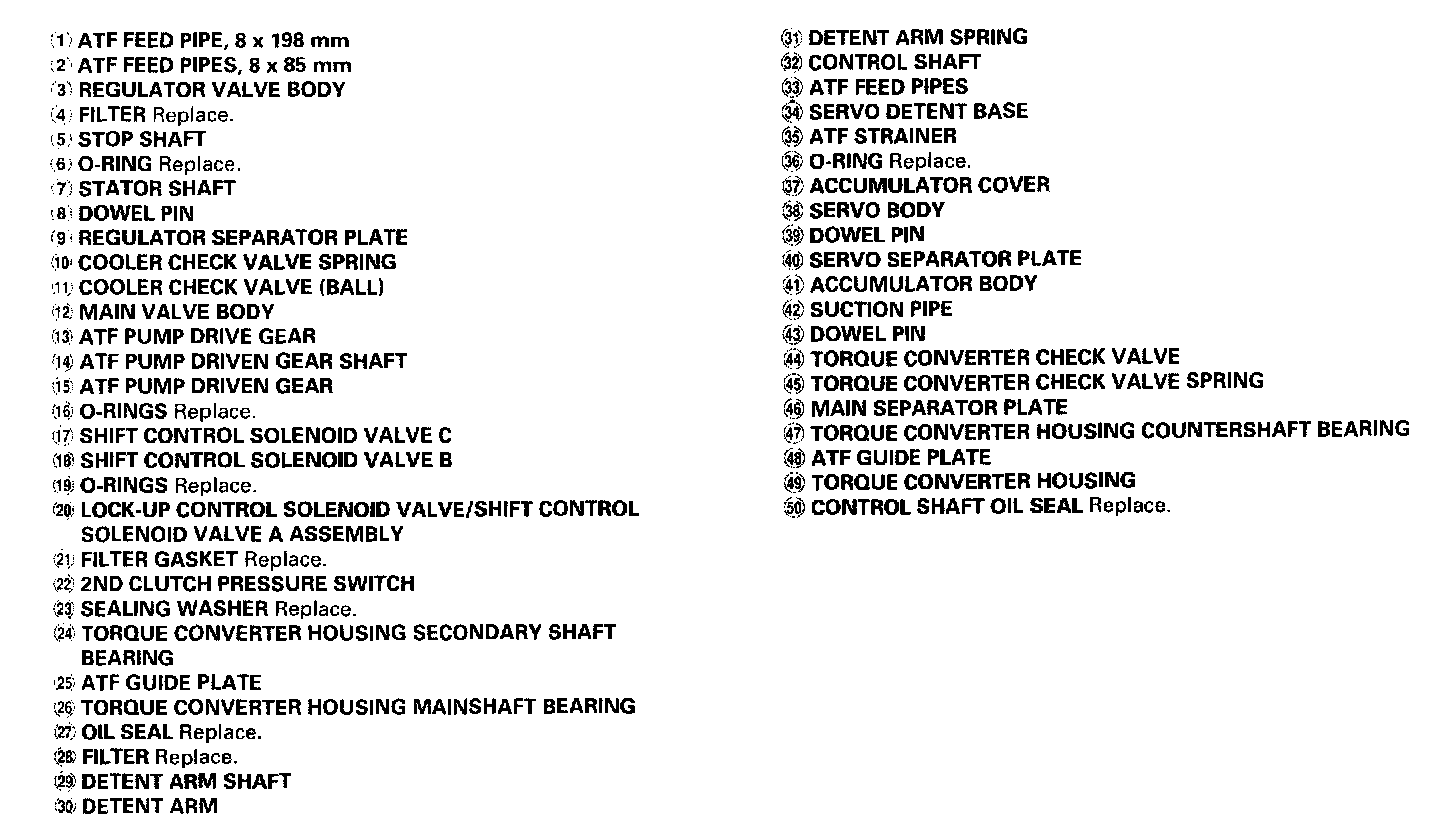

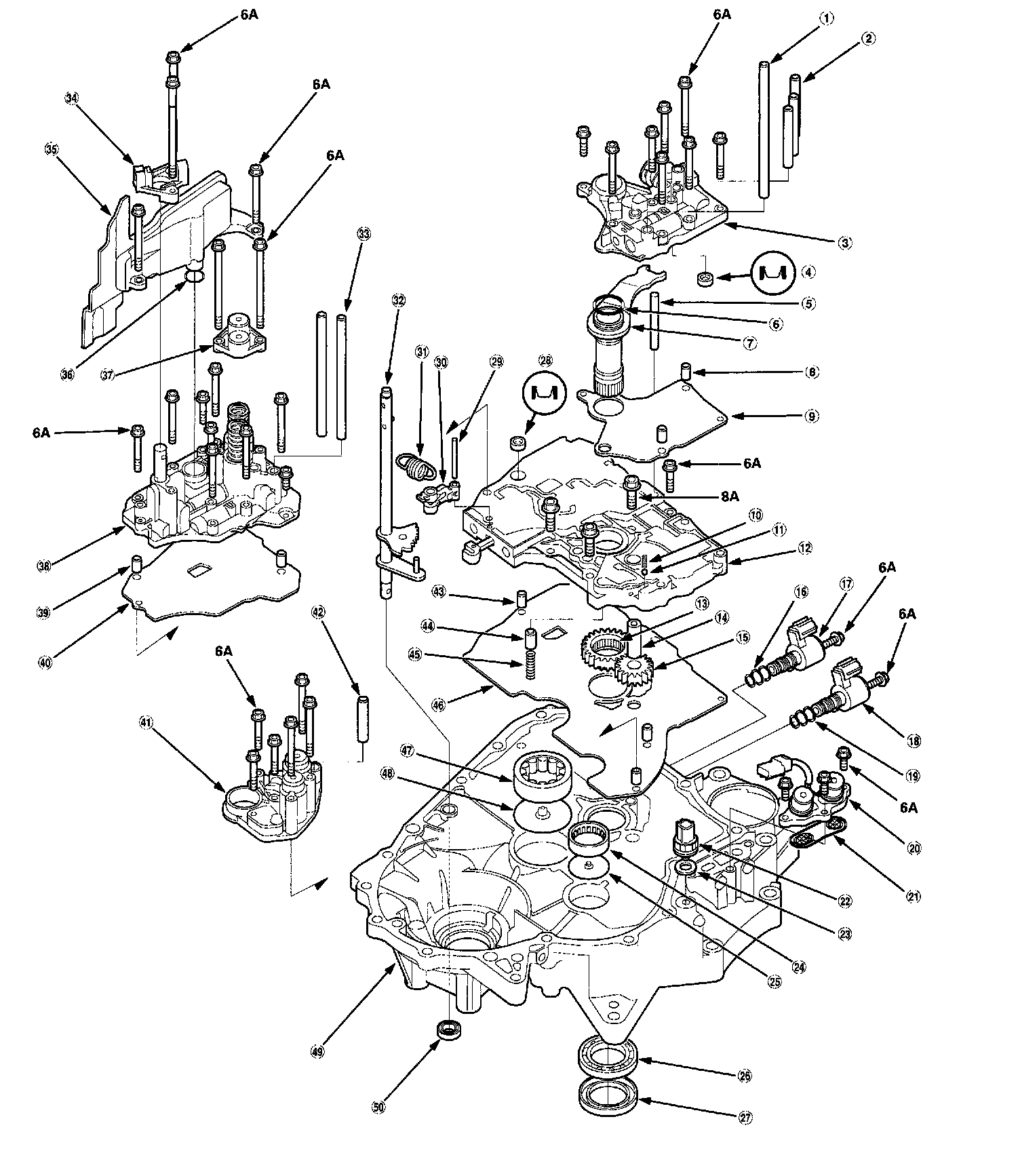

Torque Converter Housing/Valve Body

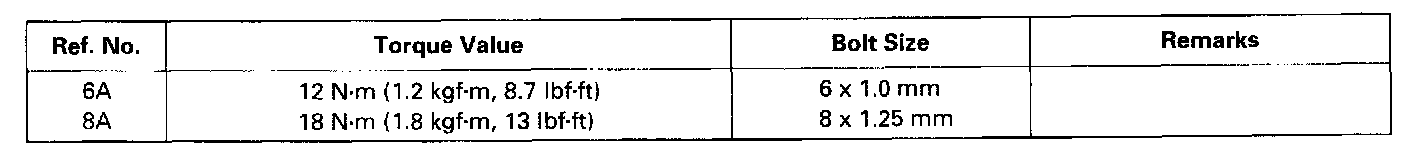

Torque Specifications
