Steering Wheel: Service and Repair

REMOVAL
SRS components are located in this area. Review the SRS component locations, precautions, and procedures before performing repairs or service.

NOTE: Before removing the steering wheel, align the front wheels straight ahead.

1. Remove the driver's airbag assembly from the steering wheel.

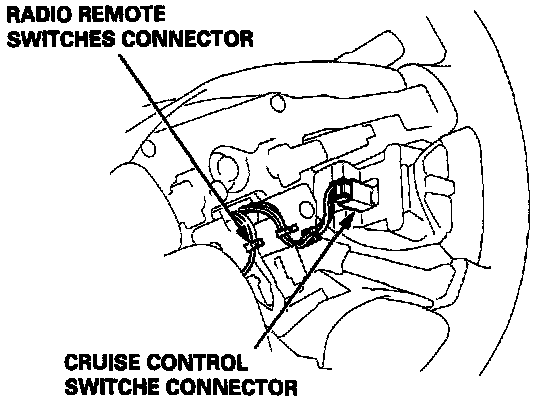

2. Disconnect the horn connector and cruise control switch connector.

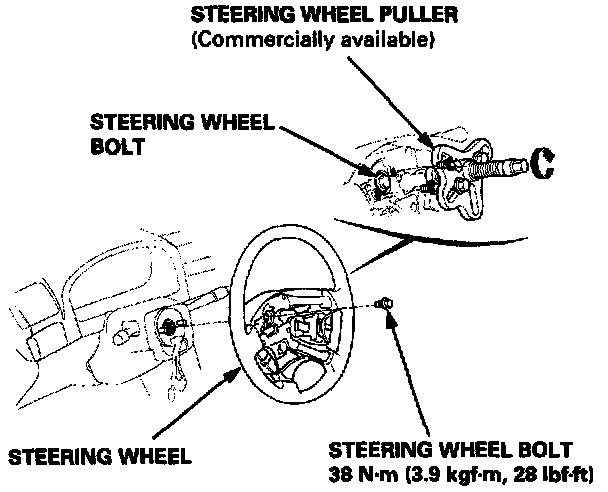

3. Loosen the steering wheel bolt, then install a steering wheel puller on the steering wheel and remove it.

CAUTION:
- Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
- If you thread the puller bolts into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.

INSTALLATION

CAUTION: Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

NOTE: Before removing the steering wheel, align the front wheels straight ahead.

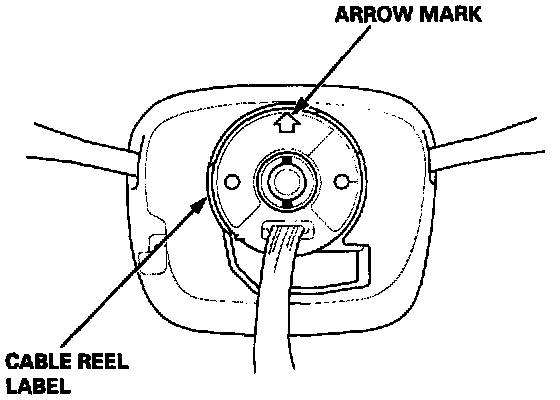

1. Before installing the steering wheel, center the cable reel. Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise approximately two turns. The arrow mark on the cable reel label should point straight up.





2. Install the steering wheel with the steering wheel bolt.

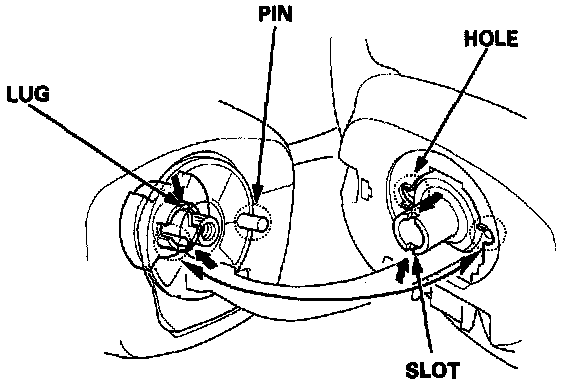

NOTE: Be sure the steering wheel shaft engages with the cable reel and canceling sleeve.

3. Attach the cruise control switch connector to the steering wheel clip.
4. Connect the horn connector.
5. Install the driver's airbag assembly, and confirm proper system operation.
6. Check the horn and the cruise control switches for proper operation.
