Removal and Installation

NOTE: Before disconnecting the hoses from the pump, place a suitable container under the vehicle.

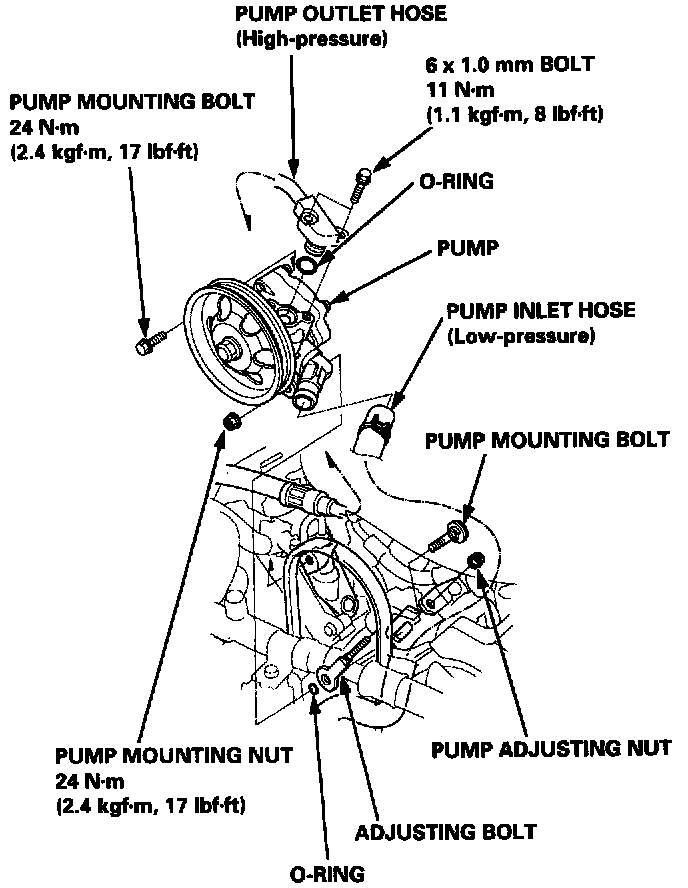

1. Remove the belt by loosening the pump adjusting nut, and mounting bolts and nuts.
2. Cover the crankshaft pulley with several shop towels to protect if from spilled power steering fluid.
3. Disconnect the pump inlet hose and pump outlet hose from the pump, and plug them.

NOTE: Take care not to spill the fluid on the body or parts. Wipe off any spilled fluid at once.

4. Remove the pump mounting bolts, then remove the pump.

NOTE:
- Do not turn the steering wheel with the pump removed.
- Wrap the opening of the pump with a piece of tape to prevent foreign material from entering the pump.

5. Connect the inlet and outlet hoses. Tighten the pump fittings securely.
6. Install the O-ring on the adjusting bolt.
7. Loosely install the pump in the pump bracket with mounting bolts, nuts and adjusting bolt.
8. Install the pump belt.





CAUTION:

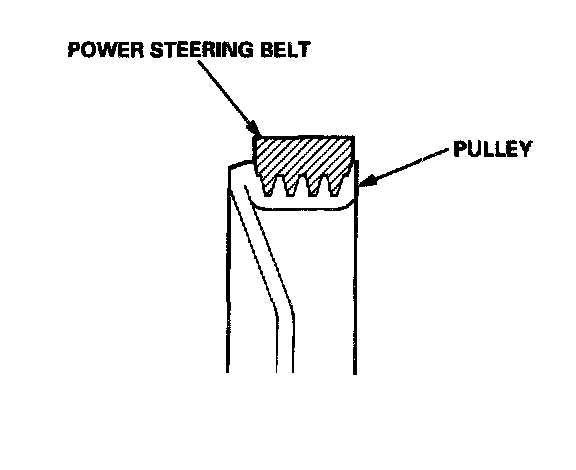

- Make sure that the power steering belt is properly positioned on the pulleys.
- Do not got power steering fluid or grease on the power steering belt or pulley faces. Clean off any fluid or grease before installation.

9. Adjust the pump belt.
10. Fill the reservoir to the upper level line.

Pulley Replacement

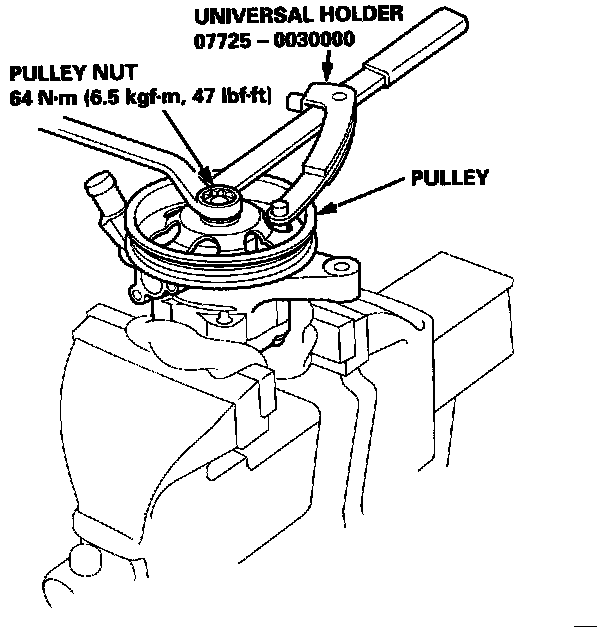

Hold the steering pump in a vise with soft jaws, hold the pulley with the special tool, and remove the pulley nut and pulley.
