Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints >> System Specifications

System Specifications

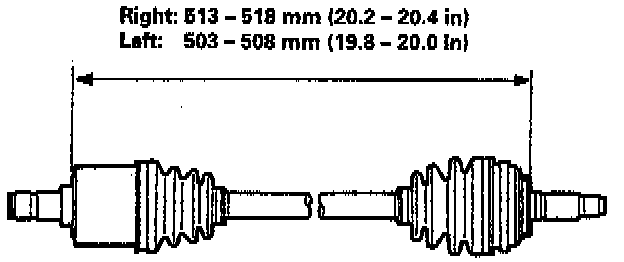

DIMENSIONS



Right 513 - 518 mm (20.2 - 20.4 inch)
Left 503 - 508 mm (19.8 - 20.0 inch)
