Diagnostic Flowchart

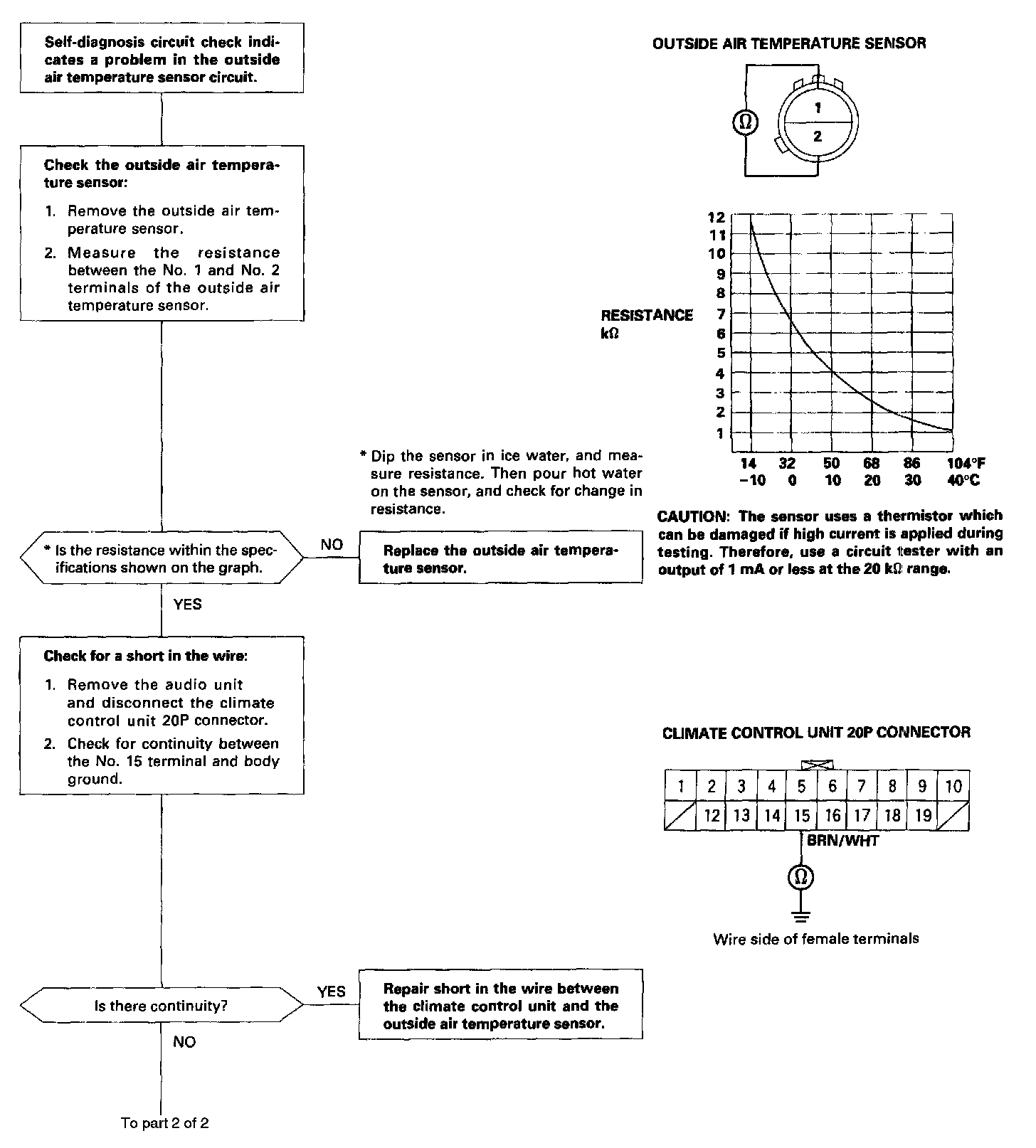

Outside Air Temperature Sensor (Part 1 Of 2):

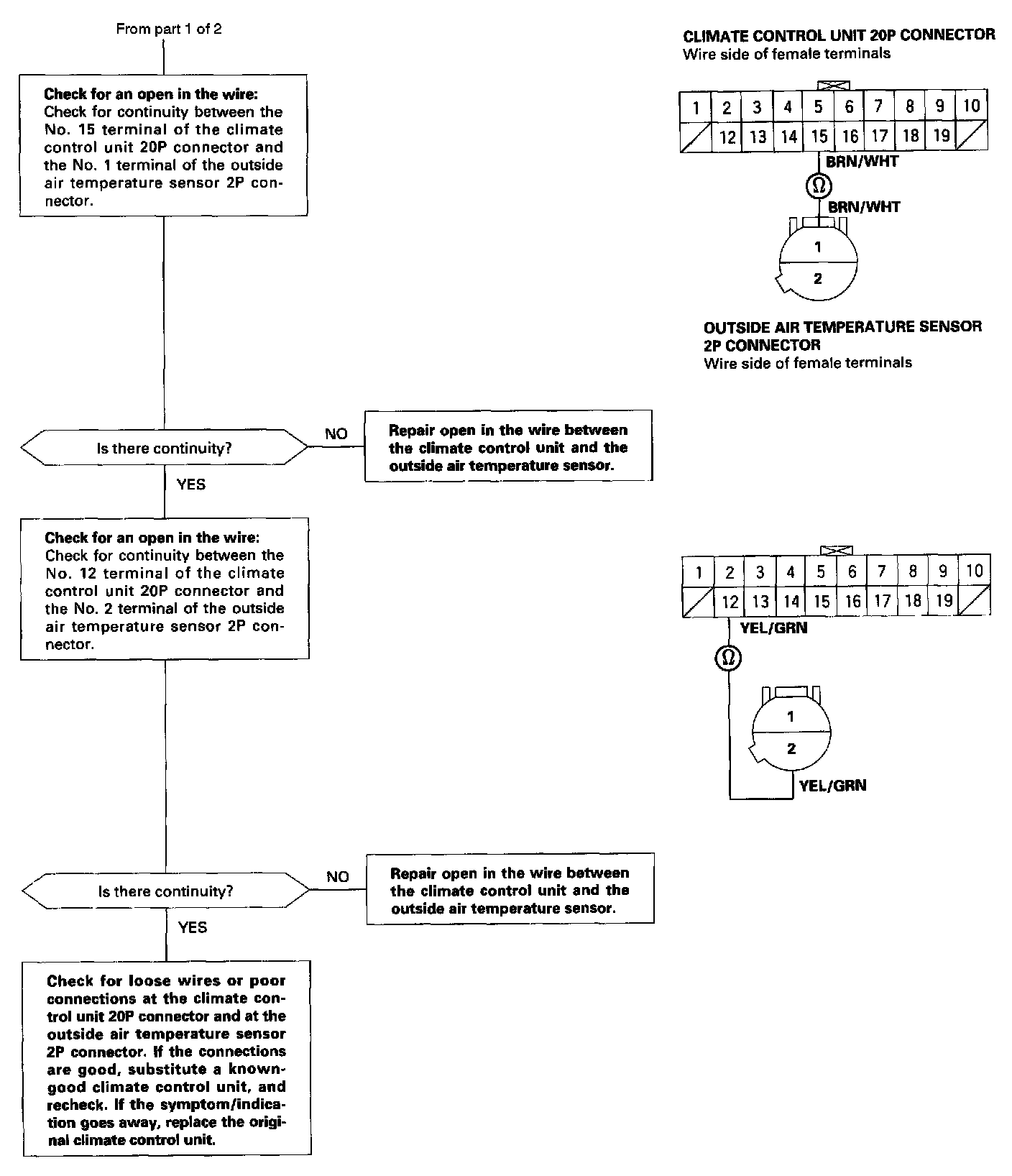

Outside Air Temperature Sensor (Part 2 Of 2):

Self-diagnosis indicator light B comes on: A problem in the outside air temperature sensor circuit.

The outside air temperature sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the temperature outside the vehicle increases.
