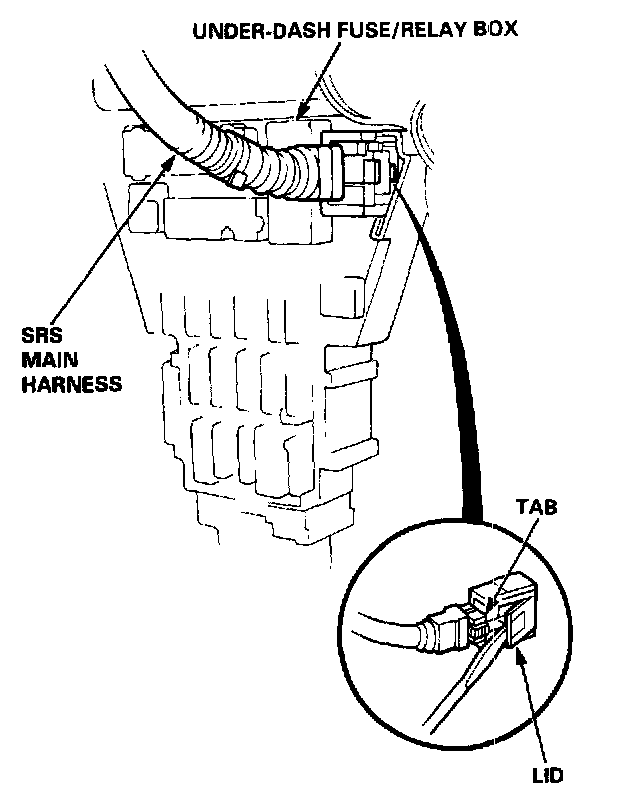

Disconnecting The SRS Connector At The Fuse Box






CAUTION: Avoid breaking the connector; it's double-locked.

1. First lift the connector lid with a thin screwdriver, then press the connector tab down, and pull the connector out.
2. To reinstall the connector, push it into position until it clicks, then close its lid.
