Daytime Running Lamp Control Unit: Testing and Inspection

1. Remove the dashboard lower cover and knee bolster.

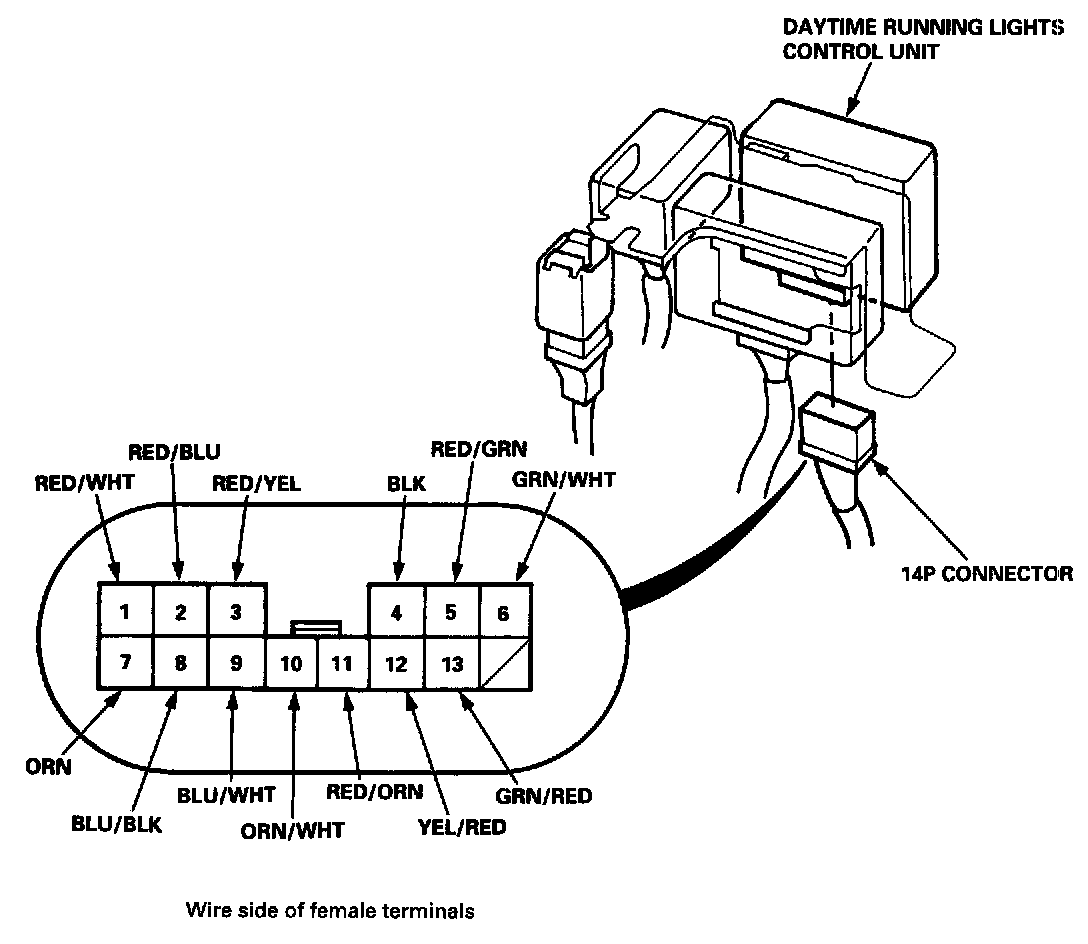

2. Disconnect the 14P connector from the control unit.








3. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

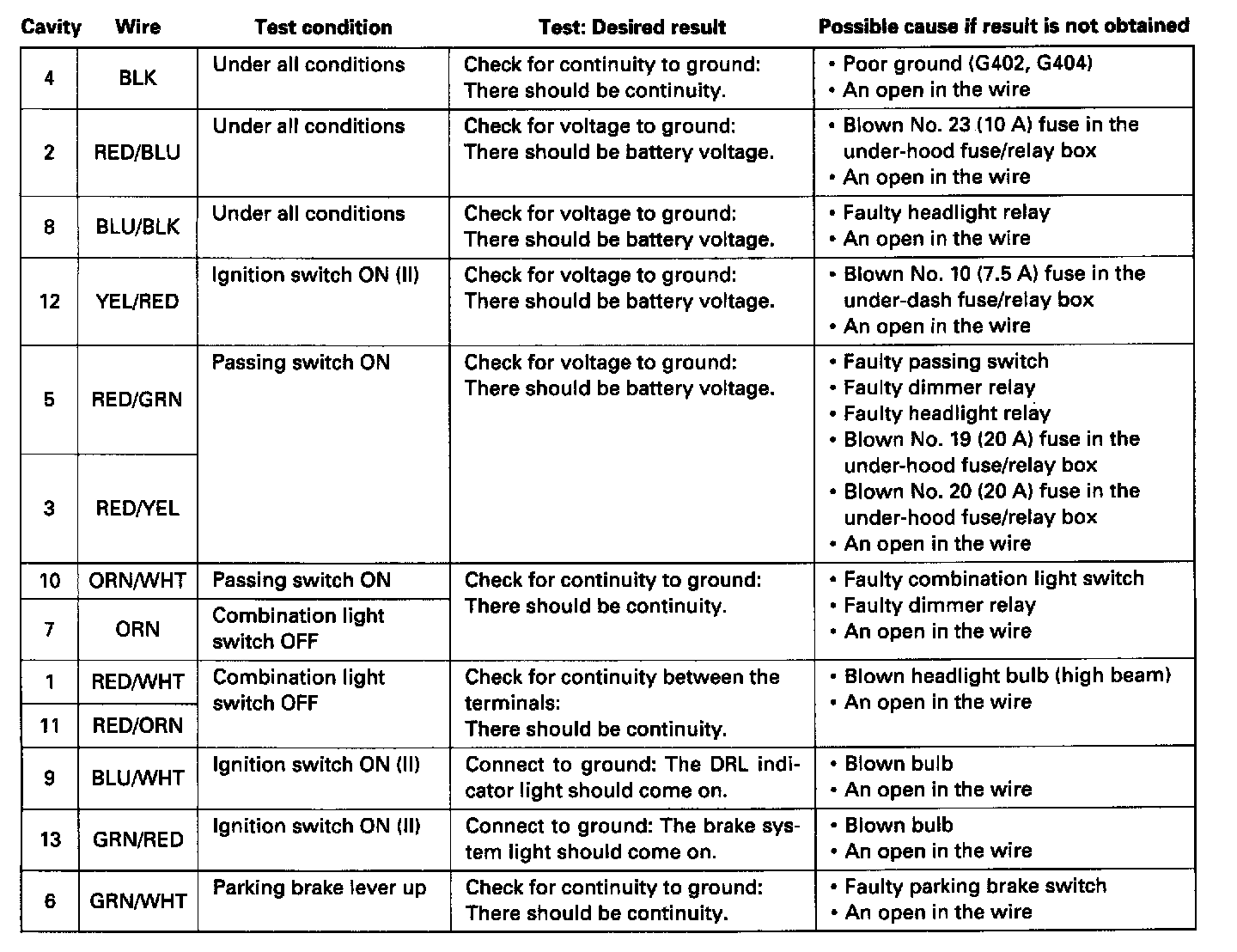

^ If the terminals look OK, make the following input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
