Seat Heater Control Relay

1. Remove the Seat. then remove the relay from the bottom of the seat.

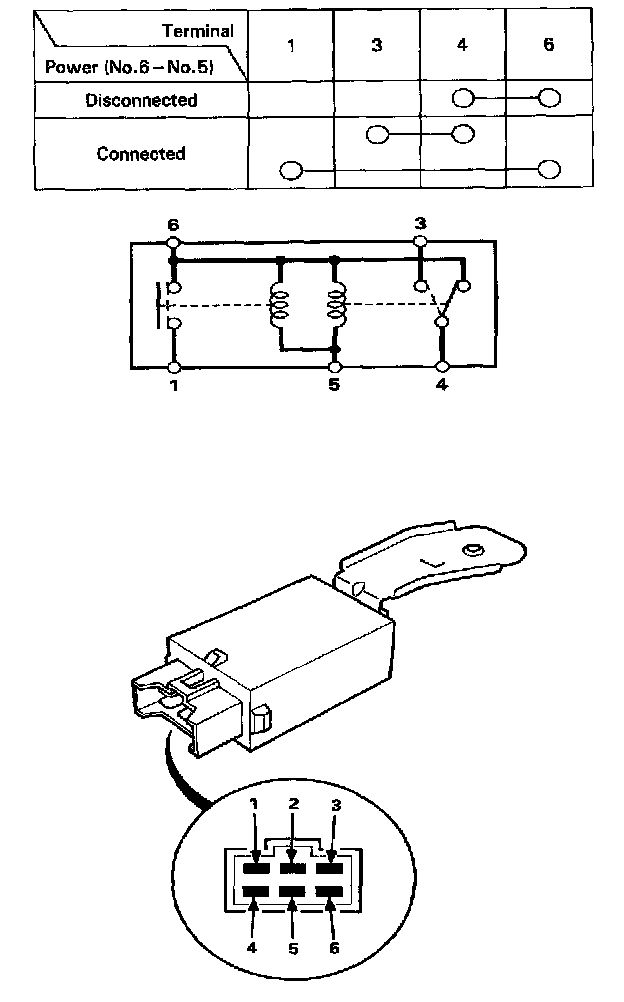

2. Check for continuity between the relay terminals.
^ There should be continuity between No.1 and No.6 terminals, and the No.3 and No.4 terminals when power and ground are connected to the No.6 and No.5 terminals.
^ There should be continuity between the No.6 and No.4 terminals when power is disconnected.
