Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Locations >> Component Locations

Component Locations

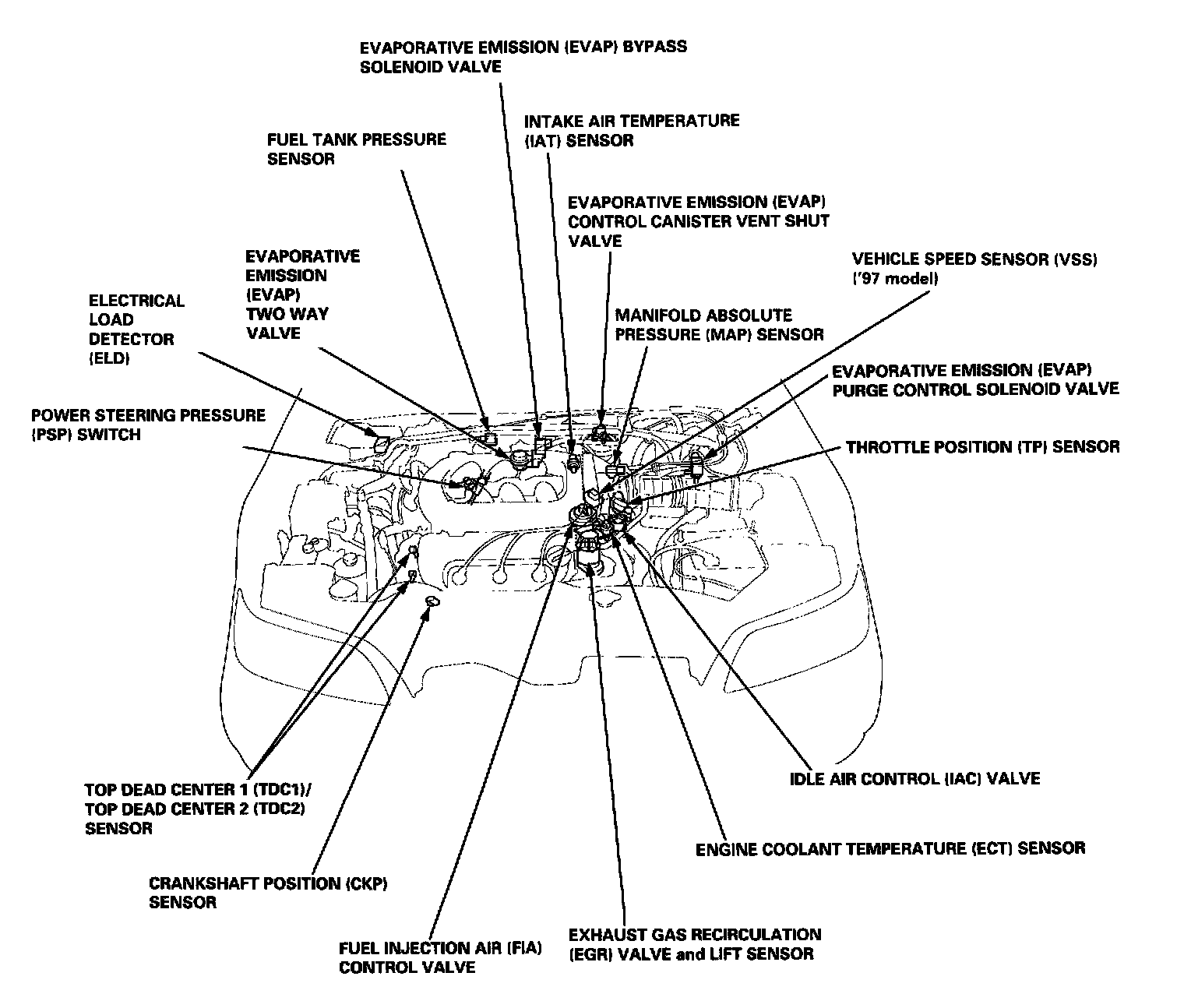

Part 1 Of 3:

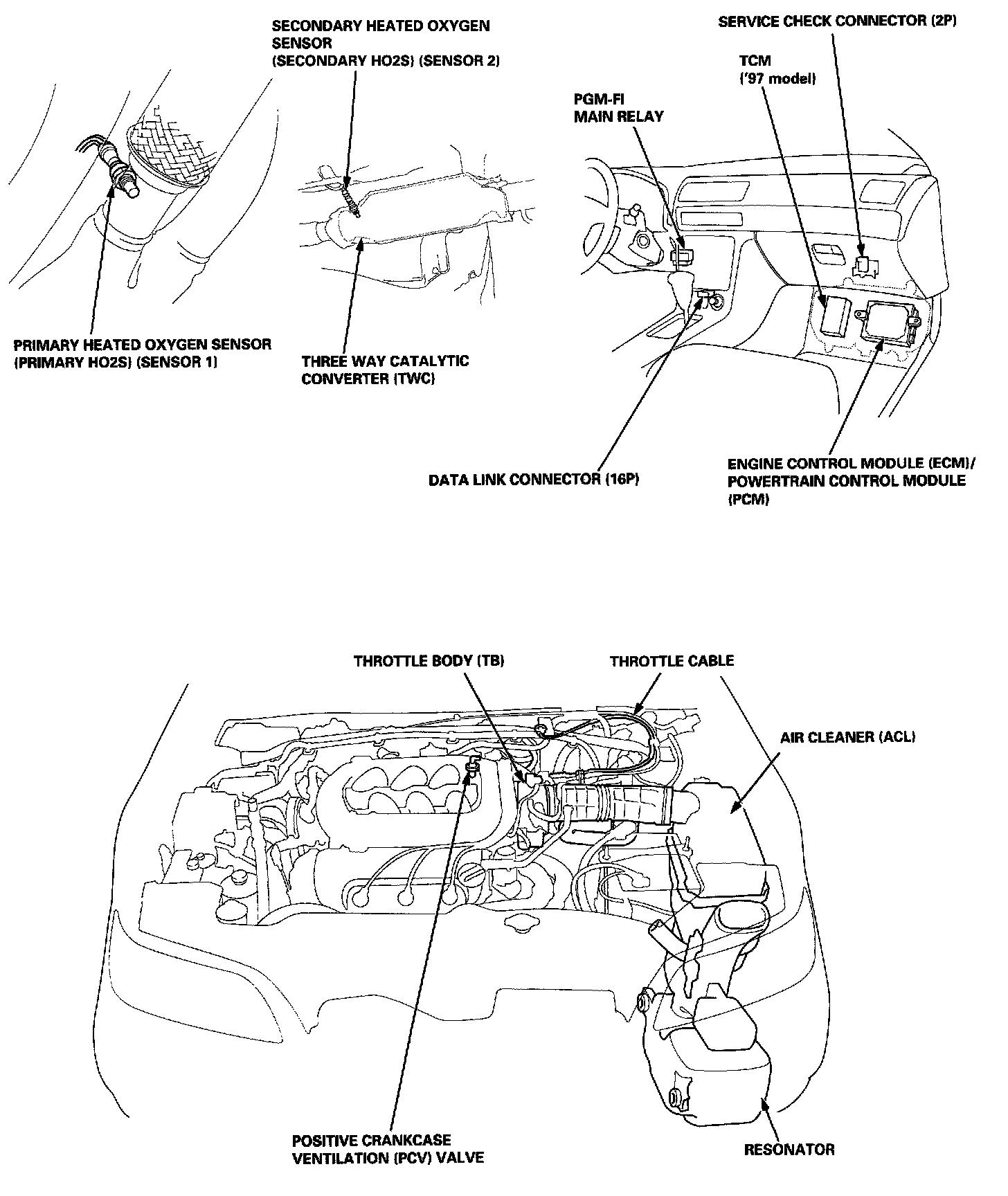

Part 2 Of 3:

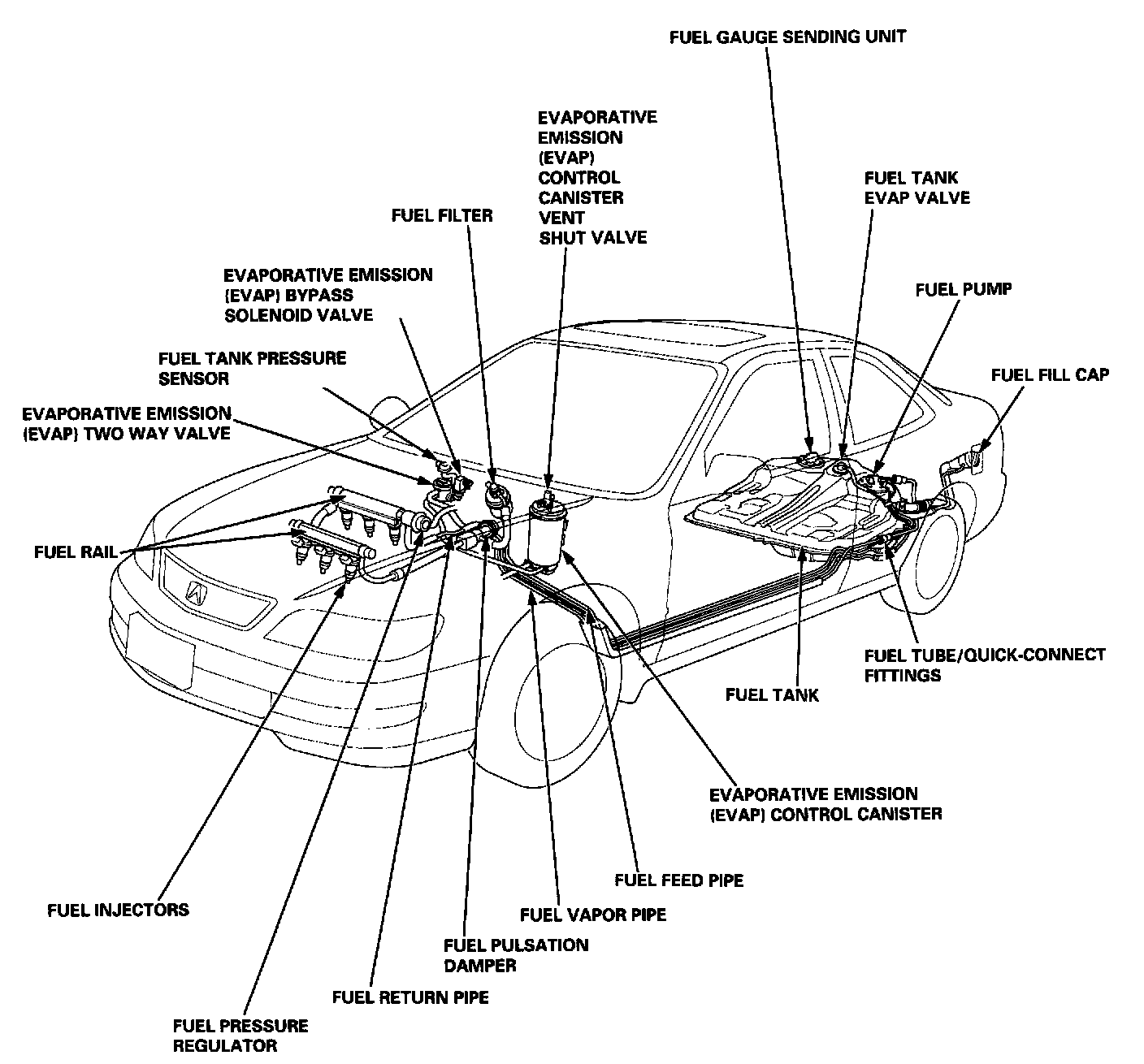

Part 3 Of 3:
