Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Throttle Body >> Service and Repair >> Removal

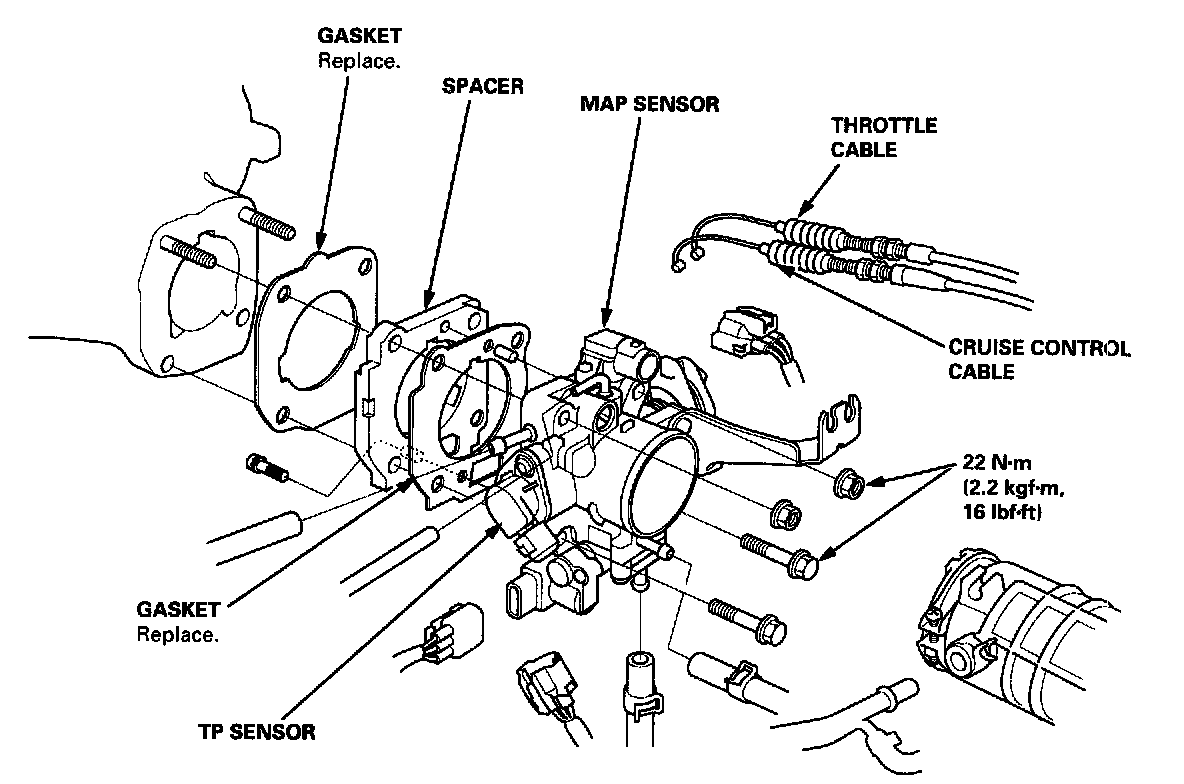

Removal




Removal

NOTE:
- Do not adjust the throttle stop screw.
- After reassembly, adjust the throttle cable, and cruise control cable.
- The TP sensor is not removable.
