Brake Switch Signal

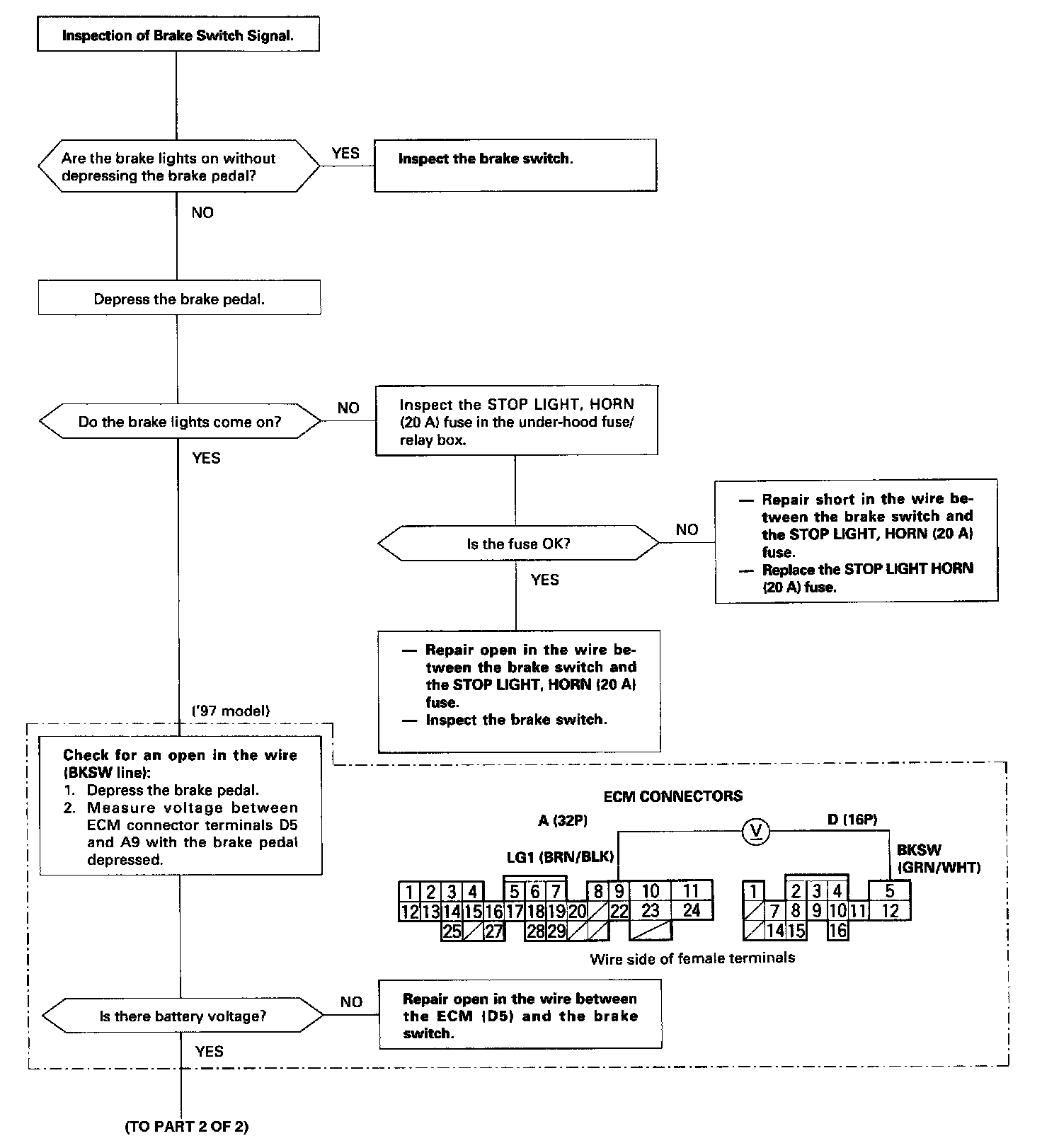

Part 1 Of 2:

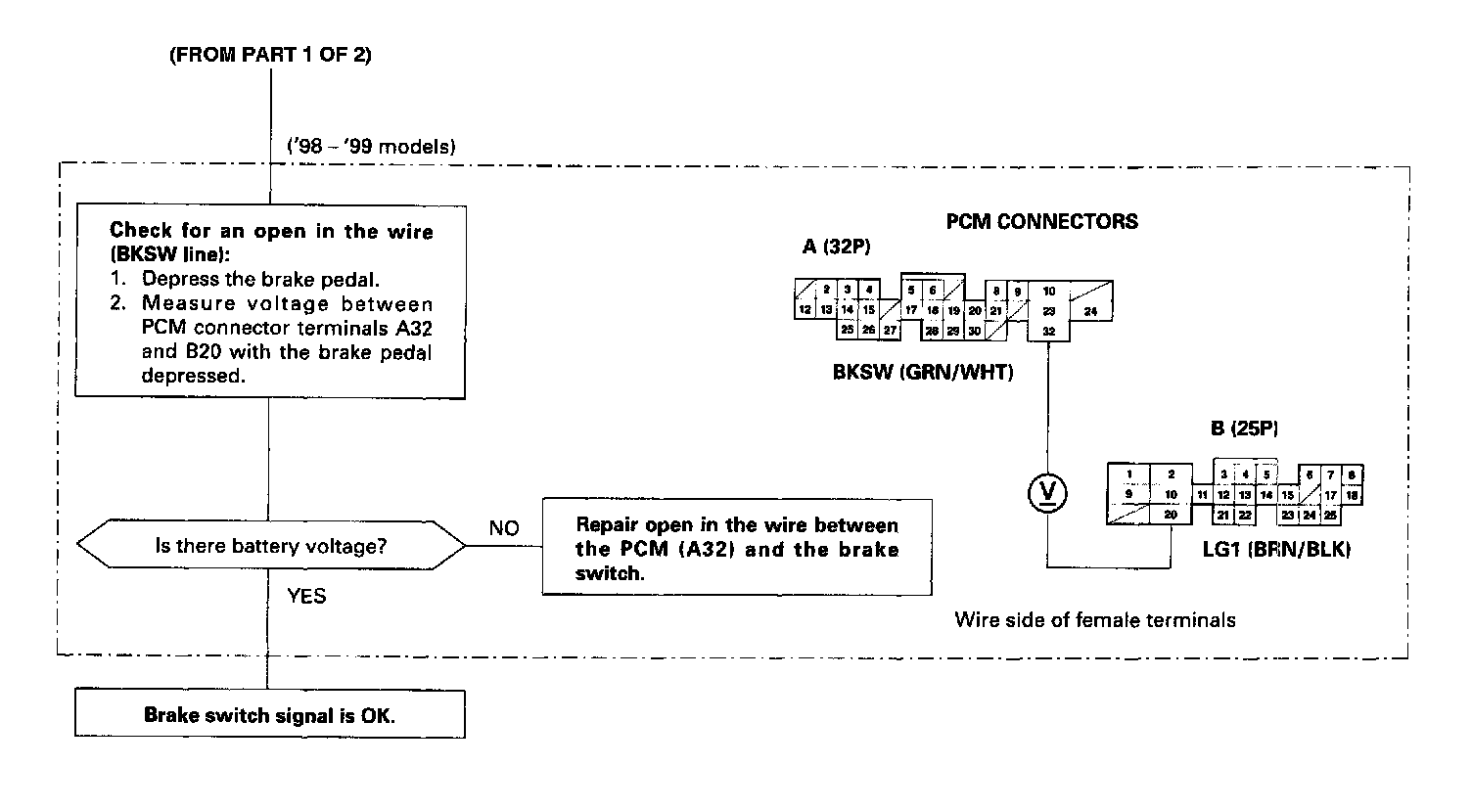

Part 2 Of 2:




This signals the ECM/PCM when the brake pedal is depressed.
