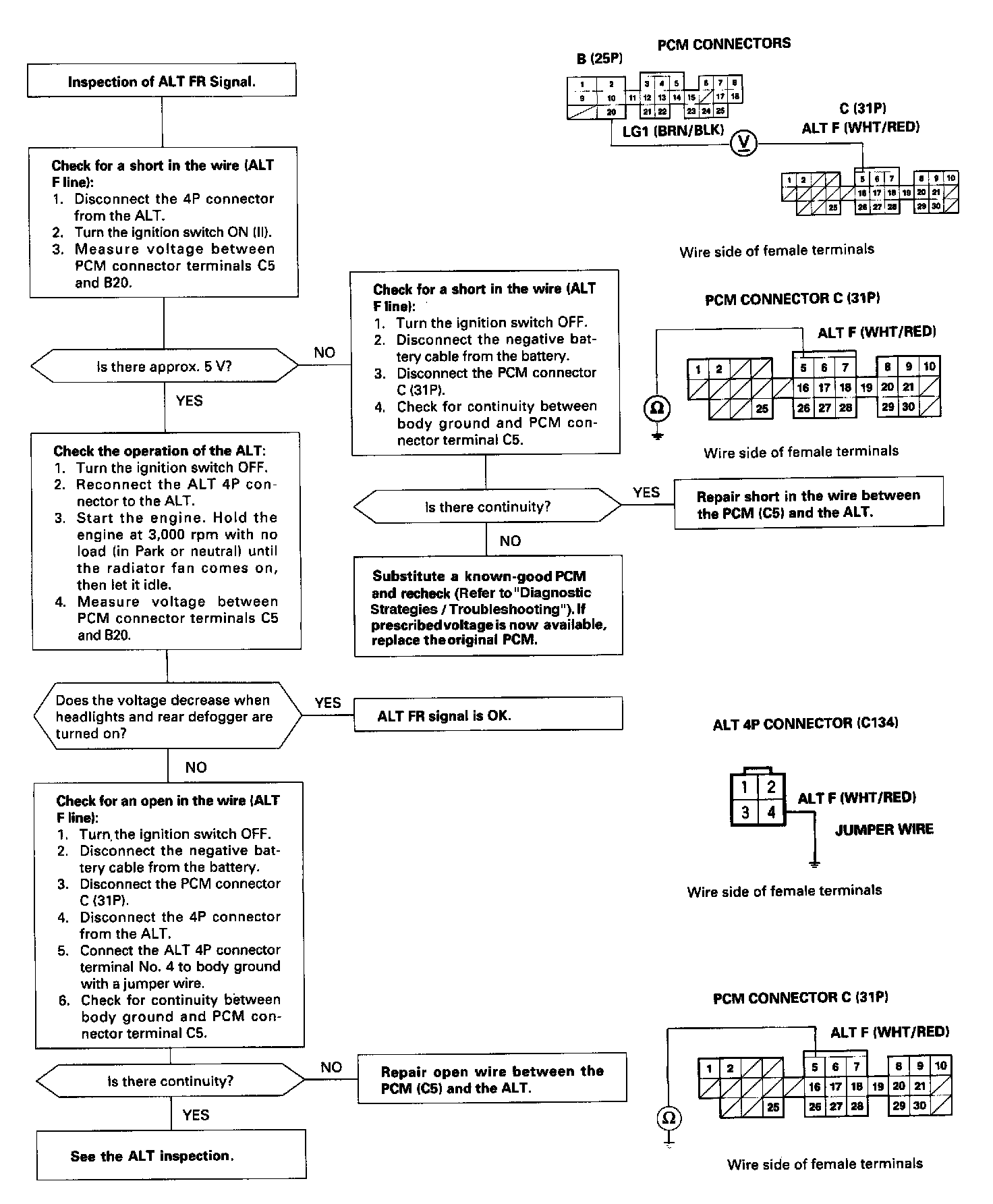

Alternator FR Signal Circuit Troubleshooting
Alternator FR Signal Circuit Troubleshooting
This signals the ECM/PCM when the Alternator (ALT) is charging.
