A/C Signal Circuit Troubleshooting

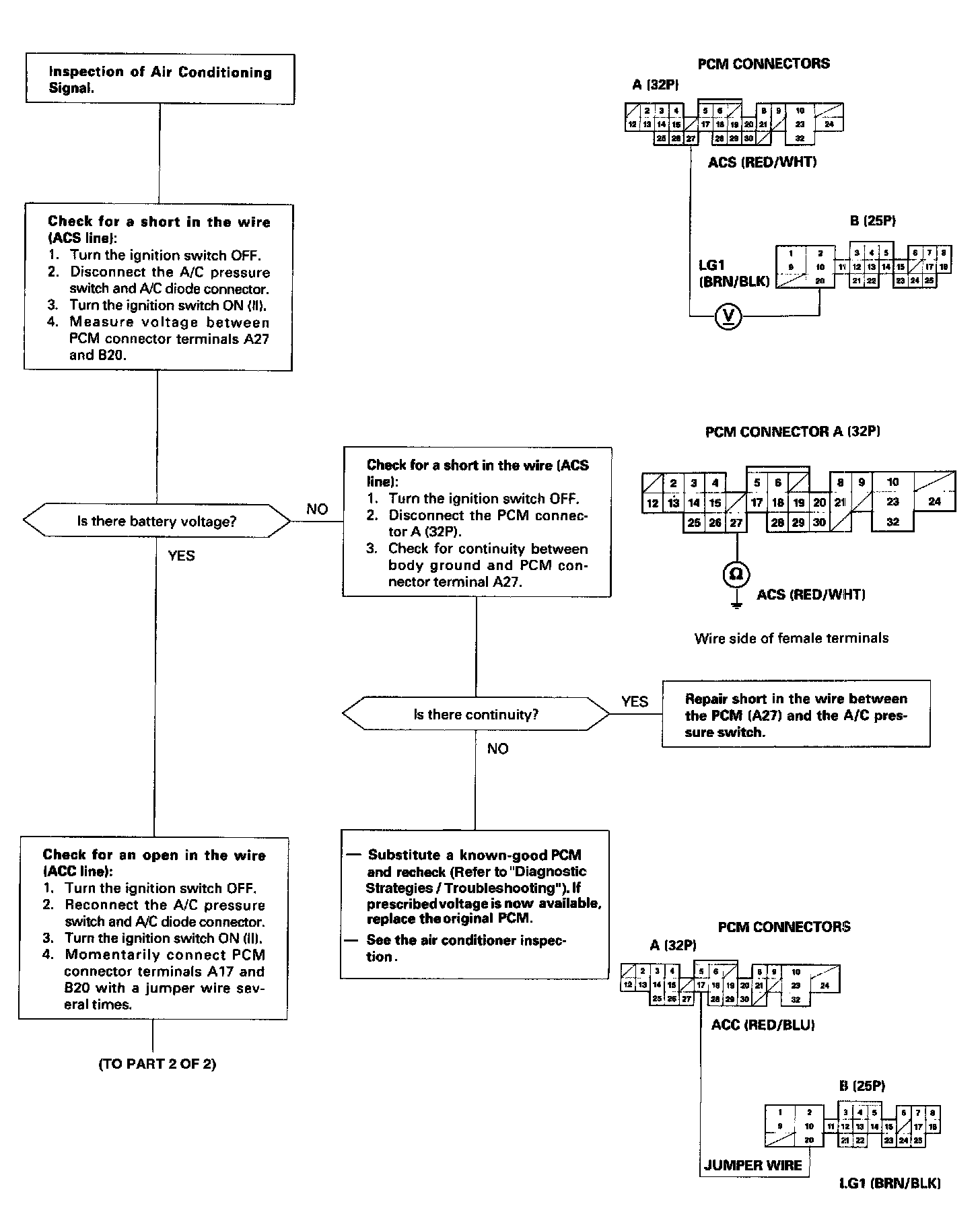

Part 1 Of 2:

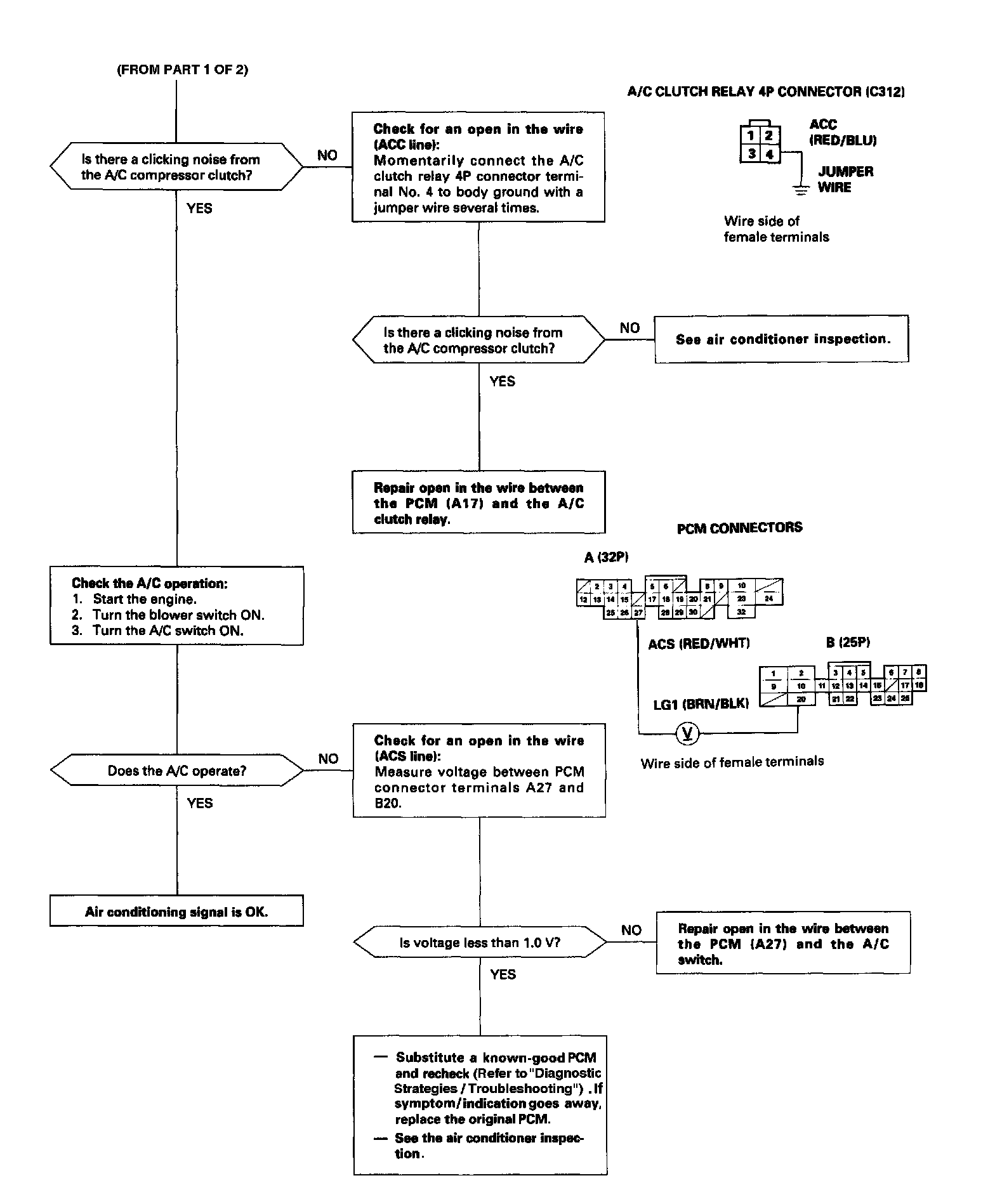

Part 2 Of 2:




This signals the ECM/PCM when there is a demand for cooling from the air conditioning system.
