Dashboard Removal and Installation

Removal:

SRS components are located in this area.

Review the SRS component locations, precautions, and procedures in the Restraints before performing repairs or service.

NOTE: An assistant is helpful when removing and installing the dashboard. Take care not to scratch the dashboard, body and related parts. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.

1. Remove:
-Dashboard lower cover
-Knee bolster
-Glove box
-Front and rear consoles
-Side defogger trim

2. Lower the steering column.

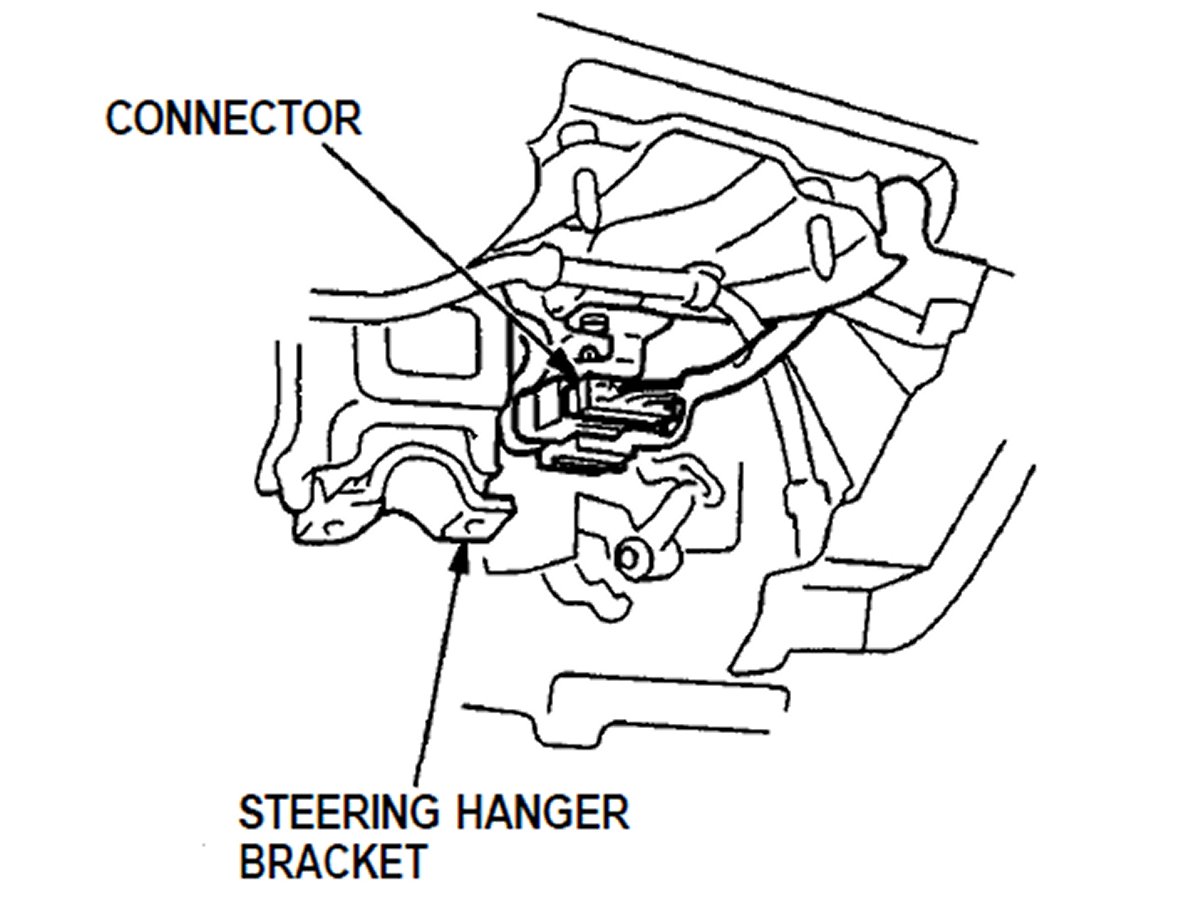

WARNING To avoid accidental deployment and possible injury, always disconnect the driver's airbag connector before lowering the steering column.

NOTE: To prevent damage to the steering column, wrap it with a shop towel.

3. Remove the front passenger's airbag.

WARNING To avoid accidental deployment and possible injury, always disconnect the front passenger's airbag connector when the SRS main harness is disconnected.

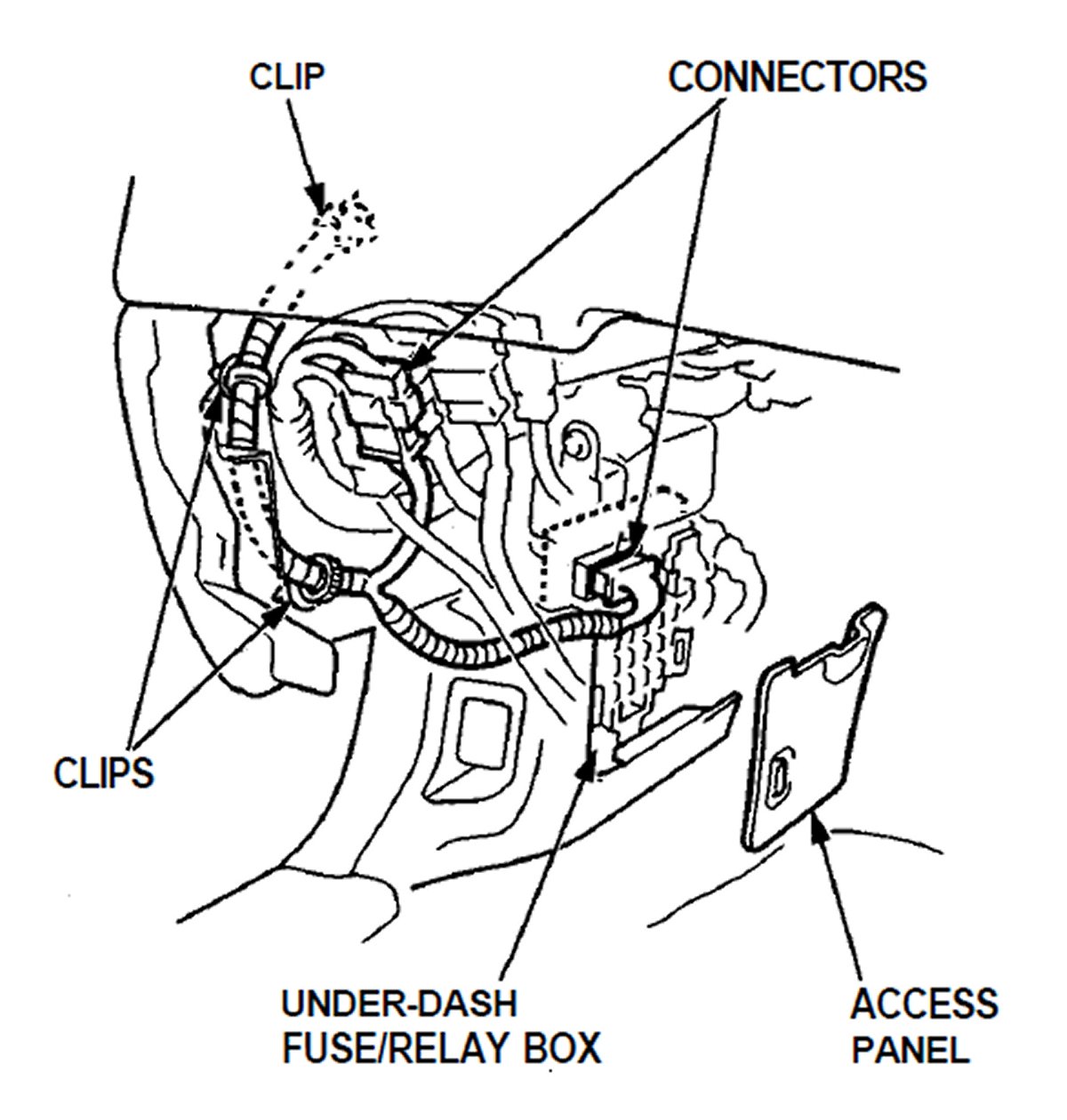

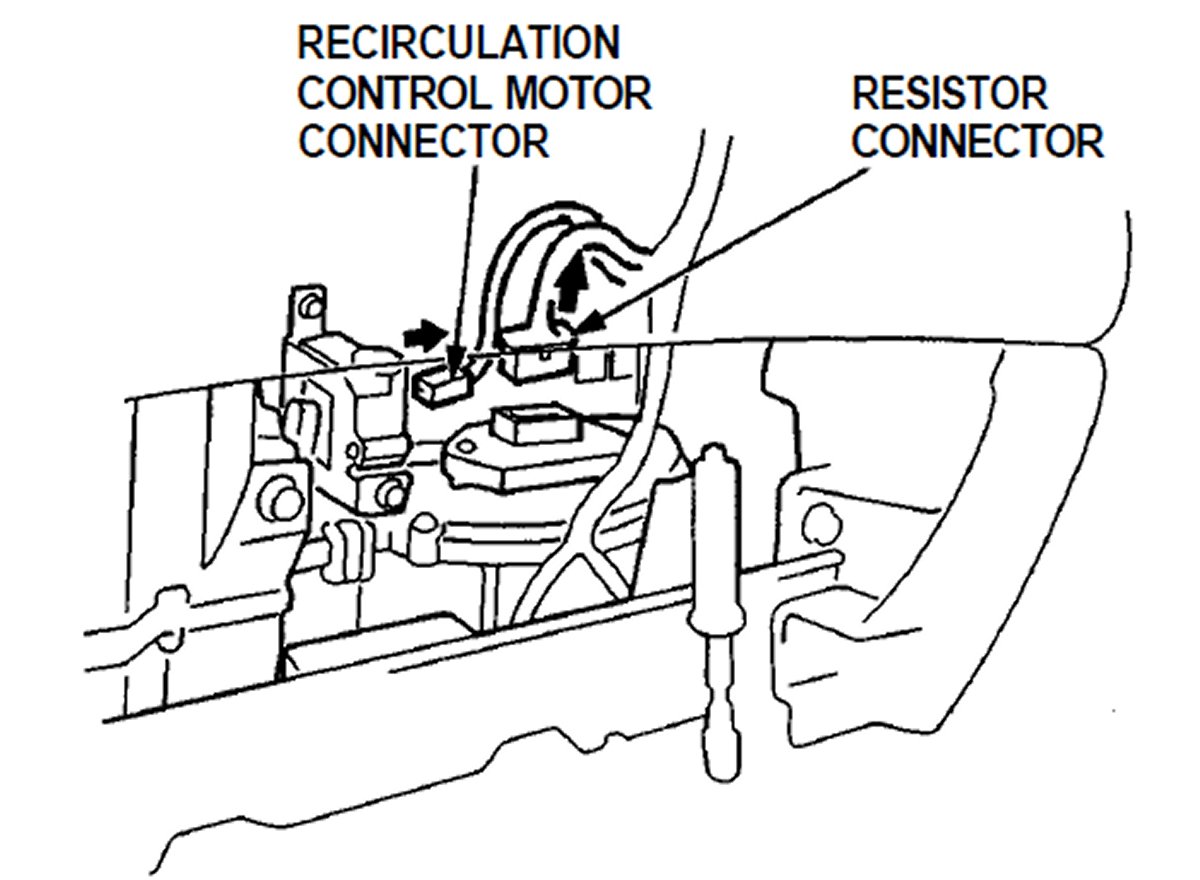

4. Disconnect the dashboard Wire harness connectors, recirculation control motor connector and resistor connector.

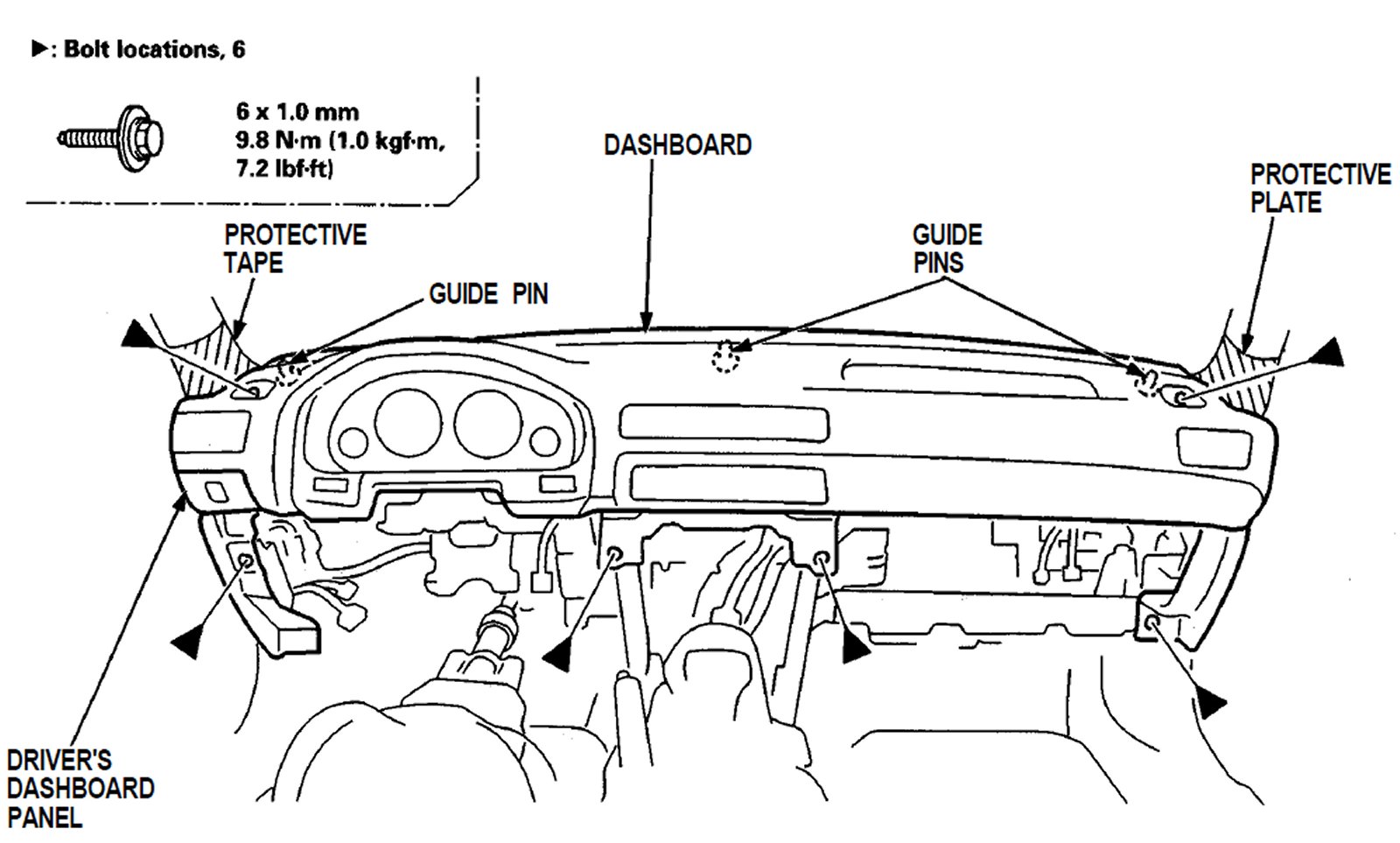

5. Remove the bolts, then lift and remove the dashboard.

NOTE: If necessary, remove the screws from behind the driver's dashboard Panel.then remove the driver's dashboard panel.

CAUTION: Use protective plates on the bottom of the front pillar trim.


6. Installation is the reverse of the removal procedure.

NOTE: Make sure the dashboard fits onto the guide pins correctly. Before tightening the bolts, make sure the dashboard wire harnesses are not pinched. Make sure the connectors are connected properly. Enter the anti-theft code for the radio, then enter the customer's radio station presets.
