Condenser Fan Flowchart

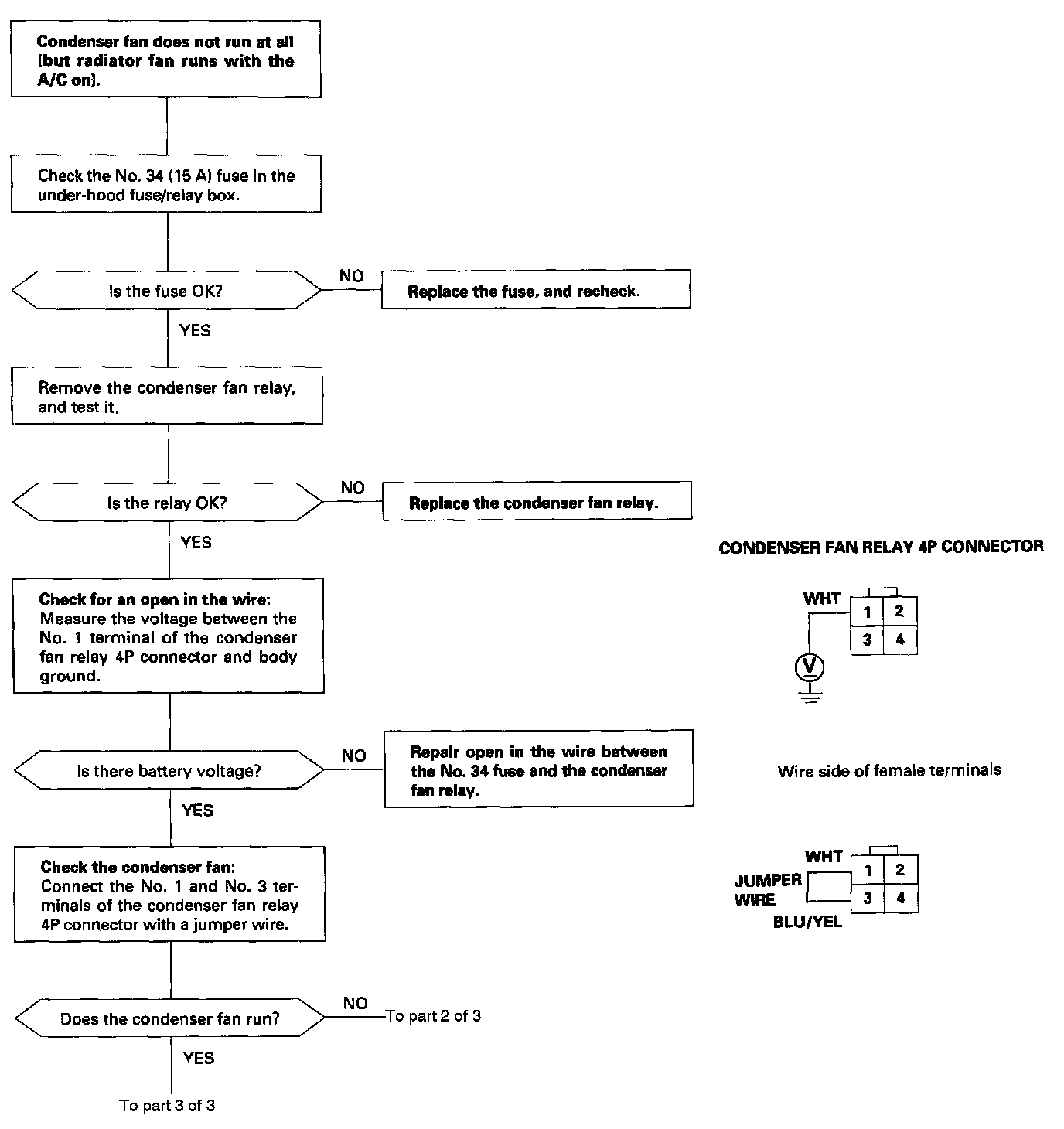

Condenser Fan (Part 1 Of 3):

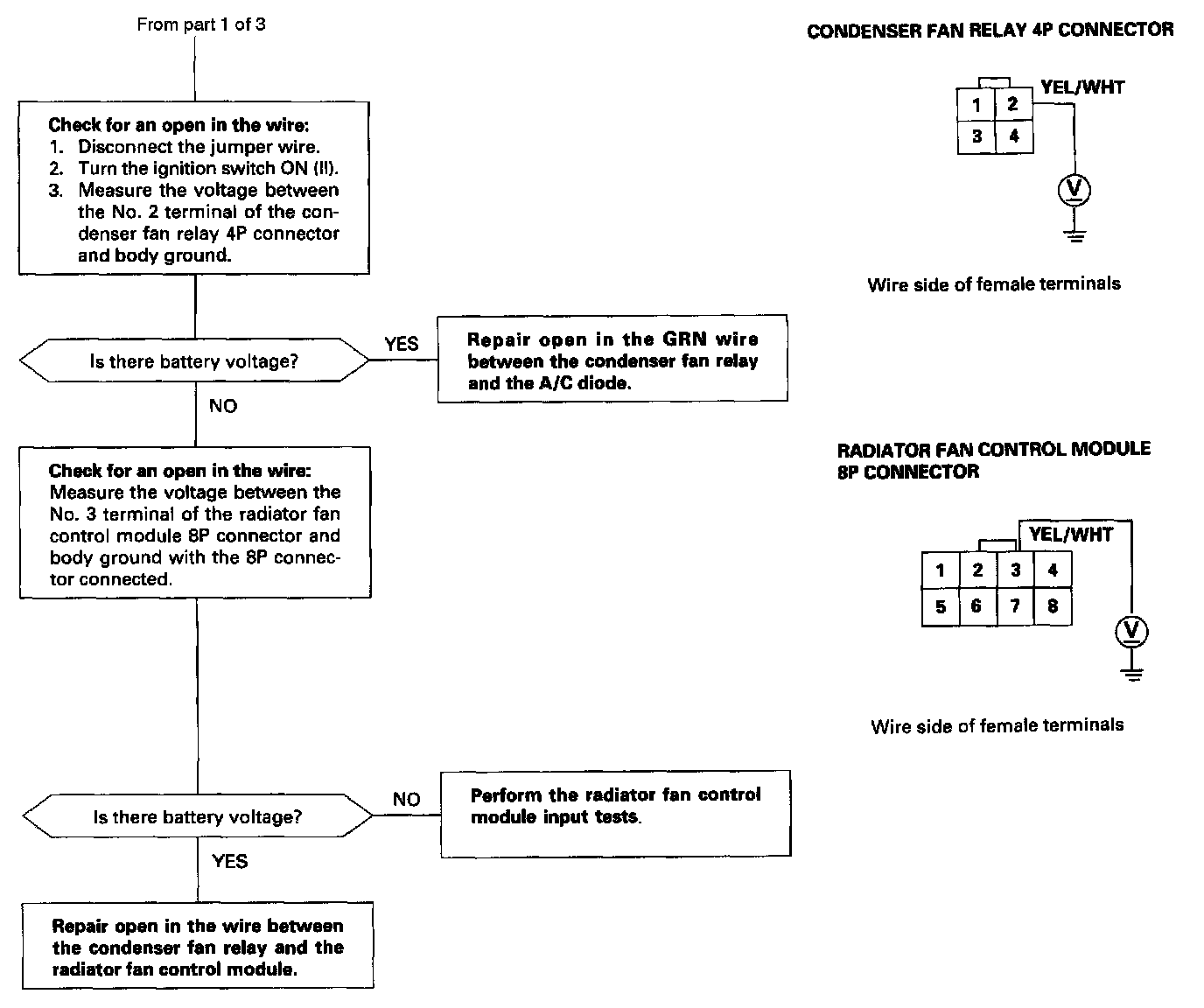

Condenser Fan (Part 2 Of 3):

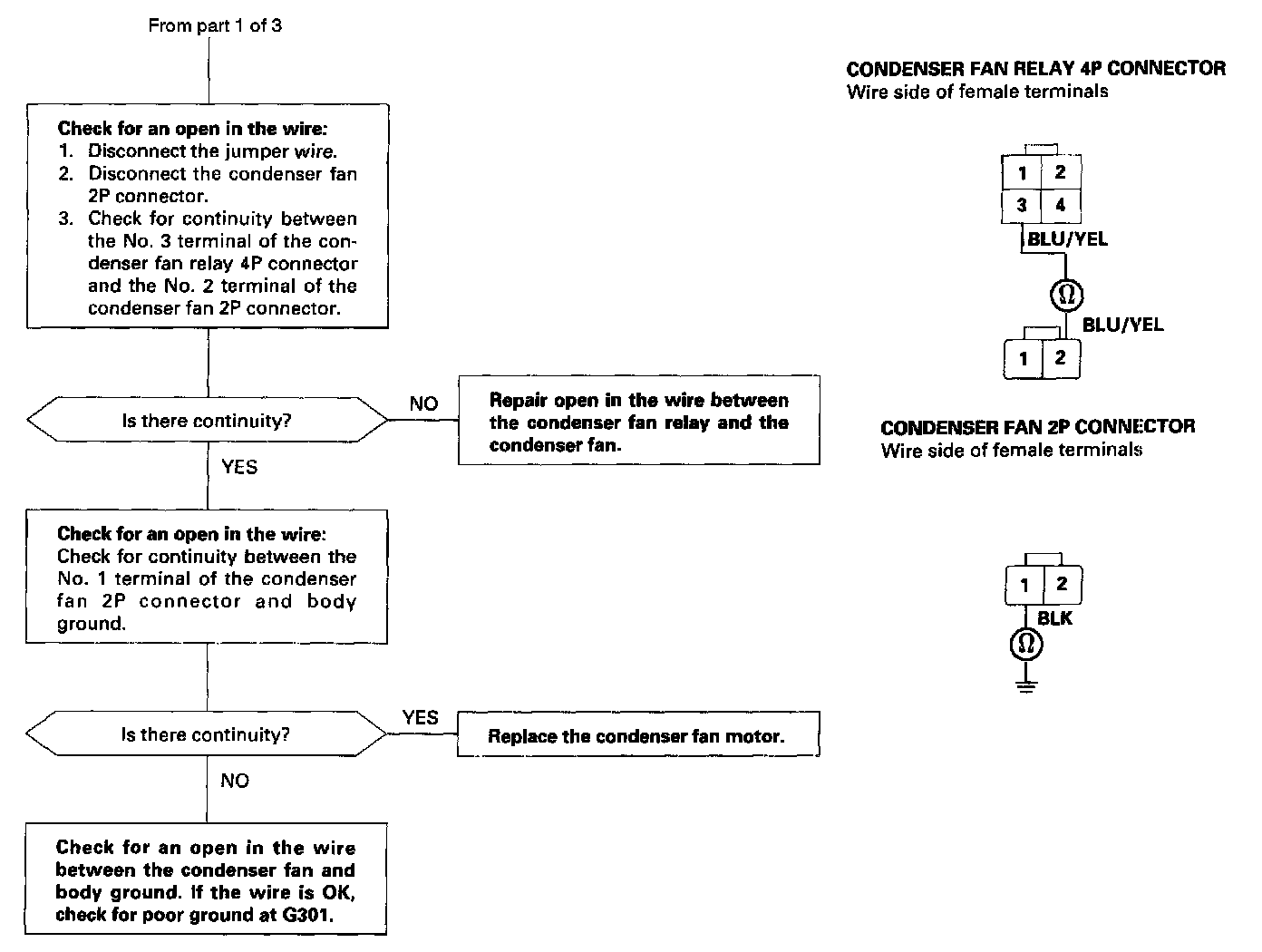

Condenser Fan (Part 3 Of 3):
