Blower Motor: Testing and Inspection

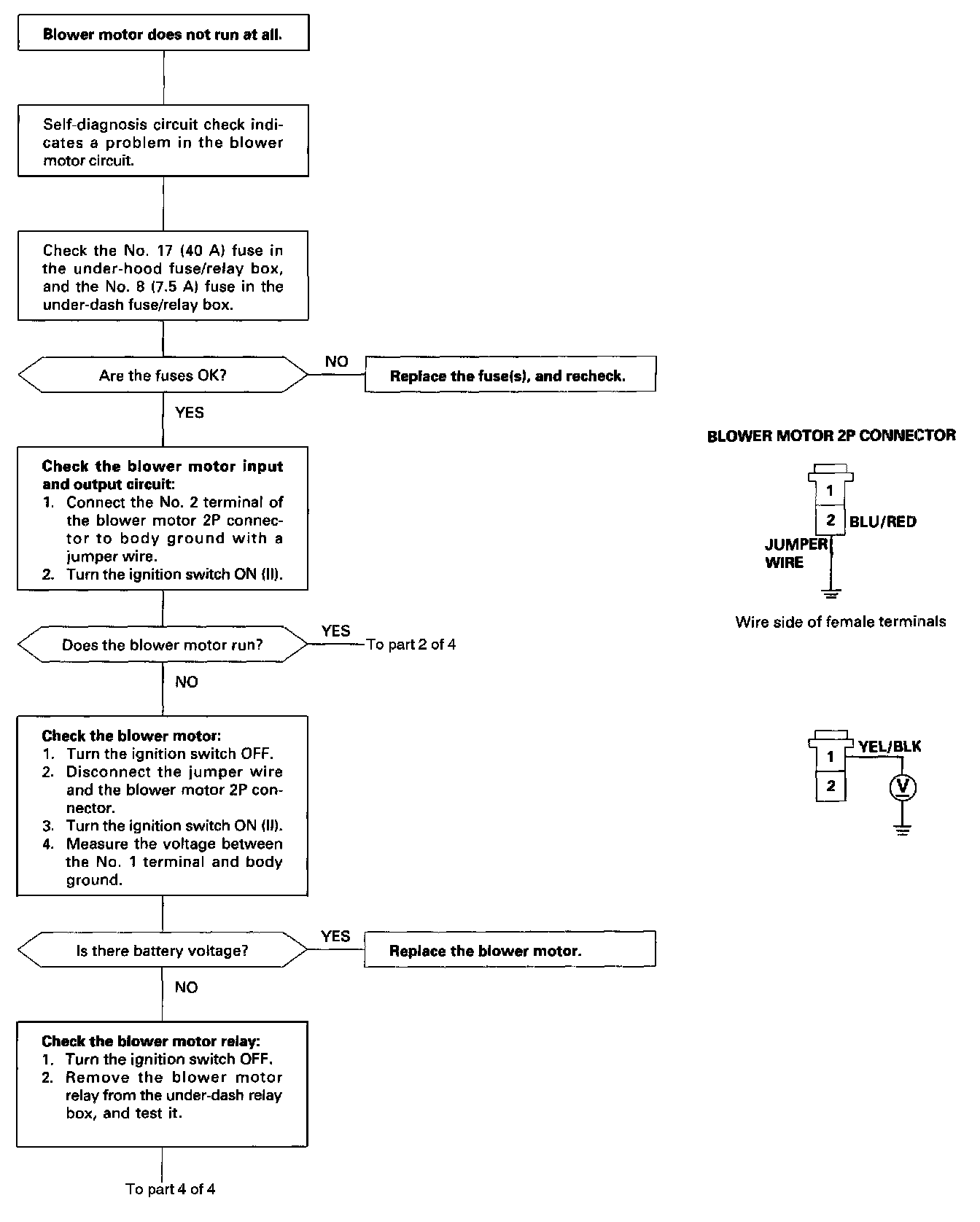

Blower Motor (Part 1 Of 4):

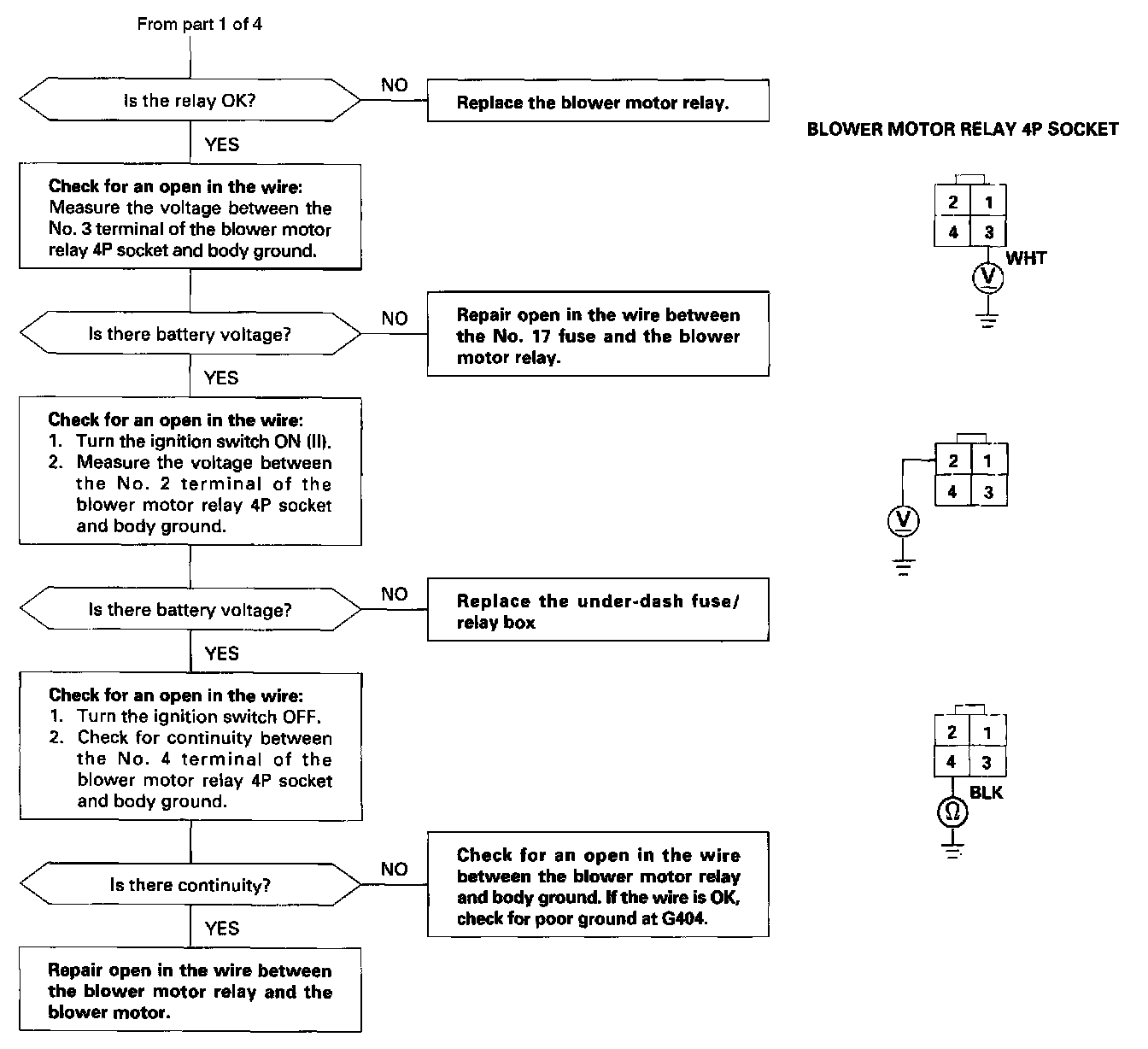

Blower Motor (Part 2 Of 4):

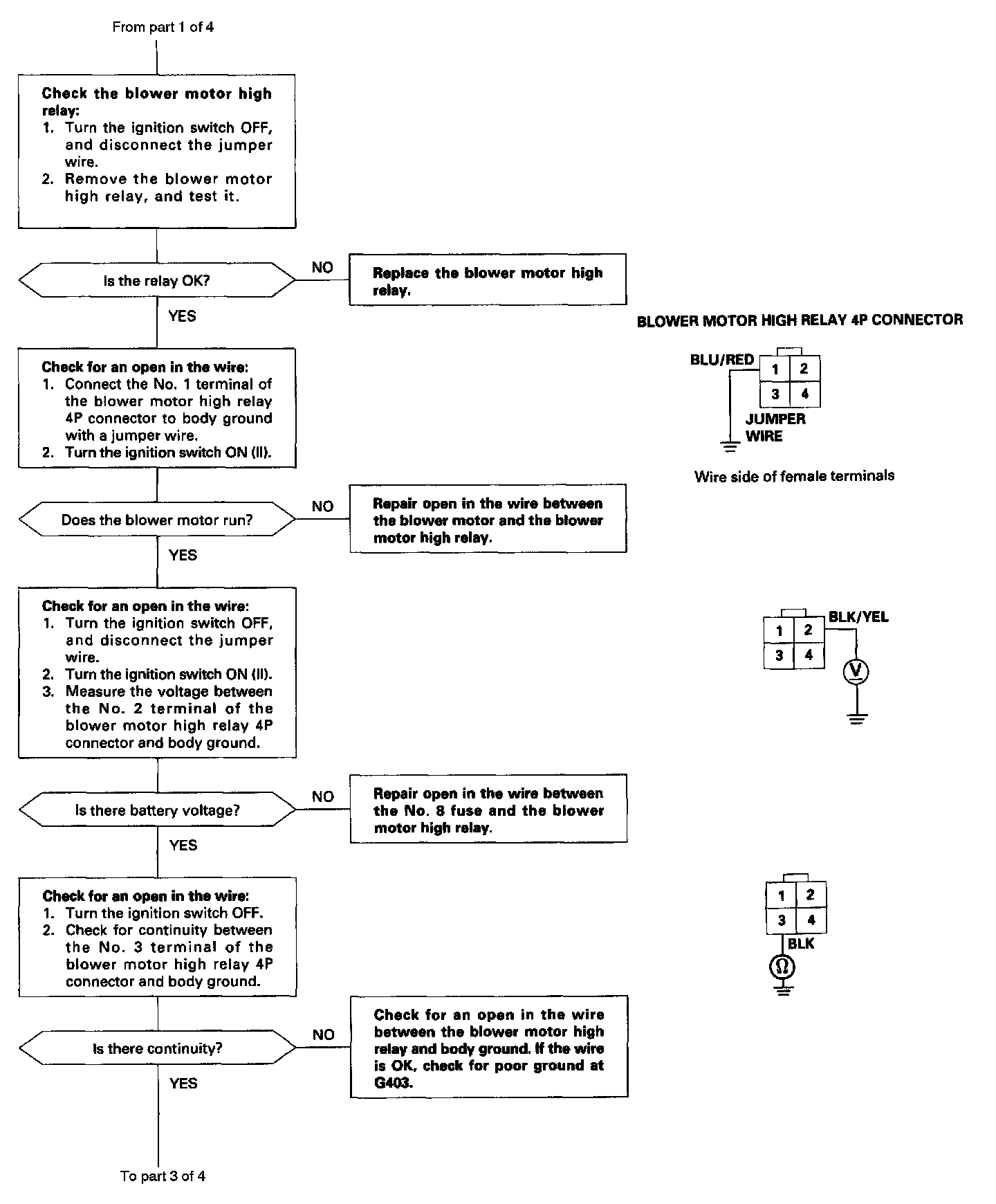

Blower Motor (Part 3 Of 4):

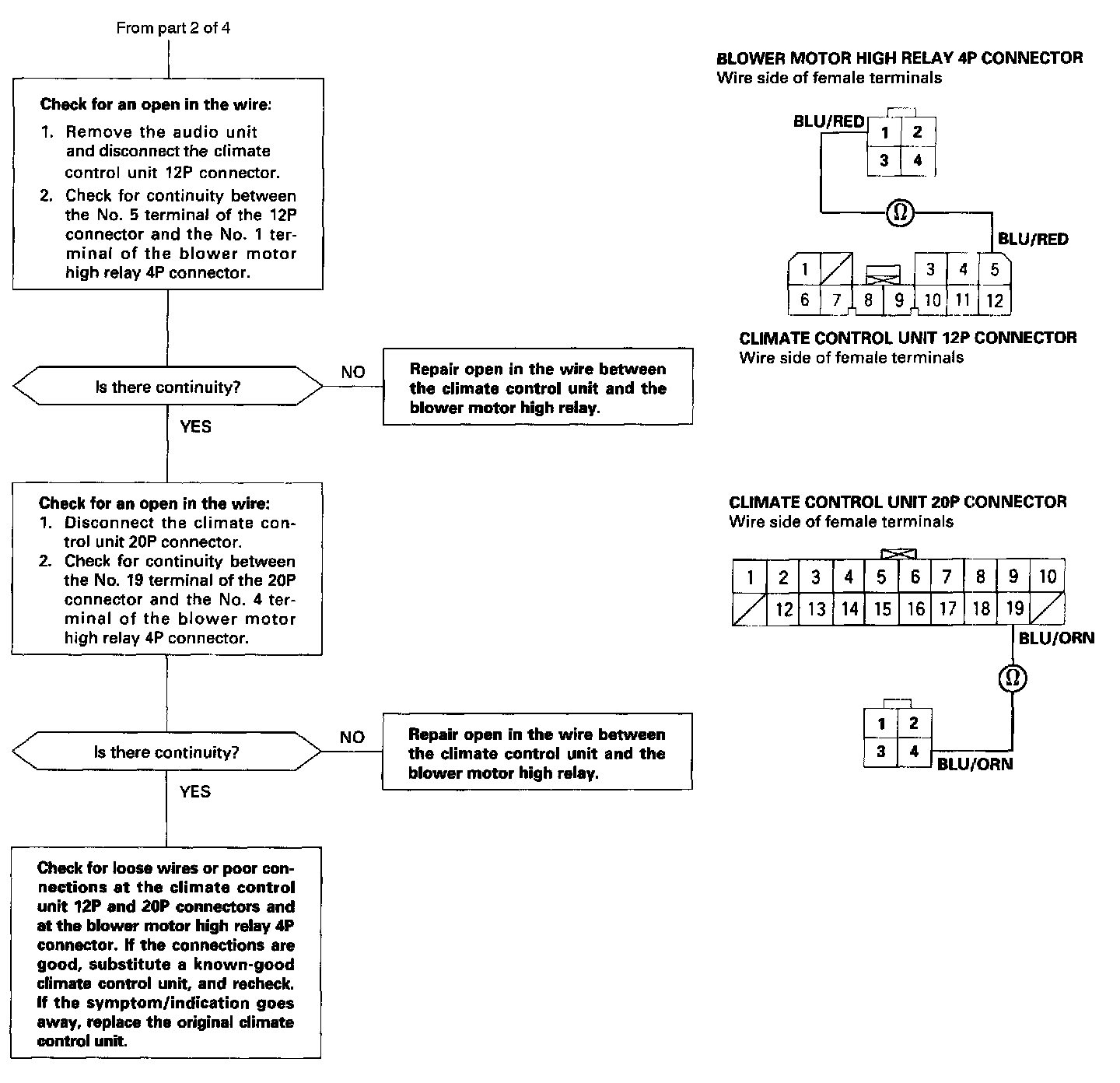

Blower Motor (Part 4 Of 4):

Self-diagnosis indicator light F comes on: A problem in the blower motor circuit.

The speed of the blower motor is controlled by signals sent from the climate control unit.
