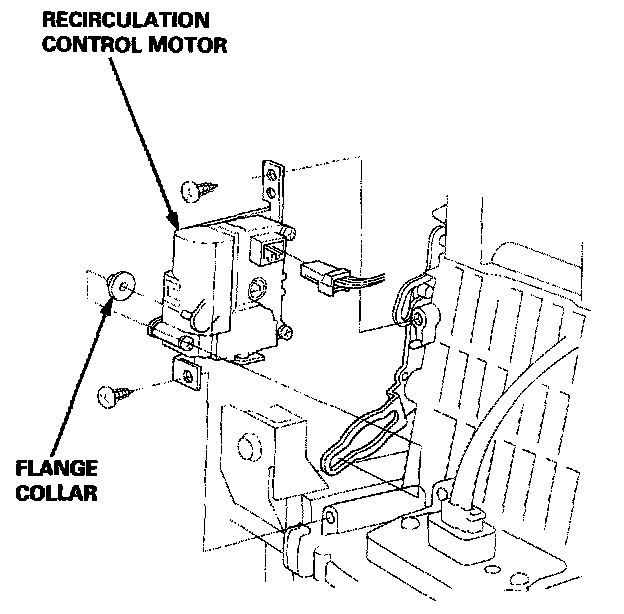

Recirculation Control Motor

1. Disconnect the connector from the recirculation control motor, remove the self-tapping screws, the recirculation control motor and the flange collar.
2. Install in the reverse order of removal. After installation, make sure the recirculation control motor runs smoothly.
