Inspection

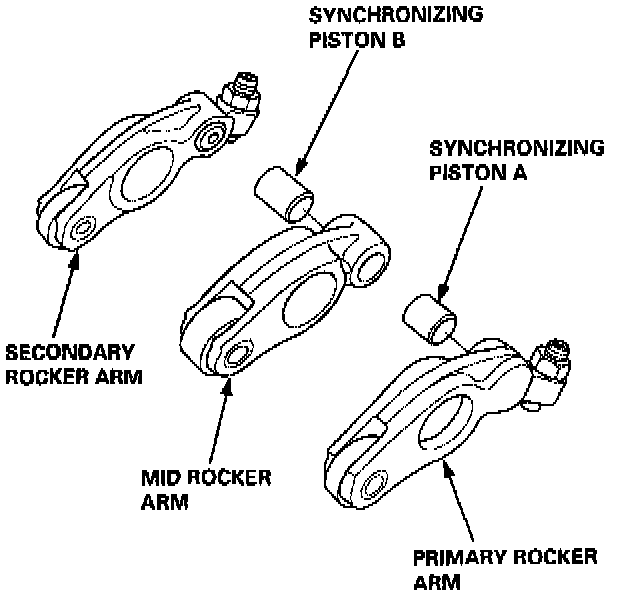

NOTE: When reassembling the primary rocker arm, carefully apply air pressure to the oil passage of the rocker arm.





1. Inspect the rocker arm piston. Push it manually.
- If it does not move smoothly, replace the rocker arm assembly.

NOTE:
- Apply oil to the pistons when reassembling.
- Bundle the rocker arms with a rubber band to keep them together as a set.
