Connecting Rod: Testing and Inspection

SELECTION

CONNECTING ROD BOLT INSPECTION

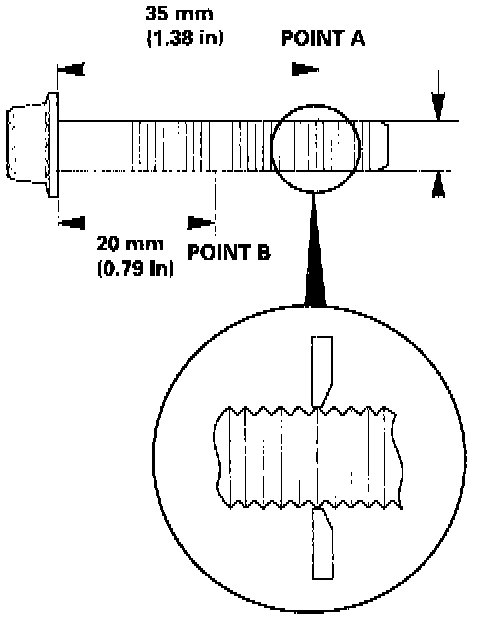

1. Measure the diameter of each connecting rod bolt at point A and point B.
2. Calculate the difference in diameter between point A and point B.

Point A - Point B= Difference in Diameter

Difference in Diameter:
Specification: 0 - 0.1 mm (0 - 0.004 inch)

3. If the difference in diameter is out of tolerance, replace the connecting rod bolt.
