Removal

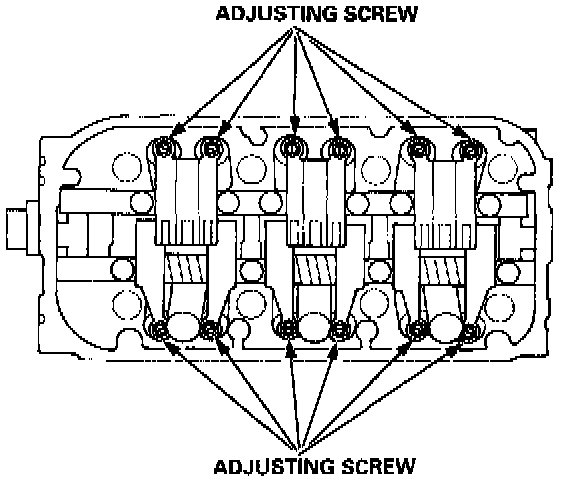

1. Loosen the adjusting screws, then remove the bolts and the rocker arm assembly.

NOTE:
- Unscrew the rocker shaft mounting bolts two turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
- When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

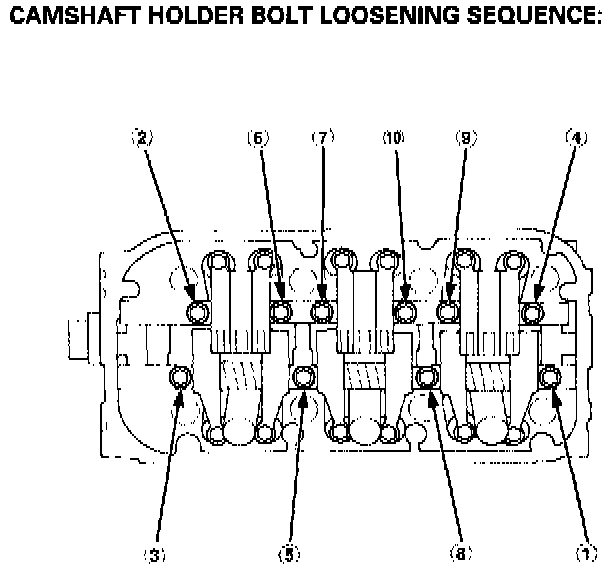

CAMSHAFT HOLDER BOLT LOOSENING SEQUENCE
