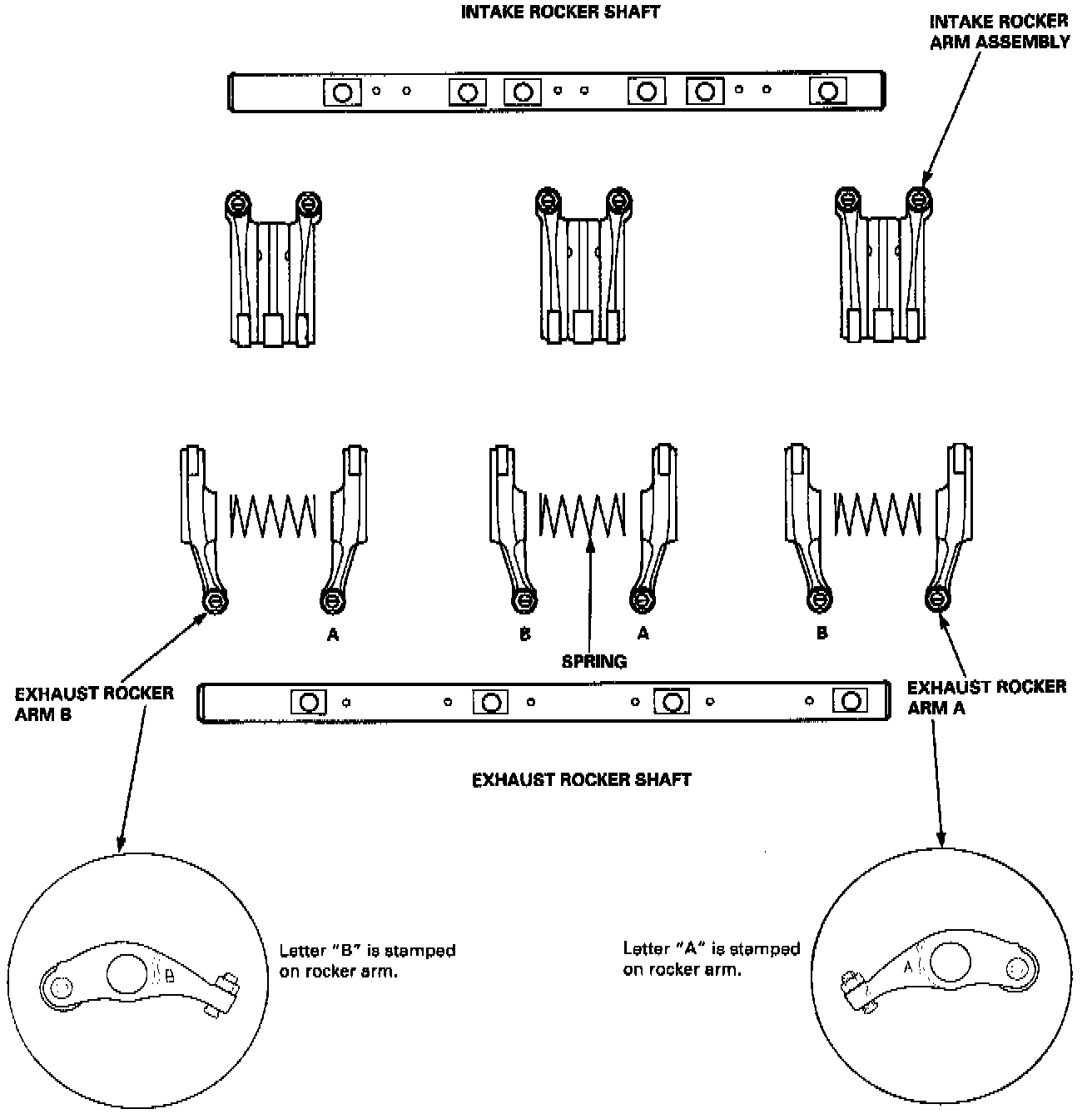

Disassembly/Reassembly

NOTE:
- Identify parts as they are removed to ensure reinstallation in the original locations.
- Inspect the rocker shafts rocker arms.
- Rocker arms must be installed in the same positions if reused.
- When removing or installing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep springs and rocker arms on the shaft.
