Radiator: Service and Repair

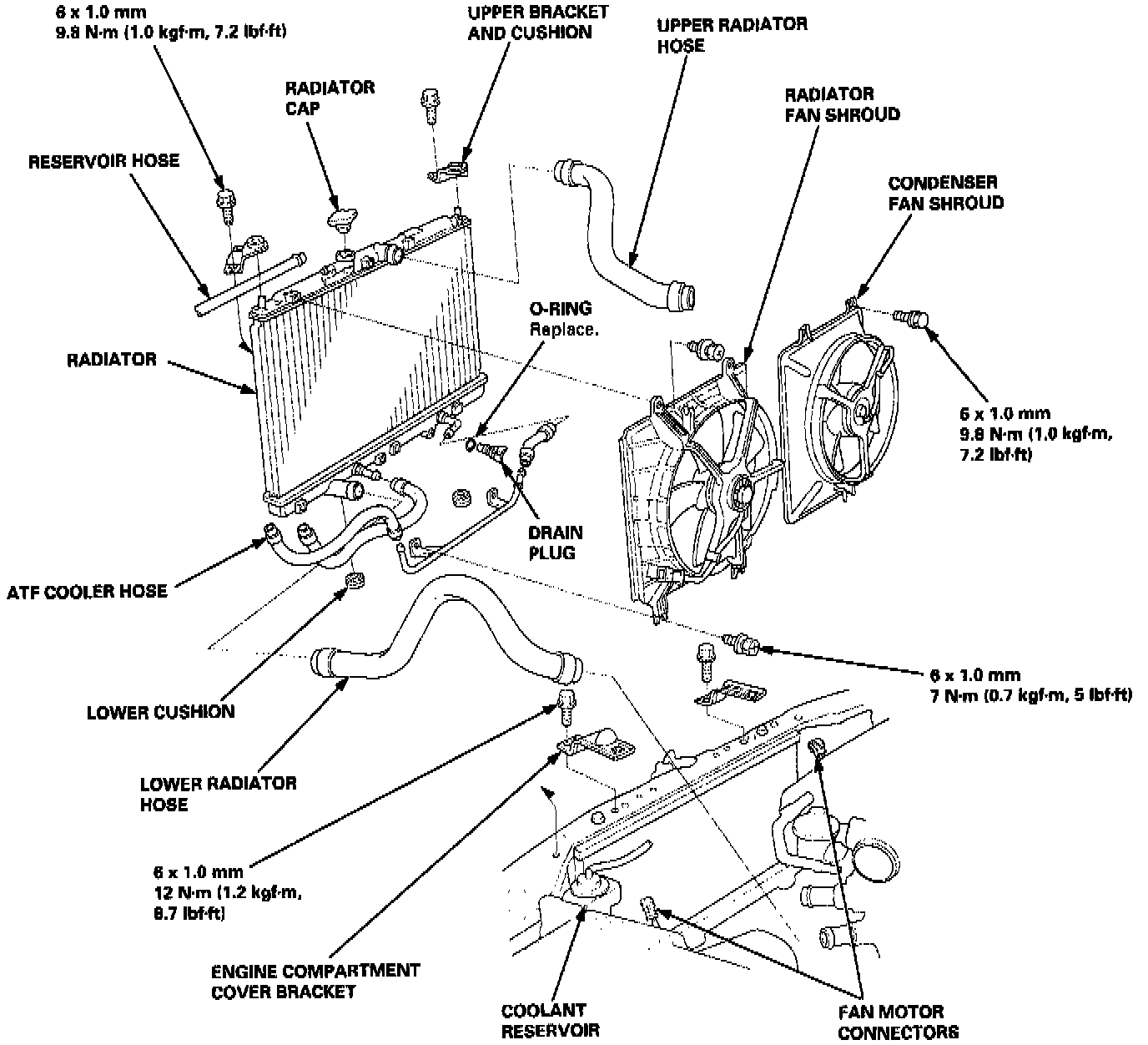

REPLACEMENT
1. Drain the engine coolant.
2. Remove the front engine compartment cover.
3. Remove the upper and lower radiator hoses, and Automatic Transmission Fluid (ATF) cooler hoses.
4. Disconnect the fan motor connectors.
5. Remove the engine compartment cover brackets and the radiator upper brackets, then pull up the radiator.
6. Remove the fan shroud assemblies and other parts from the radiator.
Install the radiator in the reverse order of removal.

NOTE:
- Set the upper and lower cushions securely.
- Fill the radiator with engine coolant and bleed the air.
