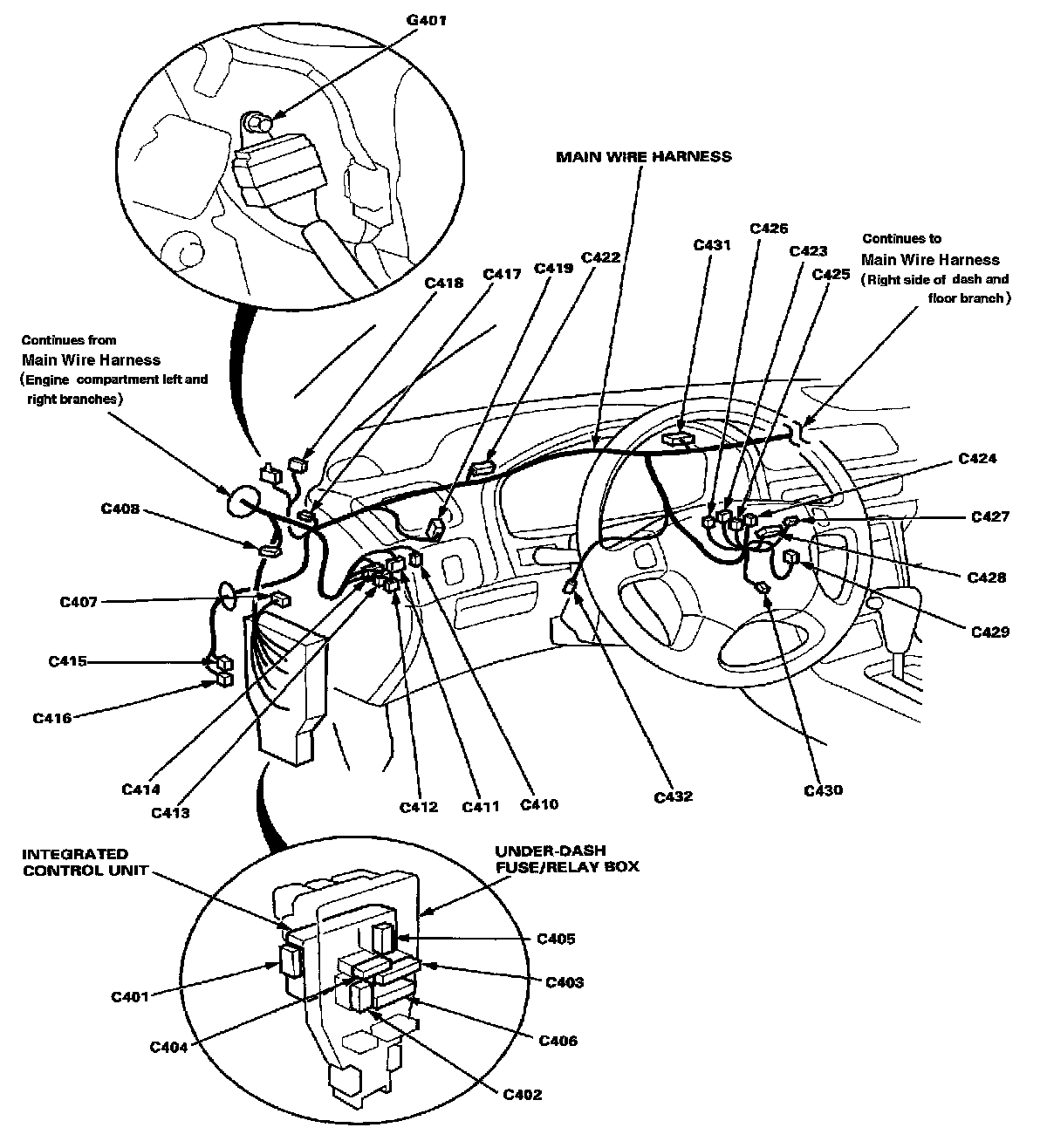

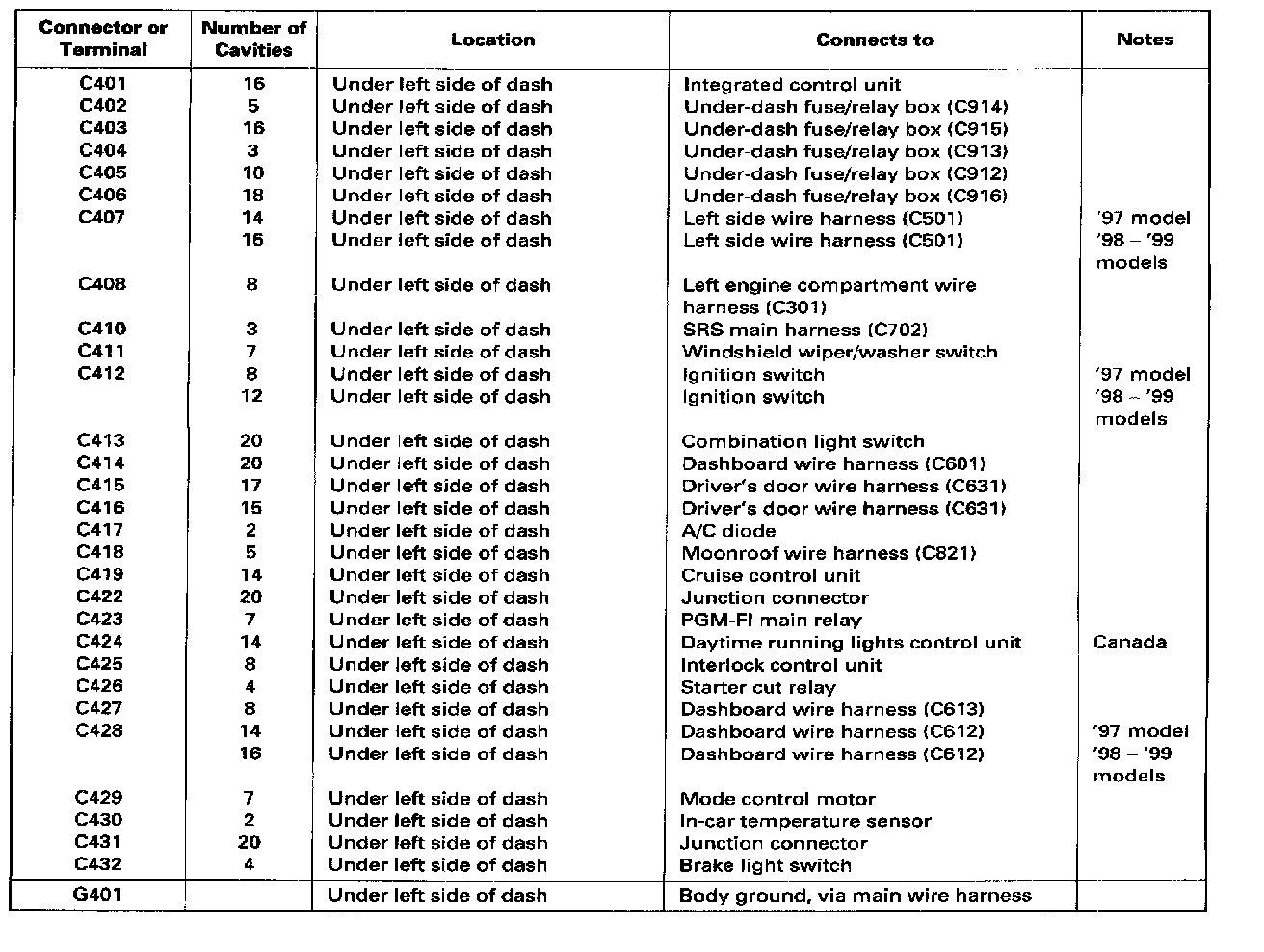

Main Wire Harness (Left Side of Dash and Floor Branch)
Main Wire Harness (Left Side of Dash and Floor Branch)
