Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows and Glass >> Windows >> Wiring Diagrams >> Passenger's Door

Passenger's Door

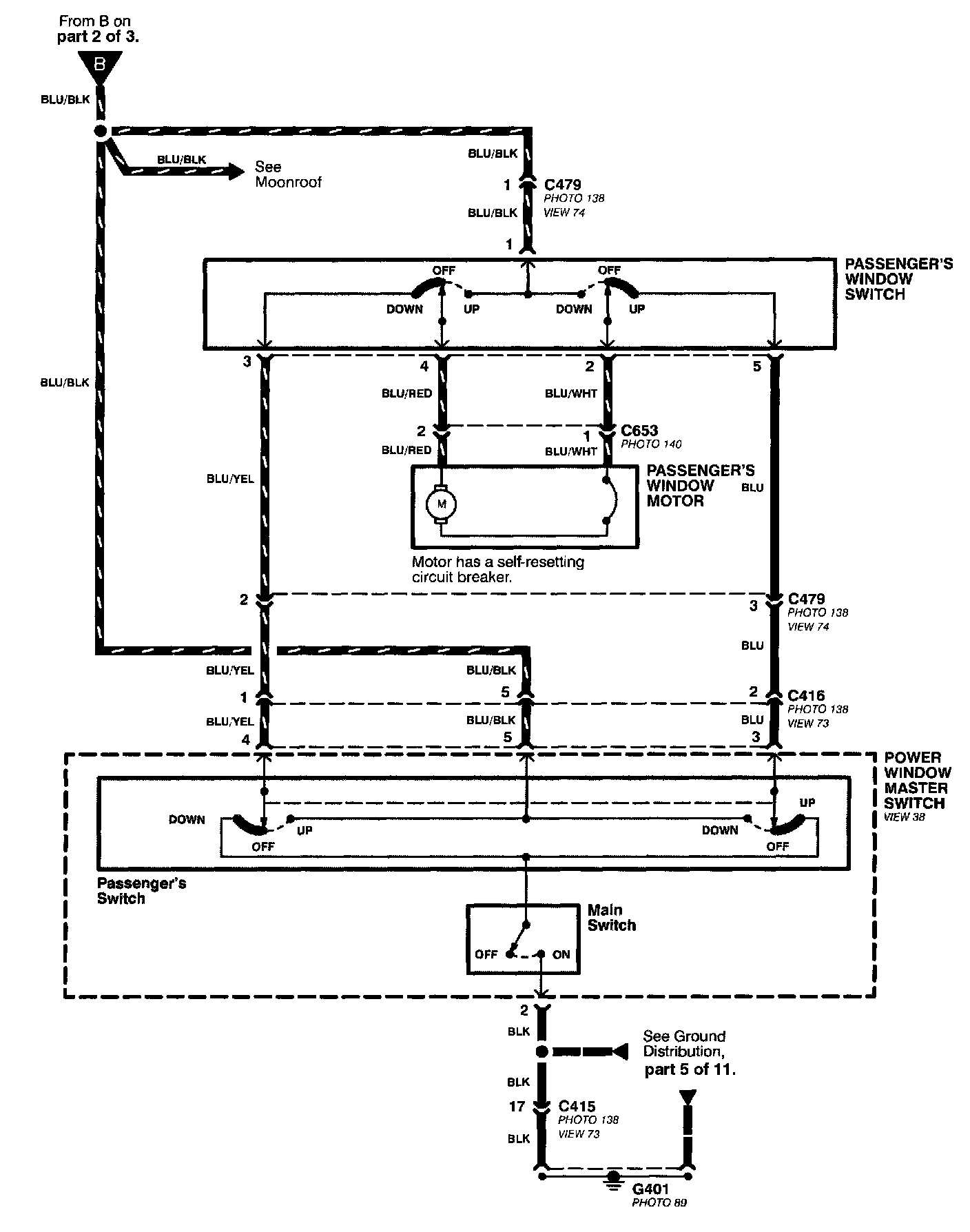

Power Windows (Part 3 Of 3):
