Home >> Acura >> 1999 >> CL V6-3.0L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> System Diagram >> Headlights >> USA

USA

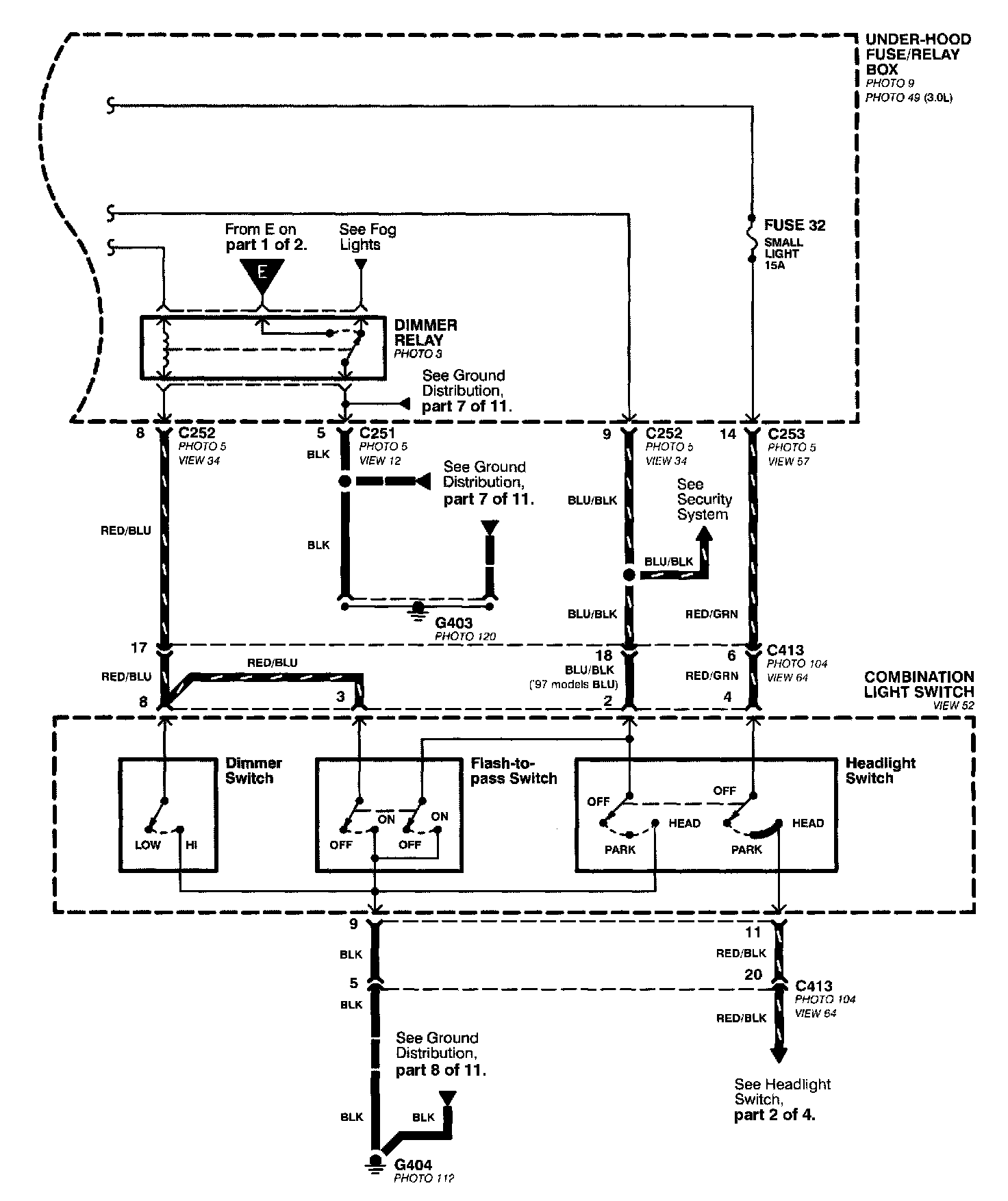

Headlights-USA (Part 1 Of 2):

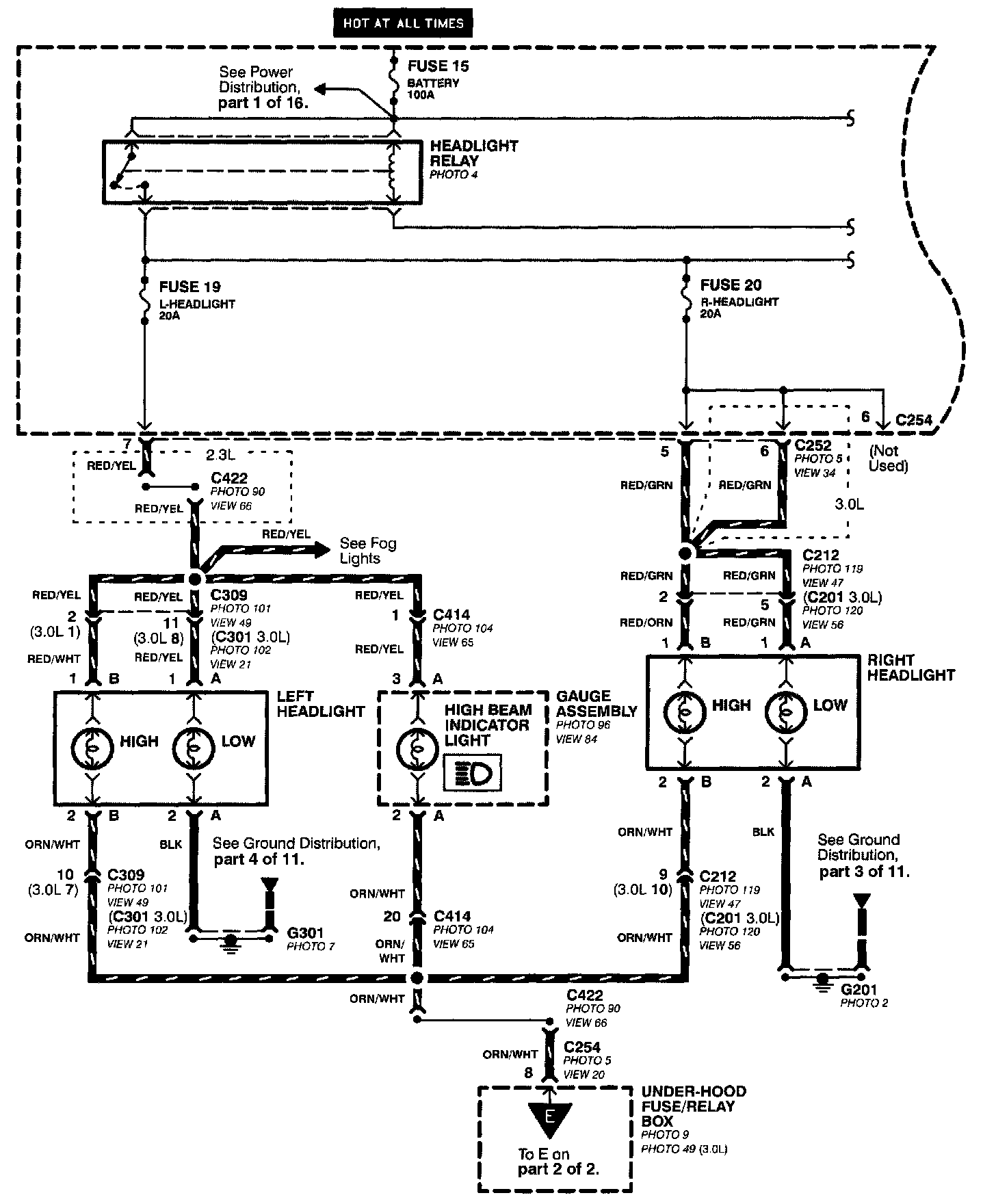

Headlights-USA (Part 2 Of 2):
